Application fields: Ventilators, oxygen generators, nebulizers, flat panel detectors, displays, scanners and other medical equipment

Product features:

▪️ medical and I.T.E. safety certification

▪️ complies with IEC 60601-1 (Safety standard for medical electrical equipment), and is equipped with leakage prevention, short circuit prevention and isolation protection

▪️2 MOPP isolation protection

▪️ Contact battery ≤100μA to avoid interference with sensitive medical equipment

▪️ level 6 energy efficiency

▪️ standby power consumption ≤0.15W

▪️5V/9V/12V/15V/20V output, up to 60W

▪️ working altitude: 5,000 meters

▪️ complies with the PD3.0 fast charging protocol

Interface and output specifications

Output power: 60W (such as 20V/3A, 15V/4A, 12V/5A, etc.

Interface type:

USB-C (PD protocol, highly versatile)

What's the difference between desktop and wall-mounted models?

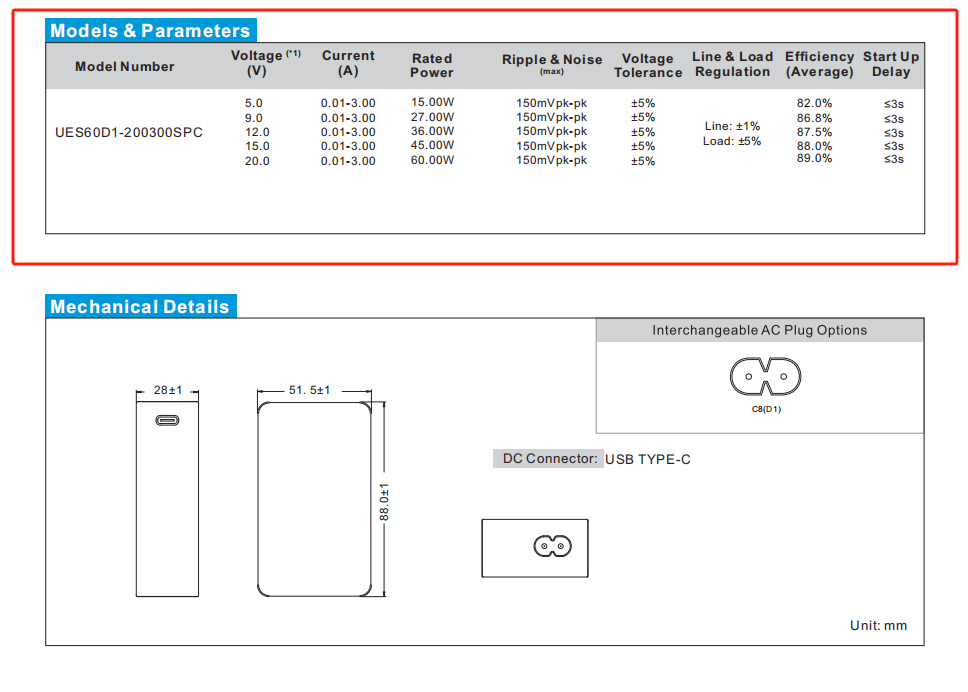

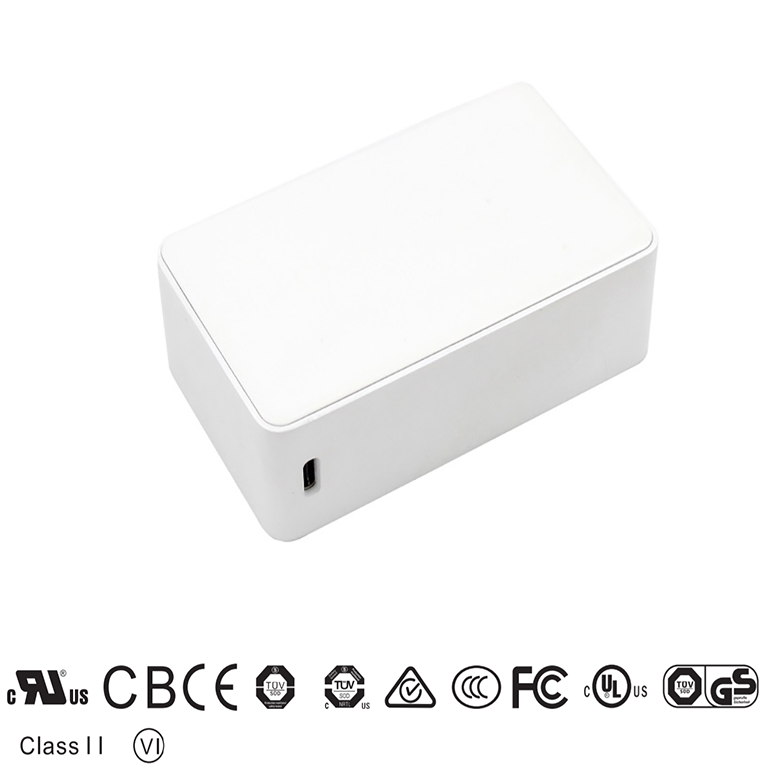

Desktop type: Placed flat on the desktop or cabinet shelf, requires an independent flat space, can be moved freely, but needs to be connected to a power cord

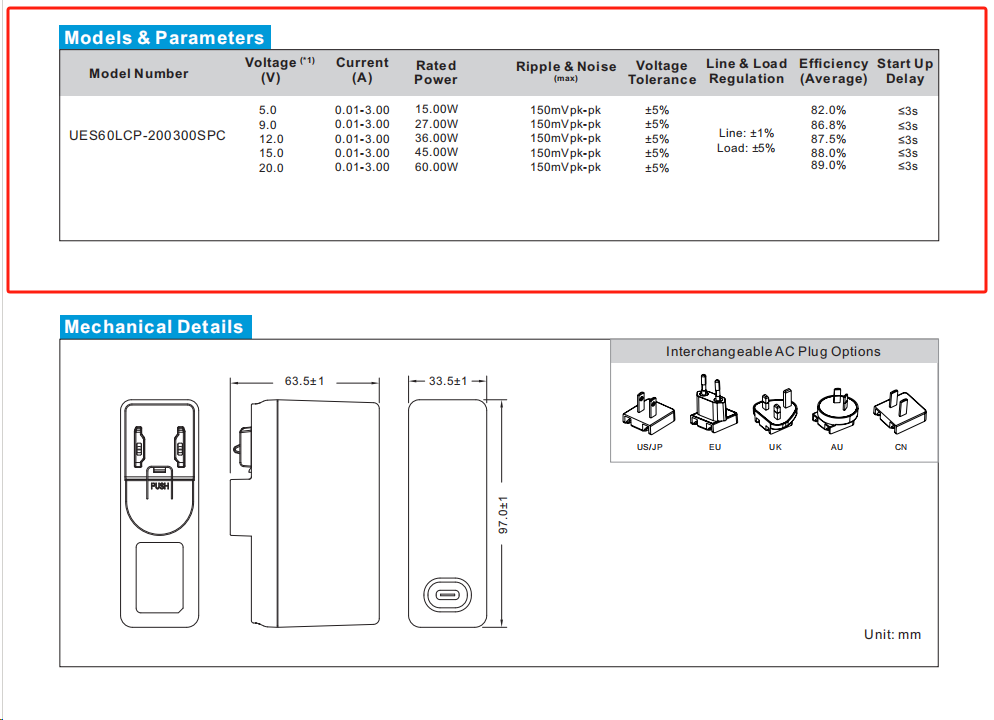

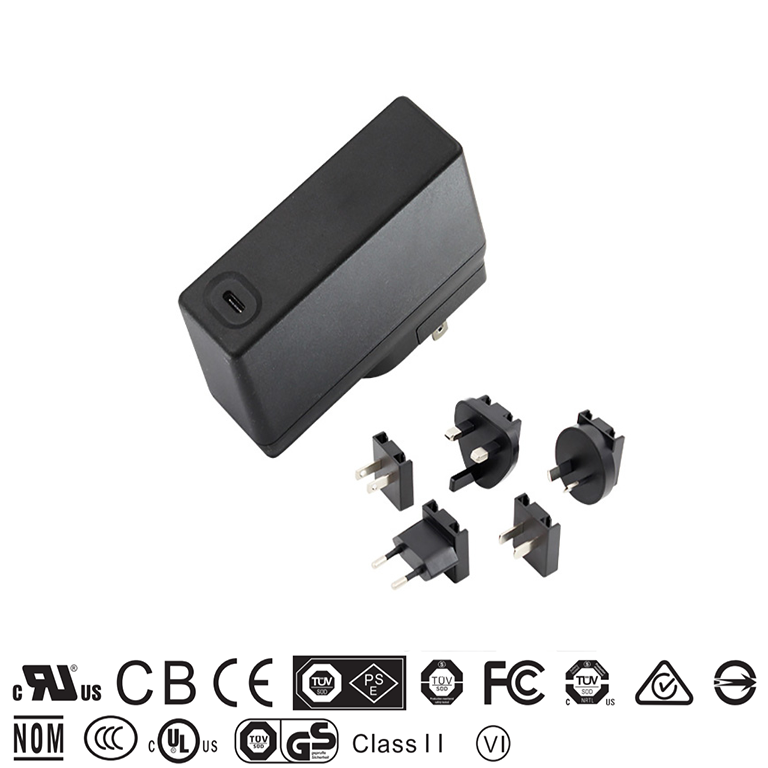

Wall-plug type: Directly plug into the wall socket (similar to a charger), closely against the wall, almost taking up no extra space, fixed position, and needs to be re-plugged and unplugged when moved

Why choose medical-grade charging heads?

Insulation and leakage prevention: Medical-grade charging heads must comply with medical electrical equipment standards (such as IEC 60601-1), feature double insulation (Class II) or reinforced insulation design, and have extremely low leakage current (usually < 100μA) to prevent patients or medical staff from being injured by leakage.

Electric shock protection: The interface and housing design are more stringent to prevent accidental contact with live parts and reduce the risk of electric shock.

Excellent electromagnetic compatibility (EMC)

Strong anti-interference ability: Medical equipment is sensitive to electromagnetic interference. Medical charging heads must pass EMC tests to ensure they do not interfere with the normal operation of precision equipment such as electrocardiogram machines and ventilators.

Low radiation: Reduce electromagnetic pollution to other electronic devices.

Adaptability to special environments

Disinfection tolerance: The shell material may need to withstand common medical disinfection methods such as alcohol and ultraviolet rays.

Moisture-proof and anti-corrosion: Suitable for operating rooms, icus and other environments that may come into contact with liquids or have high humidity.

————————————————————————————————————————————————————————————————————————————

The UE ELECTRONIC products have passed the qualification certification of authoritative certification institutions in many countries and have complete test reports and quality certification documents. With its outstanding quality stability and excellent cost performance advantages, it has become the preferred choice for many industry customers. Meanwhile, the company has built its own EMC laboratory and offers free EMC testing services to customers!
