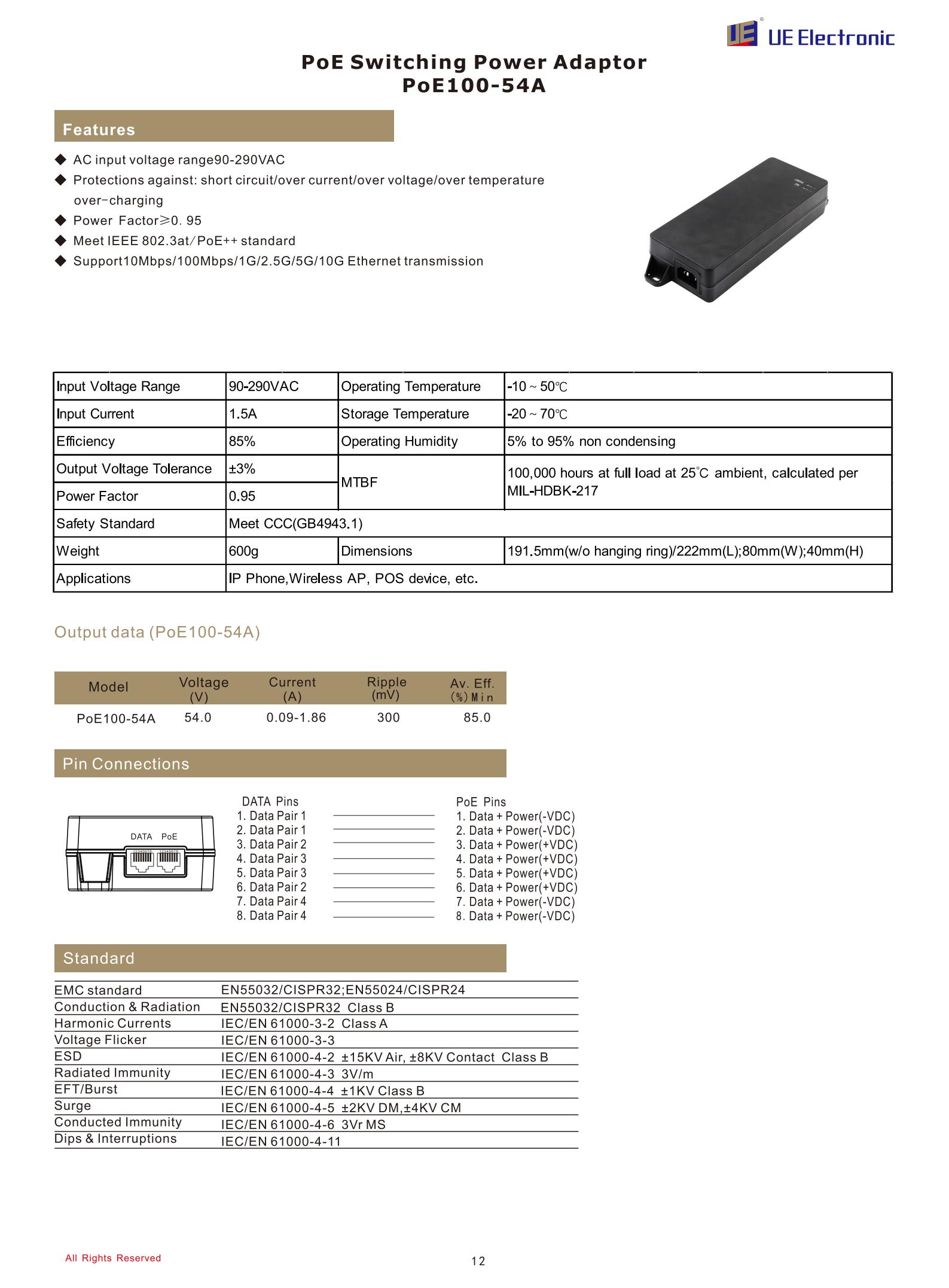

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| PoE100-54A | 54.0 | 0.09-1.86 | 300 | 85.0 |
| Others | ||||
| Input Voltage Range | 90-290VAC | |||
| Input Current | 1.5A | |||
| Efficiency | 85% | |||
| Output Voltage Tolerance | ±3% | |||
| Power Factor | 0.95 | |||
| Safety Standard | Meet CCC(GB4943.1) | |||
| Environmental | ||||
| Operating Temperature | -10℃~50℃ | |||
| Storage Temperature | -20℃~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weight | 600g | |||
| Dimensions | 191.5(L)/222(L) 80(W) 40(H)mm | |||
| MTBF | 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||

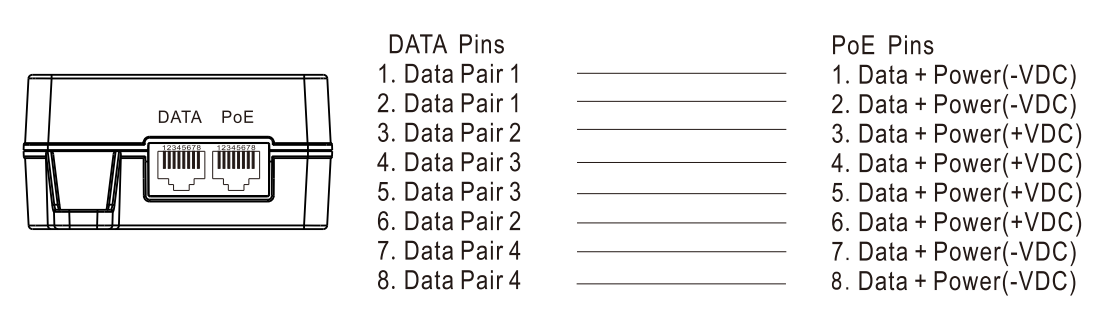

Pin Connections
