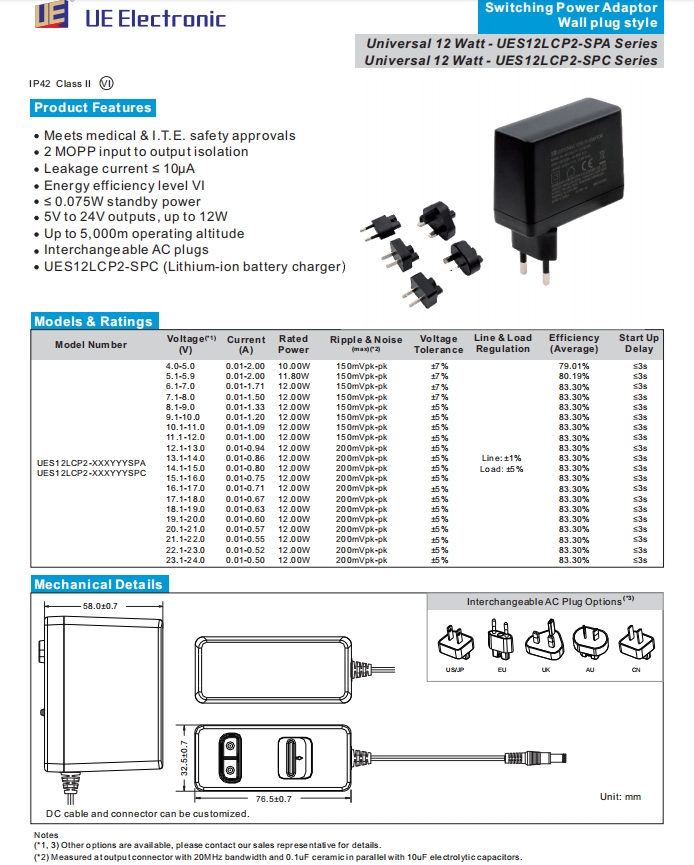

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES12LCP2-SPA | 4.0-5.0 5.1-5.9 6.1-7.0 7.1-8.0 8.1-9.0 9.1-10.0 10.1-11.0 11.1-12.0 12.1-13.0 13.1-14.0 14.1-15.0 15.1-16.0 16.1-17.0 17.1-18.0 18.1-19.0 19.1-20.0 20.1-21.0 21.1-22.0 22.1-23.0 23.1-24.0 | 0.01-2.00 0.01-2.00 0.01-1.71 0.01-1.50 0.01-1.33 0.01-1.20 0.01-1.09 0.01-1.00 0.01-0.94 0.01-0.86 0.01-0.80 0.01-0.75 0.01-0.71 0.01-0.67 0.01-0.63 0.01-0.60 0.01-0.57 0.01-0.55 0.01-0.52 0.01-0.50 | 10.00W 11.80W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12.00W 12 .00W | 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk | ±7% ±7% ±7% ±7% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load:±5% | 79.01% 80.19% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% 83.30% | ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 45℃ | Dimensions | 76.5(L) 32.5(W) 58.0(H)mm | |||||||||||||
| Storage Temperature | -20℃ to 60℃ | Weight | 130g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 120-200% rated output power, auto recovery 120-150% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1/IEC60601-1-11 | IEC62368-1 | ||||||||||||||
| TüV-SUD/ Mark | EN60601-1/EN60601-1-11 | EN62368-1 | ||||||||||||||
| UL | ANSI/AAMI ES60601-1/60601-1-11 CAN/CSA C22.2 NO. 60601-1 | - | ||||||||||||||
| TüV-SUD/ GS | - | EN62368-1 | ||||||||||||||
| RCM | - | AS/NZS 62368 | ||||||||||||||
| CE | - | EN62368 | ||||||||||||||
| CCC | - | GB4943.1 | ||||||||||||||
| PSE | - | J62368-1 | ||||||||||||||
| KC | - | K60950-1 | ||||||||||||||
| FCC | - | FCC PART 15 | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line (DM) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
