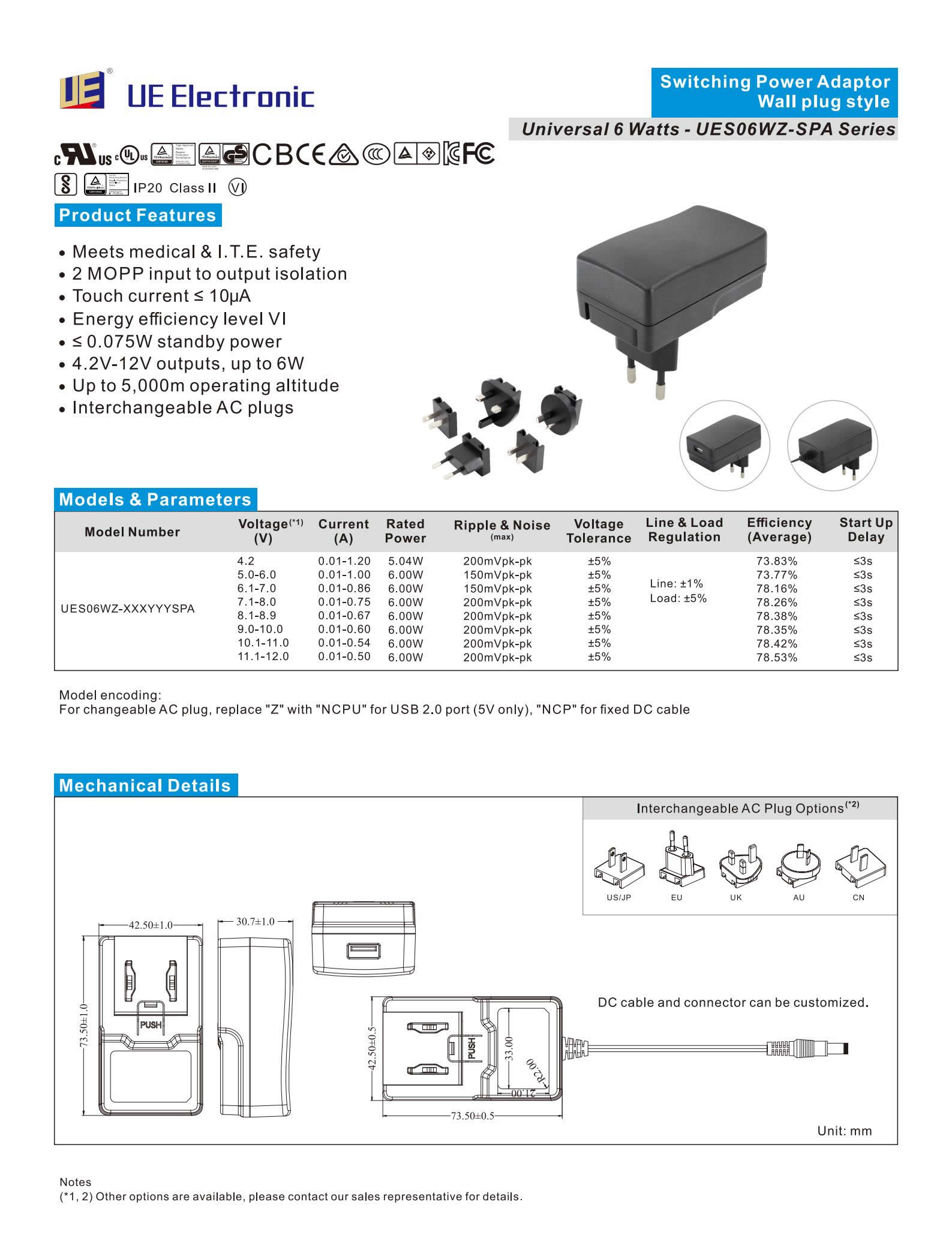

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
UE05LZ2-XXXYYYSPA | 4.2 | 0.01-1.20 | 5.04W | 200mVpk-pk | ±5% |
| 5.0-6.0 | 0.01-1.00 | 6.00W | 150mVpk-pk | ±5% | |
| 6.1-7.0 | 0.01-0.86 | 6.00W | 150mVpk-pk | ±5% | |
| 7.1-8.0 | 0.01-0.75 | 6.00W | 200mVpk-pk | ±5% | |
| 8.1-8.9 | 0.01-0.67 | 6.00W | 200mVpk-pk | ±5% | |
| 9.0-10.0 | 0.01-0.60 | 6.00W | 200mVpk-pk | ±5% | |
| 10.1-11.0 | 0.01-0.54 | 6.00W | 200mVpk-pk | ±5% | |
| 11.1-12.0 | 0.01-0.50 | 6.00W | 200mVpk-pk | ±5% | |

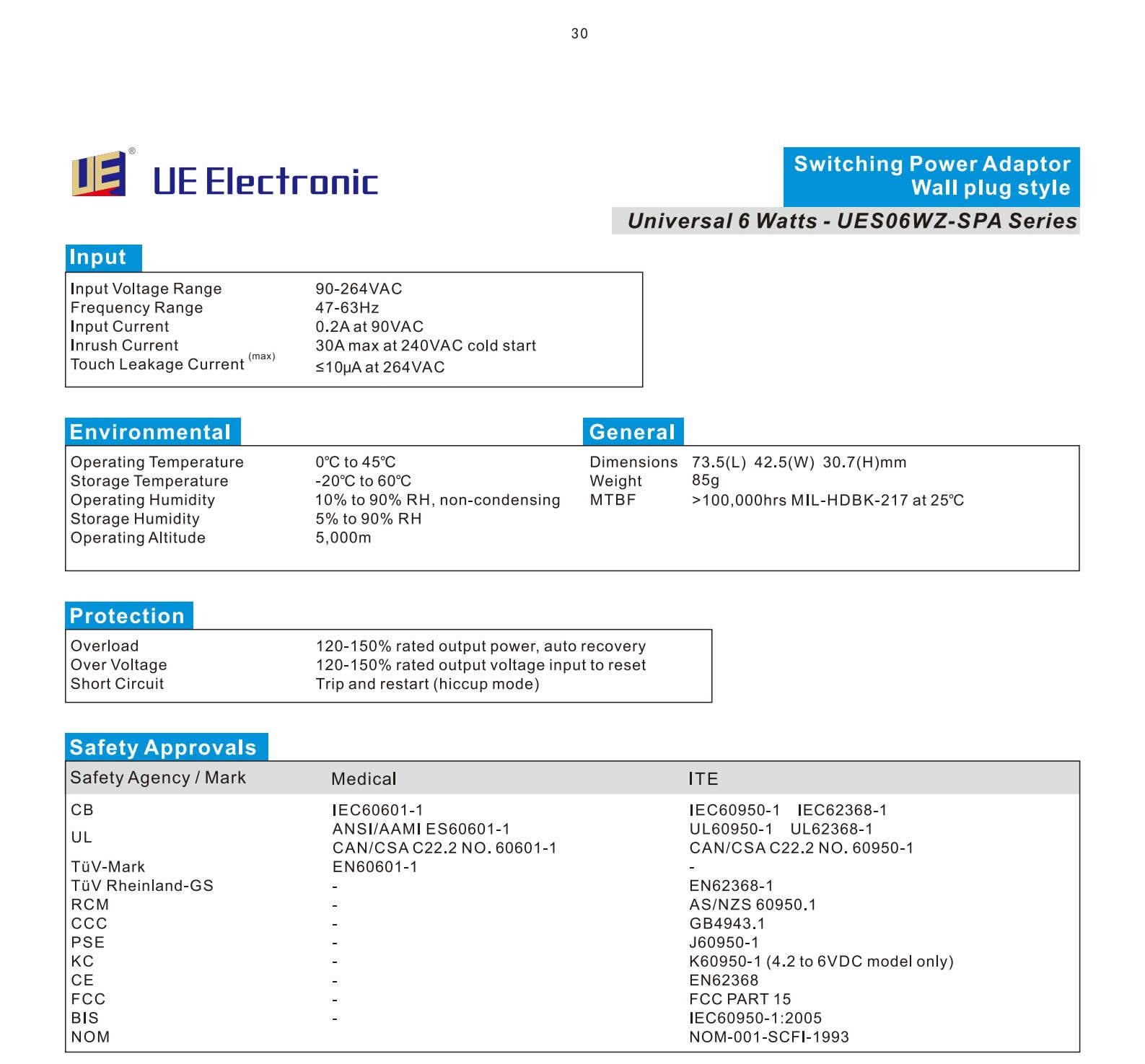

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 0.2A at 90VAC | ||||
| Inrush Current | 30A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤10μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 45 ℃ | ||||
| Storage Temperature | -20 ℃ to 60 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 73.5(L) 42.5(W) 30.7(H)mm | ||||
| Weight | 85g | ||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | ||||
Mechanical Details
