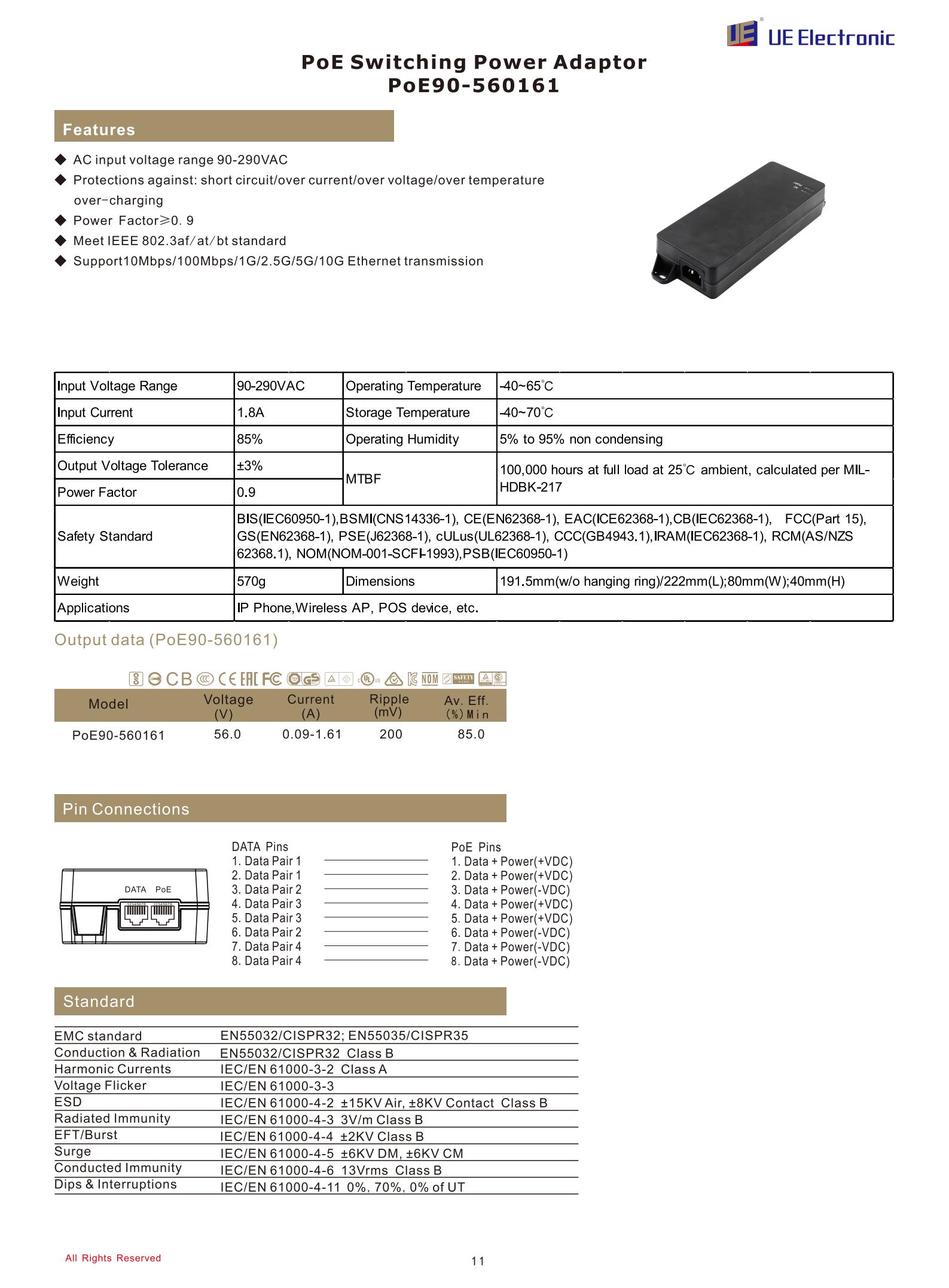

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| PoE90-560161 | 56.0 | 0.09-1.61 | 200 | 85.0 |
| Others | ||||
| Input Voltage Range | 90-290VAC | |||
| Input Current | 1.8A | |||
| Efficiency | 85% | |||
| Output Voltage Tolerance | ±3% | |||
| Power Factor | 0.9 | |||
| Safety Standard | BIS(IEC60950-1), BSMI(CNS14336-1), CE(EN62368-1), EAC(ICE62368-1), CB(IEC62368-1), FCC(Part 15), GS(EM62368-1), PSE(J62368-1), cULus(UL62368-1), CCC(GB4943.1), IRAM(IEC62368-1), RCM(AS/NZS62368.1), NOM(NOM-001-SCFI-1993), PSB(IEC60950-1) | |||
| Environmental | ||||
| Operating Temperature | -40~65℃ | |||
| Storage Temperature | -40~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | 570g | |||
| Dimensions | 191.5(L)/222(L) 80(W) 40(H) | |||
| MTBF | 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||

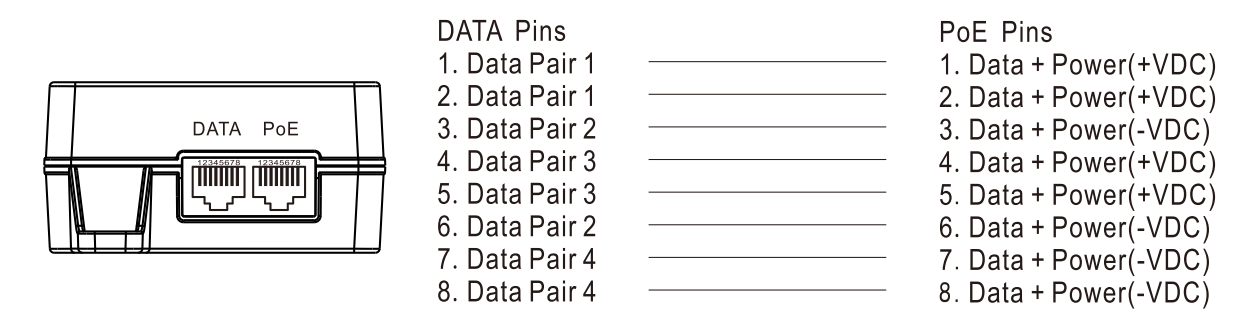

Pin Connections
