| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| PoE100-54A | 54.0/48.0 | 0.01-1.00 | 500 | 87.77/88.0 |
| Others | ||||
| Input Voltage Range | 90-264VAC | |||
| Input Current | 1.5A MAX | |||
| Output Voltage Tolerance | ±5% | |||
| Safety Standard | CE(EN62368-1) | |||
| Environmental | ||||
| Operating Temperature | 0~40℃ | |||
| Storage Temperature | -30~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weight | 205g | |||
| Dimensions | 172.0(L) 62.0(W) 30.6(H)mm | |||
| MTBF | 500,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||

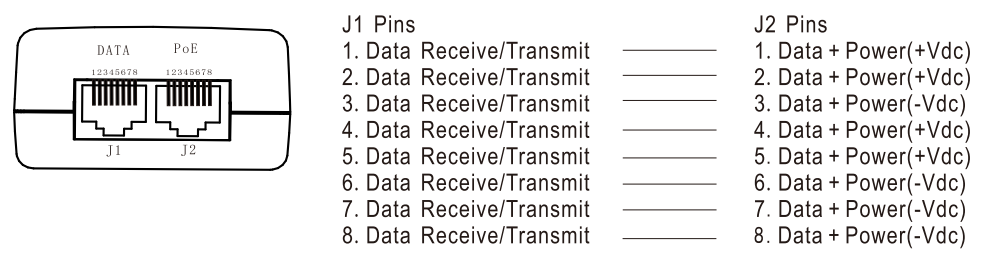

Pin Connections
