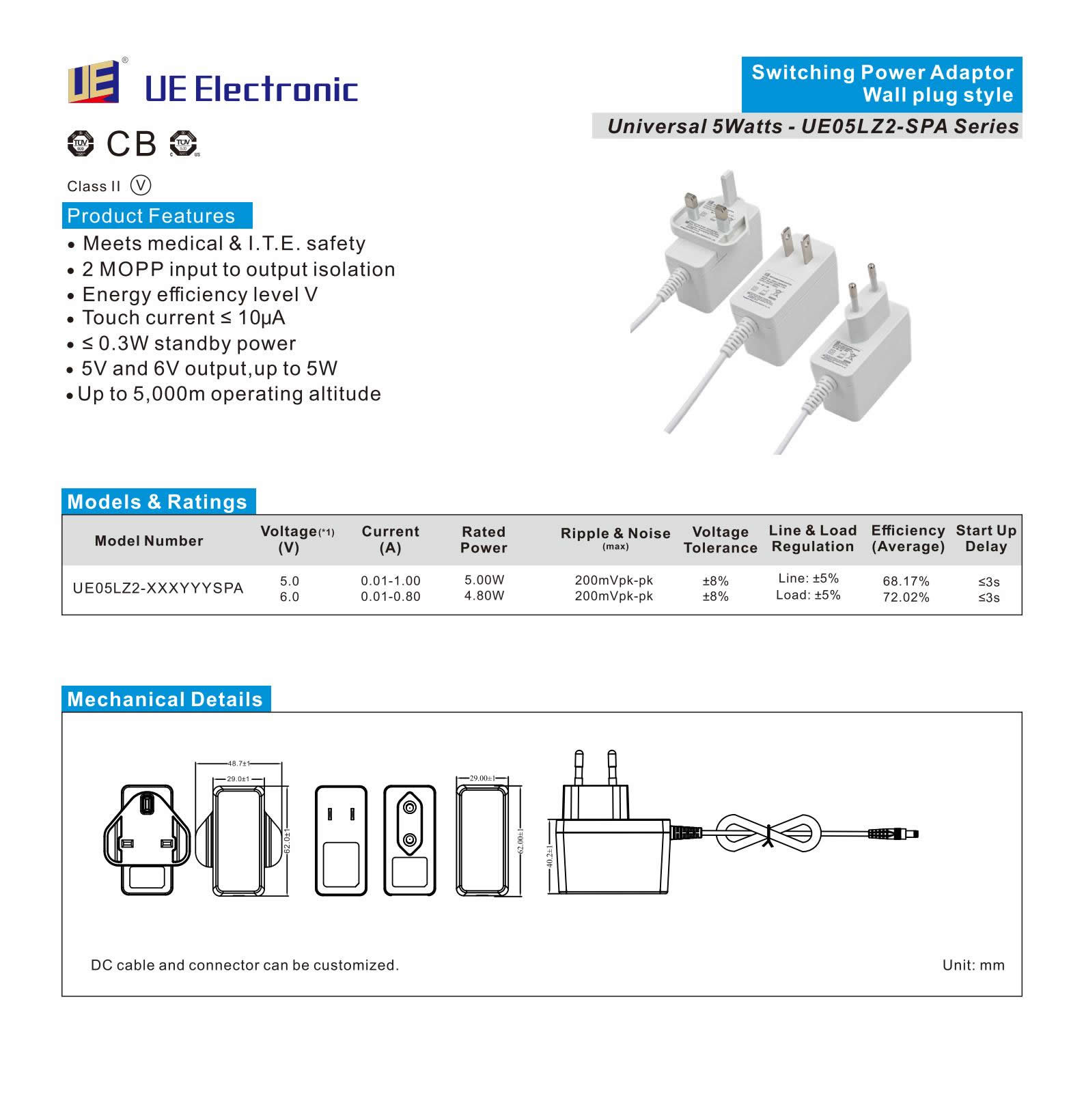

| Model and Ratings | |||||
Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
| UE05LZ2-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVpk-pk | ±8% |
| 6.0 | 0.01-0.80 | 4.80W | 200mVpk-pk | ±8% | |

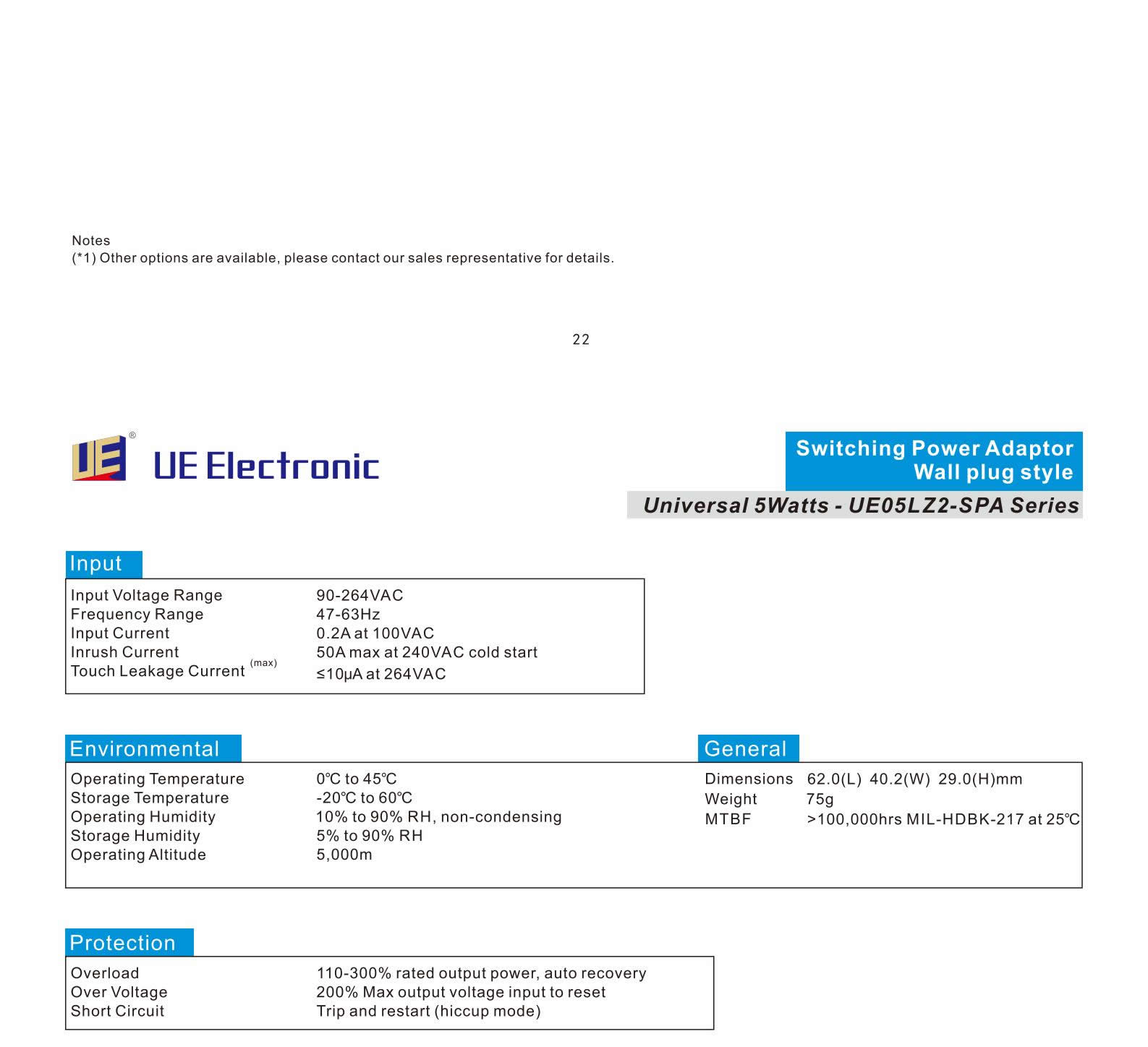

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 0.2A at 100VAC | ||||
| Inrush Current | 50A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤10μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 45 ℃ | ||||
| Storage Temperature | -20 ℃ to 60 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 62.0(L) 40.2(W) 29.0(H)mm | ||||
| Weight | 75g | ||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | ||||

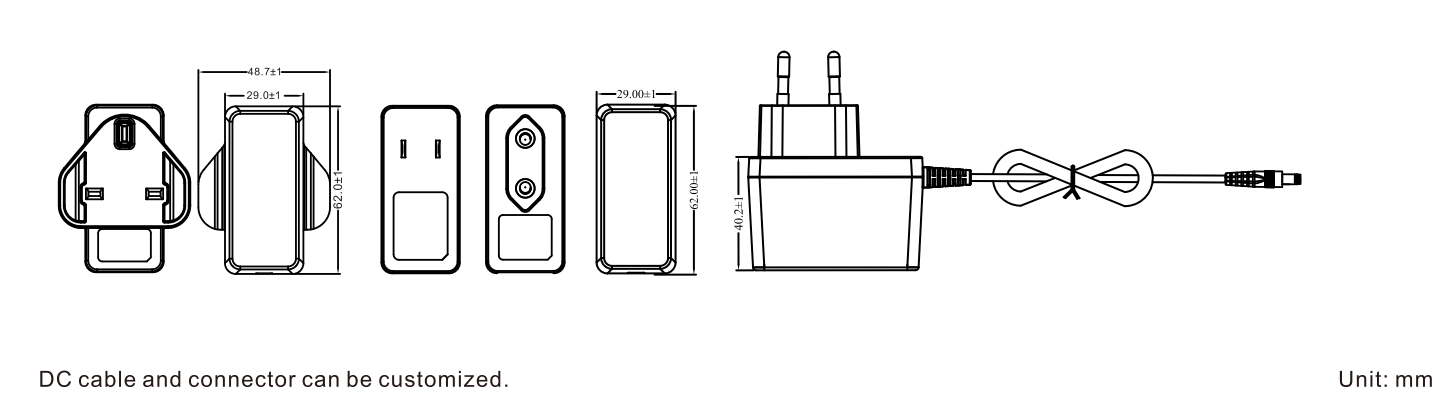

Mechanical Details
