| Model and Ratings | ||||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance | |
UE05LZ2-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVPK-PK | ±5% | |

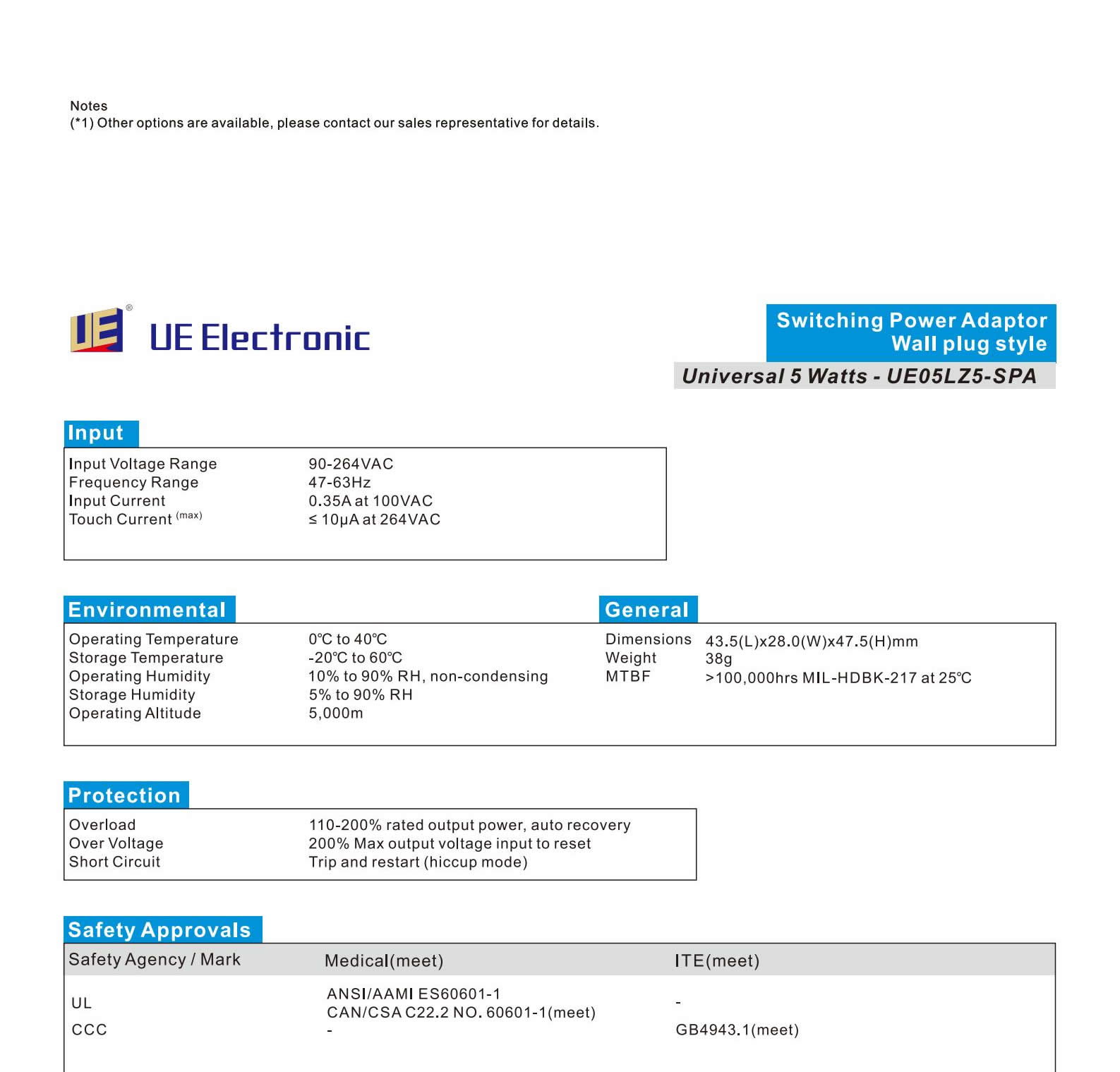

| Input | ||||||
| Input Voltage Range | 90-264VAC | |||||
| Frequency Range | 47-63Hz | |||||
| Input Current | 0.35A at 100VAC | |||||
| Touch Leakage Current (max) | ≤10μA at 264VAC | |||||
| Environmental | ||||||
| Operating Temperature | 0 ℃ to 40 ℃ | |||||
| Storage Temperature | -20 ℃ to 60 ℃ | |||||
| Operating Humidity | 10% to 90% RH, non-condensing | |||||
| Storage Humidity | 5% to 90% RH | |||||
| Operating Altitude | 5,000m | |||||
| General | ||||||
| Dimensions | 43.5(L) 28.0(W) 47.5(H)mm | |||||
| Weight | 38g | |||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | |||||

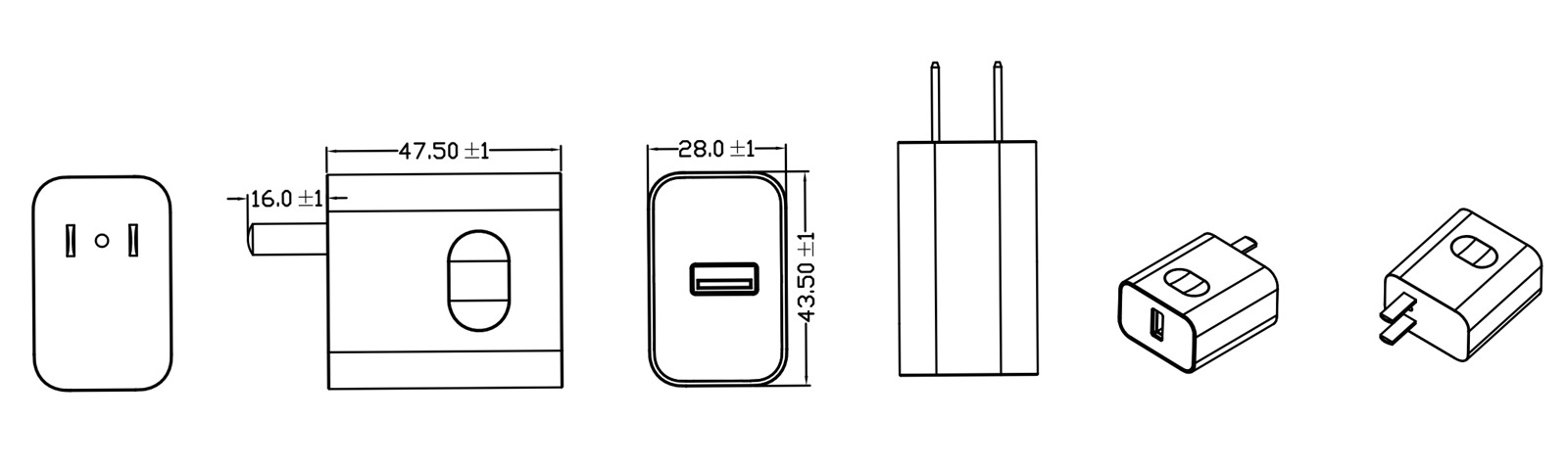

Mechanical Details
