UES12LCP/Medical Power Adapter 12W

● Meets medical&I.T.E.& LED driver safety

● 2 MOPP input to output isolation

● Touch current≤10μA

● Energy efficiency level VI

● ≤0.075W standby power

● 4V-24V outputs, up to 12W

● Up to 5,000m operating altitude

● Interchangeable AC plugs

● UES12LCP-SPC(Lithium-ion battery charger) with LED indicator

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.


Model UES12LCP-SPA/SPC Power 12W
Current 0.01-2.00A Output 4.0-24.0V
Size 76(L) 30.3(W) 48.2(H)mm
Contact us


Model and Ratings
Model
Voltage(V)
Current(A)
Rated power
Ripple & Noise(max)
Voltage Tolerance








UES12LCP-XXXYYYSPA
UES12LCP-XXXYYYSPA-op
UES12LCP-XXXYYYSPC
UES12LCP-XXXYYYSPC-OP
4.0-5.00.01-2.0010.00W
150mVpk-pk
±7%
5.1-6.00.01-2.0012.00W150mVpk-pk±7%
6.1-7.00.01-1.7111.97W150mVpk-pk±7%
7.1-8.00.01-1.5012.00W150mVpk-pk±7%
8.1-9.00.01-1.3311.97W150mVpk-pk±5%
9.1-10.00.01-1.2012.00W150mVpk-pk±5%
10.1-11.00.01-1.0911.99W150mVpk-pk±5%
11.1-12.00.01-1.0012.00W150mVpk-pk±5%
12.1-13.00.01-0.9412.22W200mVpk-pk±5%
13.1-14.00.01-0.8612.04W200mVpk-pk±5%
14.1-15.00.01-0.8012.00W200mVpk-pk±5%
15.1-16.00.01-0.7512.00W200mVpk-pk±5%
16.1-17.00.01-0.7112.07W200mVpk-pk±5%
17.1-18.00.01-0.6712.06W200mVpk-pk±5%
18.1-19.00.01-0.6311.97W200mVpk-pk±5%
19.1-20.00.01-0.6012.00W200mVpk-pk±5%
20.1-21.00.01-0.5711.97W200mVpk-pk±5%
21.1-22.00.01-0.5512.10W200mVpk-pk±5%
22.1-23.00.01-0.5211.96W200mVpk-pk±5%
23.1-24.00.01-0.5012.00W200mVpk-pk±5%

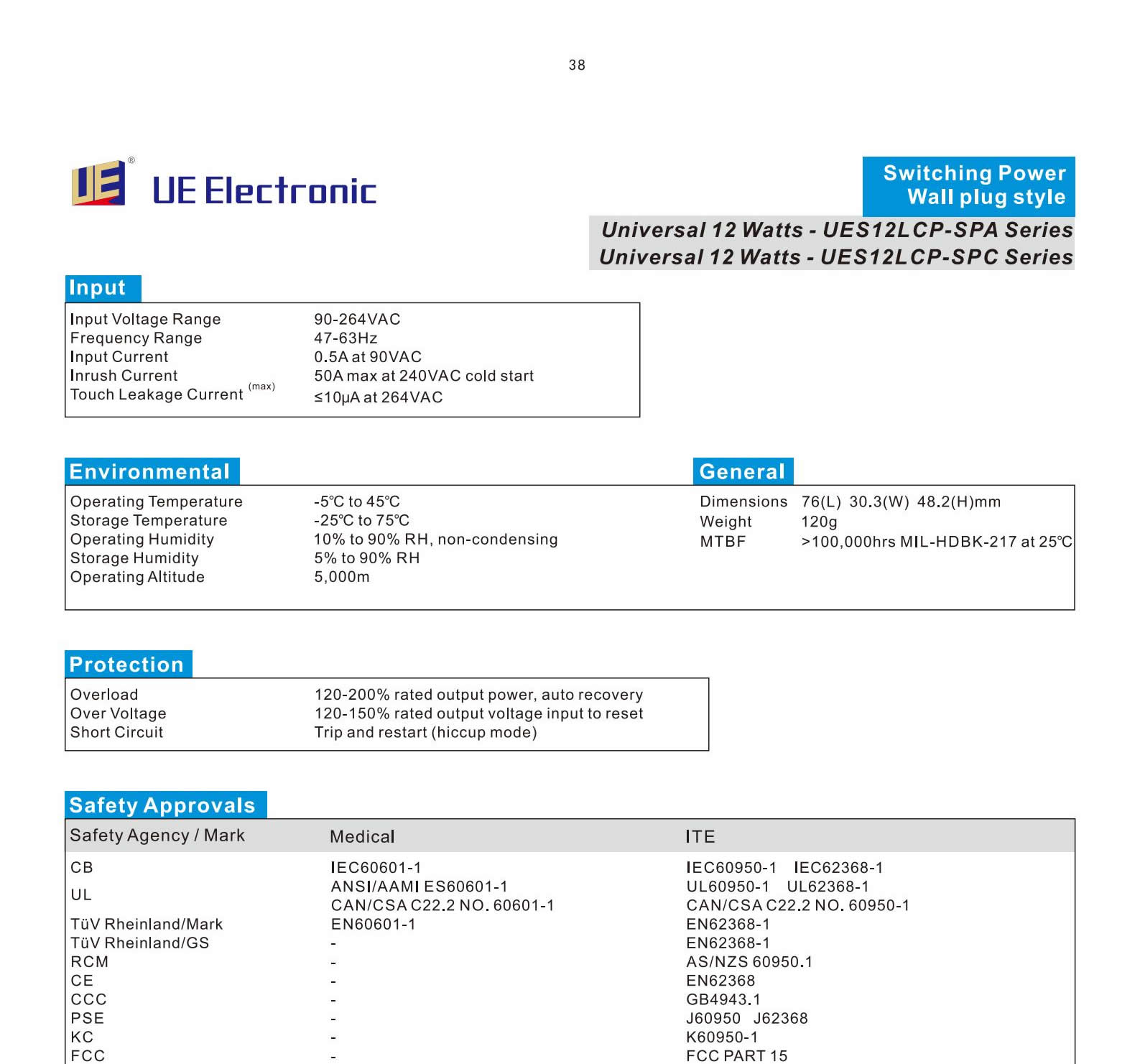

Input
Input Voltage Range
90-264VAC
Frequency Range
47-63Hz
Input Current
0.5A at 90VAC
Inrush Current
50A max at 240VAC cold start
Touch Leakage Current (max)
≤10μA at 264VAC
Environmental
Operating Temperature
-5℃ to 45 ℃
Storage Temperature
-25 ℃ to 75℃
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
76(L) 30.3(W) 48.2(H)mm
Weight
120g
MTBF
>100,000hrs MIL-HDBK-217 at 25℃

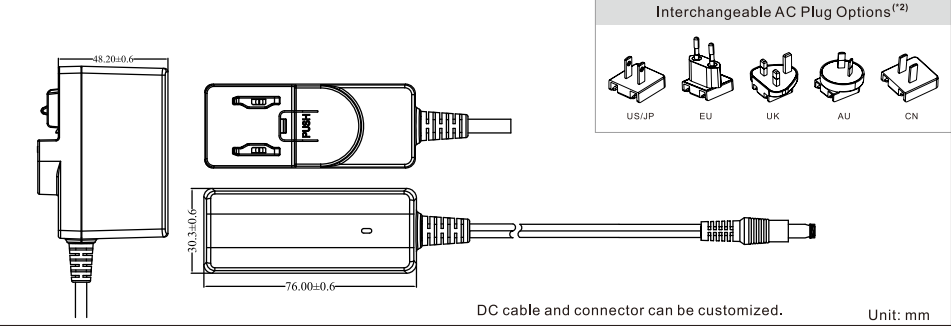

Mechanical Details
