UES24LU2 /Medical Power Adapter 24W

● Medical&I.T.E. safety approvals

● 2 MOPP input to output isolation

● Touch current:≤100μA

● Energy efficiency level VI

● ≤0.075W standby power

● 6.1V to 52V outputs, up to 24W

● Up to 5,000m operating altitude

● ULAC plugs

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.


Model UES24LU2-SPA Power 24W
Current 0.01-3.00A Output 6.1-52.0V
Size 88(L) 30(W) 57(H)mm
Contact us

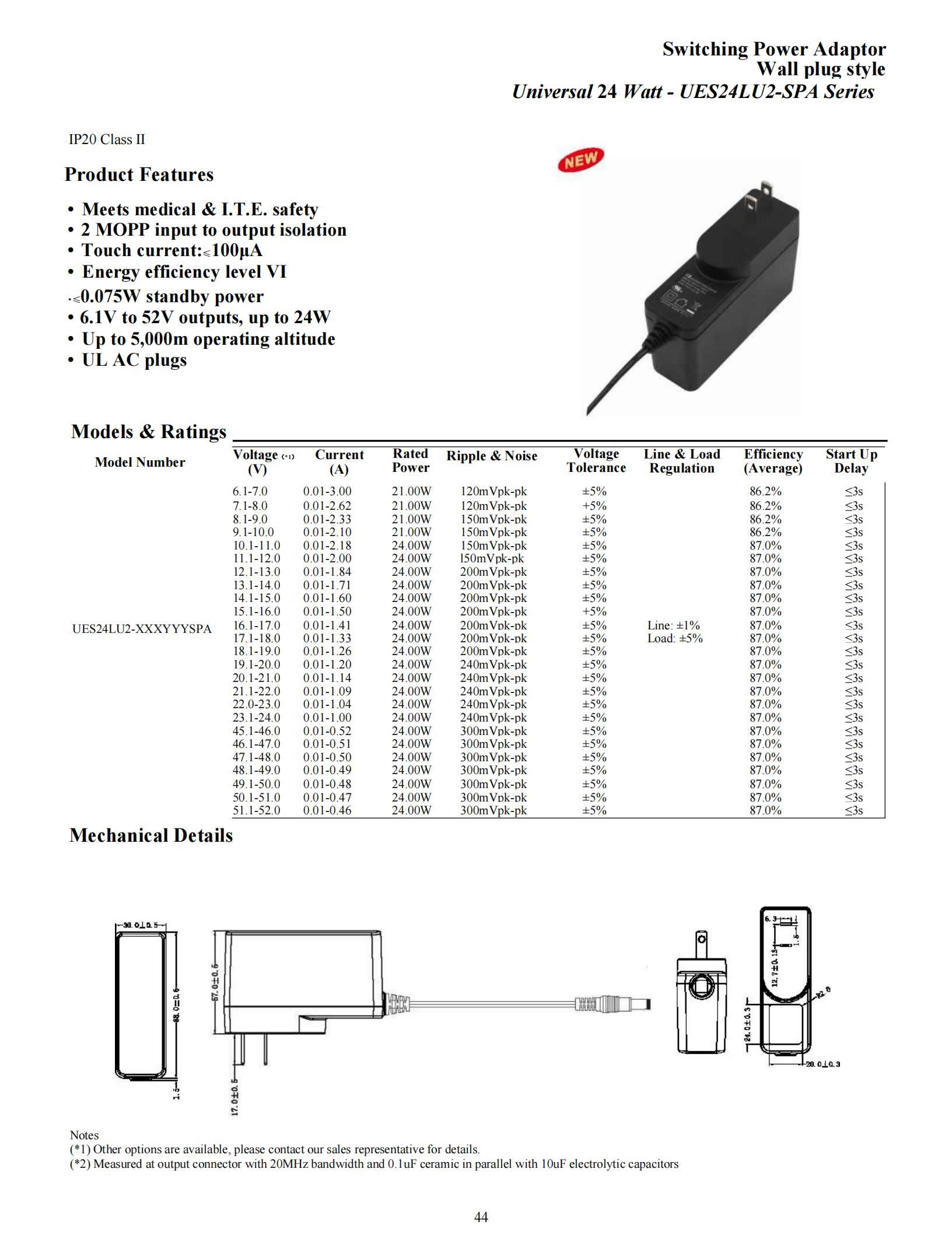

Model and Ratings
Model
Voltage（V）
Current（A）
Rated Power
Ripple & Noise(max)
Voltage Tolerance
UES24LU2-XXXYYYSPA
6.1-7.00.01-3.0021.00W120mVpk-pk±5%
7.1-8.00.01-2.6221.00W120mVpk-pk
8.1-9.00.01-2.3321.00W150mVpk-pk
9.1-10.00.01-2.1021.00W150mVpk-pk
10.1-11.00.01-2.1824.00W150mVpk-pk
11.1-12.00.01-2.0024.00W150mVpk-pk
12.1-13.00.01-1.8424.00W200mVpk-pk
13.1-14.00.01-1.7124.00W200mVpk-pk
14,1-15,00.01-1.6024.00W200mVpk-pk
15.1-16.00.01-1.5024.00W200mVpk-pk
16.1-17.00.01-1.4124.00W200mVpk-pk
17.1-18.00.01-1.3324.00W200mVpk-pk
18.1-19.00.01-1.2624.00W200mVpk-pk
19.1-20.00.01-1.2024.00W240mVpk-pk
20.1-21.00.01-1.1424.00W240mVpk-pk
21.1-22.00.01-1.0924.00W240mVpk-pk
22.0-23.00.01-1.0424.00W240mVpk-pk
23.1-24.00.01-1.0024.00W240mVpk-pk
45.1-46.00.01-0.5224.00W300mVpk-pk
46.1-47.00.01-0.5124.00W300mVpk-pk
47.1-48.00.01-0.5024.00W300mVpk-pk
48.1-49.00.01-0.4924.00W300mVpk-pk
49.1-50.00.01-0.4824.00W300mVpk-pk
50.1-51.00.01-0.4724.00W300mVpk-pk
51.0-52.00.01-0.4624.00W300mVpk-pk

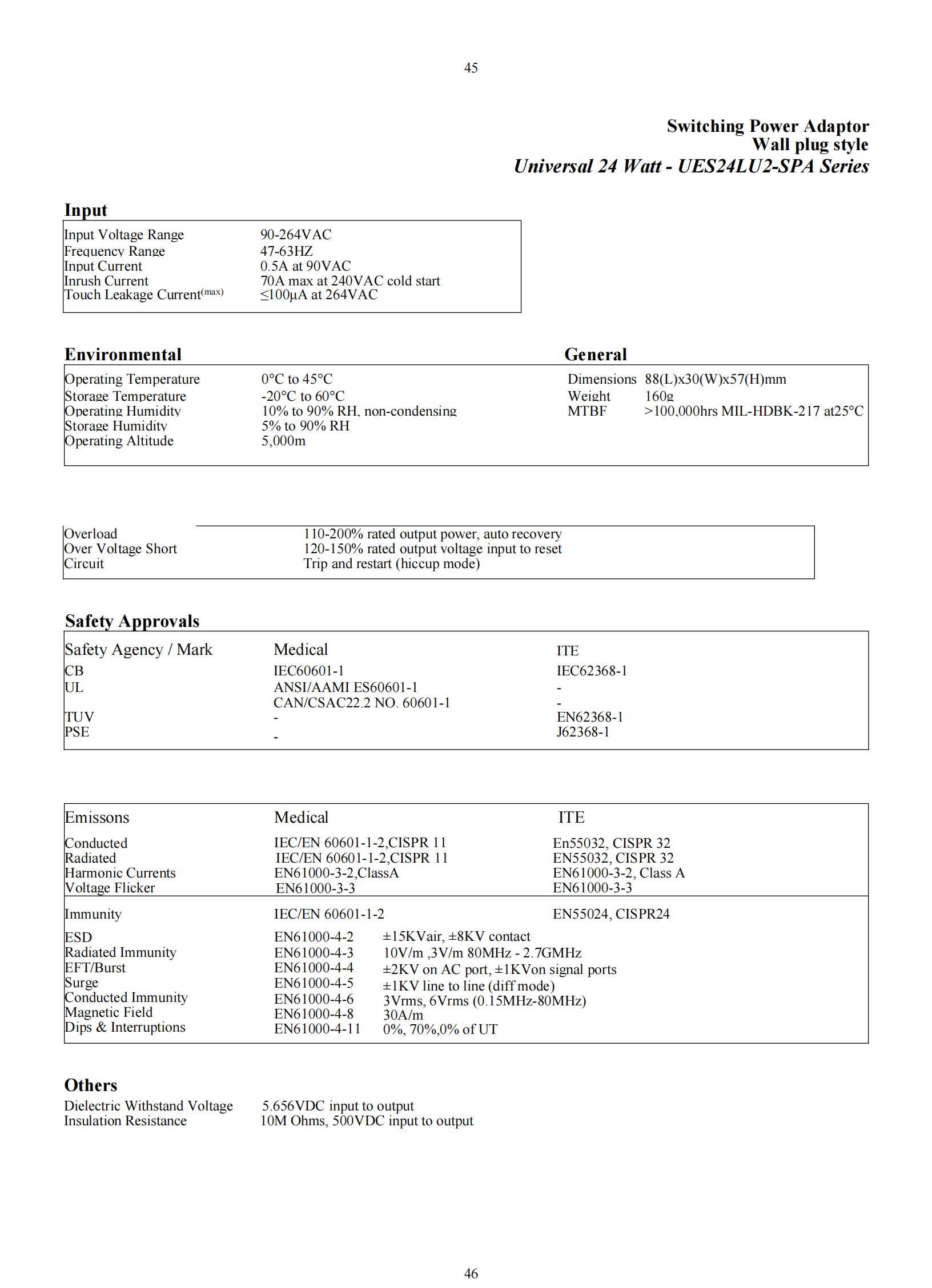

Input
Input Voltage Range
90-264VAC
Frequency Range47-63Hz
Input Current
0.5A at 100VAC
Inrush Current
70A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature
0 ℃ to 45 ℃
Storage Temperature
-20 ℃ to 60 ℃
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
88(L) 30(W) 57(H)mm
Weight
160g
MTBF
＞100,000hrs MIL-HDBK-217 at 25℃

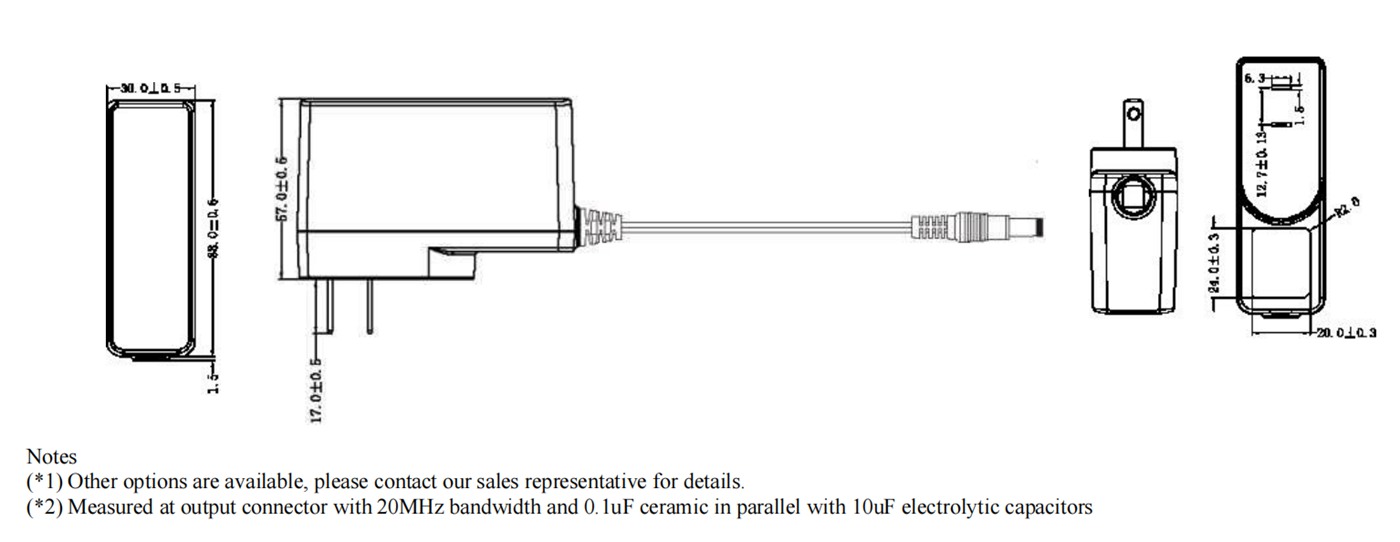

Mechanical Details
