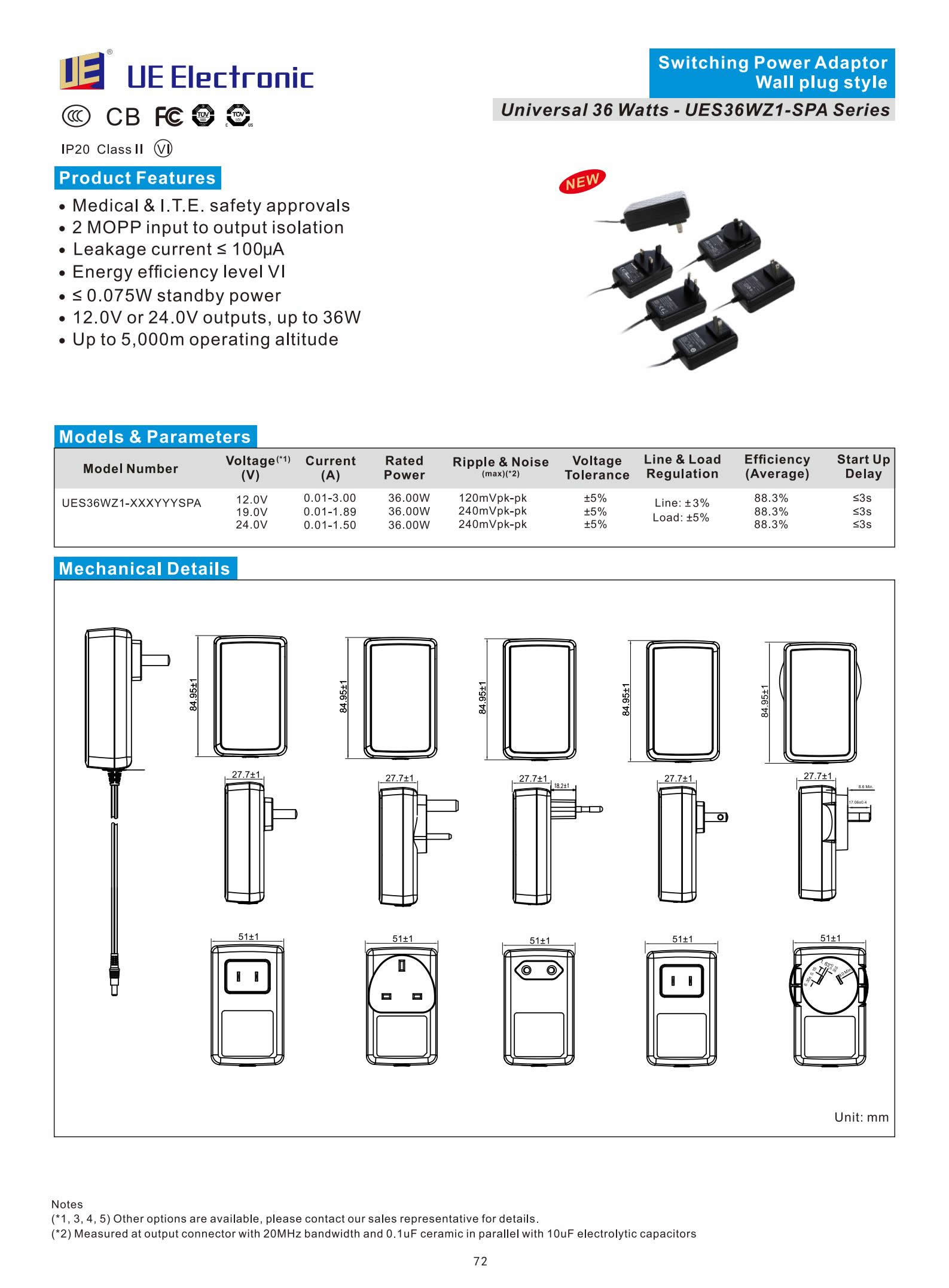

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated Power | Ripple & Noise(max) | Voltage Tolerance |
| UES36WZ1-XXXYYYSPA | 12.0V | 0.01-3.00 | 36.00W | 120mVpk-pk | ±5% |
| 19.0V | 0.01-1.89 | 36.00W | 240mVpk-pk | ||
| 24.0V | 0.01-1.50 | 36.00W | 240mVpk-pk | ||

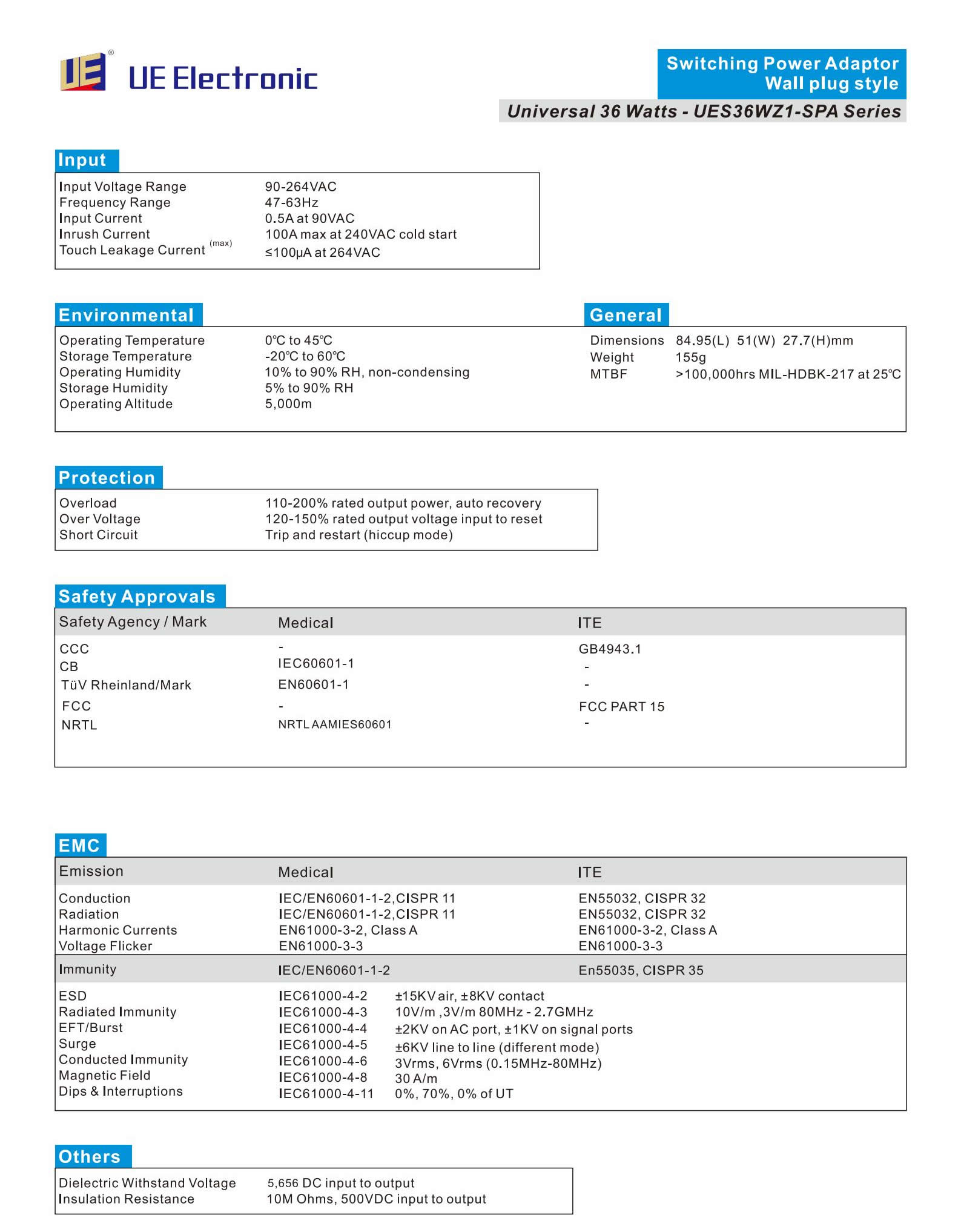

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 0.5A at 90VAC | ||||
| Inrush Current | 100A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤100μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 45 ℃ | ||||
| Storage Temperature | -20 ℃ to 60 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 84.95(L) 51(W) 27.7(H)mm | ||||
| Weight | 155g | ||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | ||||

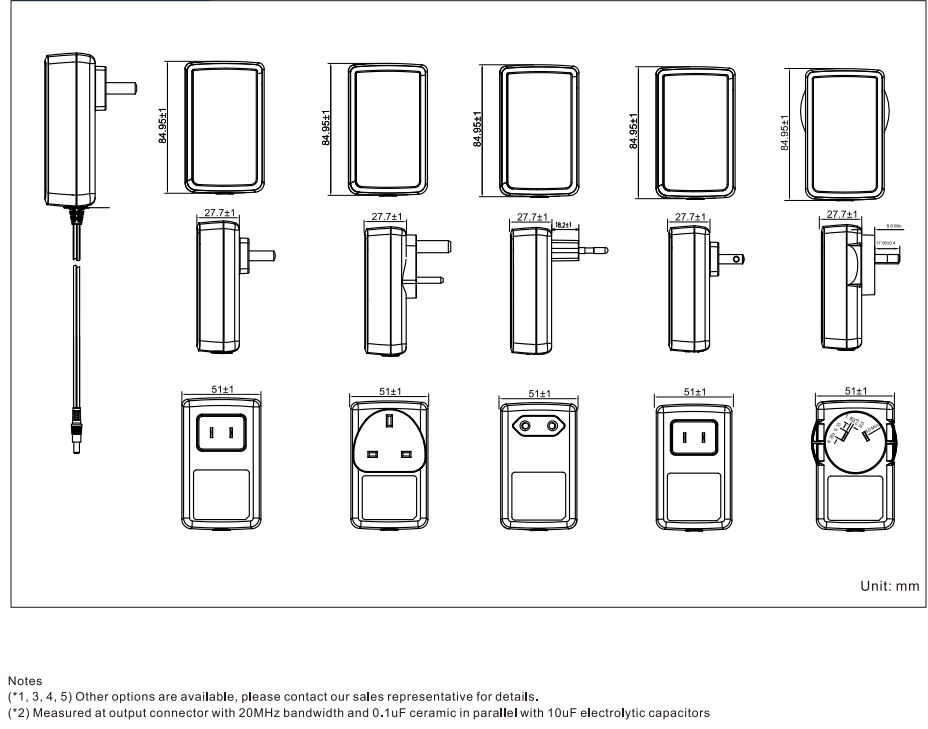

Mechanical Details
