UES48/Medical Adapter 48W

● Meets medical&I.T.E.safety

● 2 MOPP input to output isolation

● Touch current≤100μA

● Earth Leakage current≤5mA

● Energy efficiency level VI

● ≤0.075 Watts Standby Power

● 9.1V-54V outputs, up to 48W

● 5,000m Operating Altitude

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.


Model UES48-SPA Power 48W
Current 0.01-4.50A Output 9.1-54.0V
Size 122.0(L) 51.0(W) 31.5(H)mm
Contact us

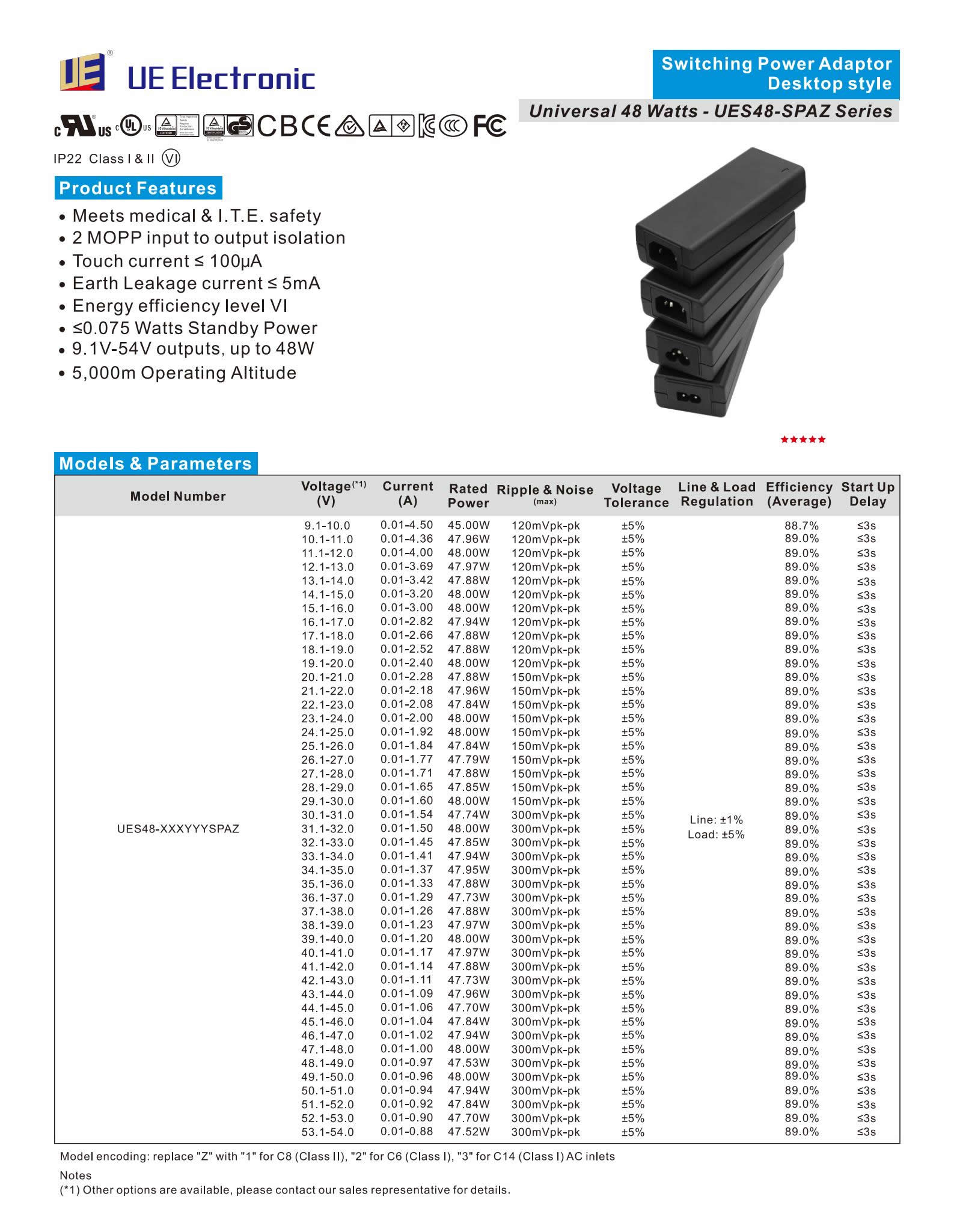

Model and Ratings
Model
Voltage（V）
Current（A）
Rated Power
Ripple & Noise(max)
Voltage Tolerance
UES48-XXXYYYSPA
9.1-10.00.01-4.5045.00W120mVpk-pk±5%
10.1-11.00.01-4.3647.96W120mVpk-pk
11.1-12.00.01-4.0048.00W120mVpk-pk
12.1-13.00.01-3.6947.97W120mVpk-pk
13.1-14.00.01-3.4247.88W120mVpk-pk
14.1-15.00.01-3.2048.00W120mVpk-pk
15.1-16.00.01-3.0048.00W120mVpk-pk
16.1-17.00.01-2.8247.94W120mVpk-pk
17.1-18.00.01-2.6647.88W120mVpk-pk
18.1-19.00.01-2.5247.88W120mVpk-pk
19.1-20.00.01-2.4048.00W120mVpk-pk
20.1-21.00.01-2.2847.88W150mVpk-pk
21.1-22.00.01-2.1847.96W150mVpk-pk
22.1-23.00.01-2.0847.84W150mVpk-pk
23.1-24.00.01-2.0048.00W150mVpk-pk
24.1-25.00.01-1.9248.00W150mVpk-pk
25.1-26.00.01-1.8447.84W150mVpk-pk
26.1-27.00.01-1.7747.79W150mVpk-pk
27.1-28.00.01-1.7147.88W150mVpk-pk
28.1-29.00.01-1.6547.85W150mVpk-pk
29.1-30.00.01-1.6048.00W150mVpk-pk
30.1-31.00.01-1.5447.74W300mVpk-pk
31.1-32.00.01-1.5048.00W300mVpk-pk
32.1-33.00.01-1.4547.85W300mVpk-pk
33.1-34.00.01-1.4147.94W300mVpk-pk
34.1-35.00.01-1.3747.95W300mVpk-pk
35.1-36.00.01-1.3347.88W300mVpk-pk
36.1-37.00.01-1.2947.73W300mVpk-pk
37.1-38.00.01-1.2647.88W300mVpk-pk
38.1-39.00.01-1.2347.97W300mVpk-pk
39.1-40.00.01-1.2048.00W300mVpk-pk
40.1-41.00.01-1.1747.97W300mVpk-pk
41.1-42.00.01-1.1447.88W300mVpk-pk
42.1-43.00.01-1.1147.73W300mVpk-pk
43.1-44.00.01-1.0947.96W300mVpk-pk
44.1-45.00.01-1.0647.70W300mVpk-pk
45.1-46.00.01-1.0447.84W300mVpk-pk
46.1-47.00.01-1.0247.94W300mVpk-pk
47.1-48.00.01-1.0048.00W300mVpk-pk
48.1-49.00.01-0.9747.53W300mVpk-pk
49.1-50.00.01-0.9648.00W300mVpk-pk
50.1-51.00.01-0.9447.94W300mVpk-pk
51.1-52.00.01-0.9247.84W300mVpk-pk
52.1-53.00.01-0.9047.70W300mVpk-pk
53.1-54.00.01-0.8847.52W300mVpk-pk

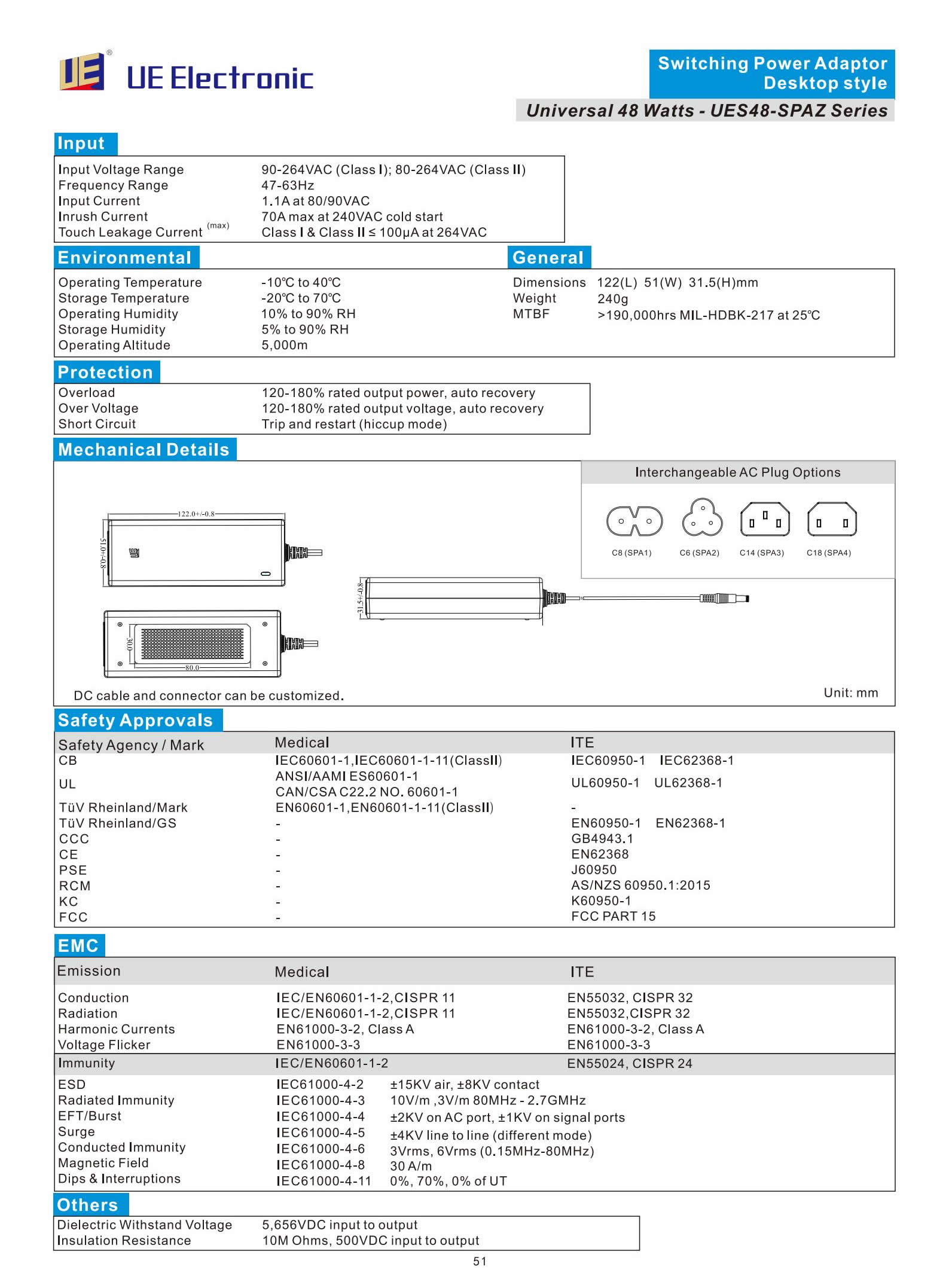

Input
Input Voltage Range
90-264VAC(Class I); 80-264vac(Class II)
Frequency Range47-63Hz
Input Current
1.1A at 80/90VAC
Inrush Current
50A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature
-10 ℃ to 40 ℃
Storage Temperature
-20 ℃ to 70 ℃
Operating Humidity
10% to 90% RH
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
122.0(L) 51.0(W) 31.5(H)mm
Weight
240g
MTBF
＞190,000hrs MIL-HDBK-217 at 25℃


Mechanical Details
