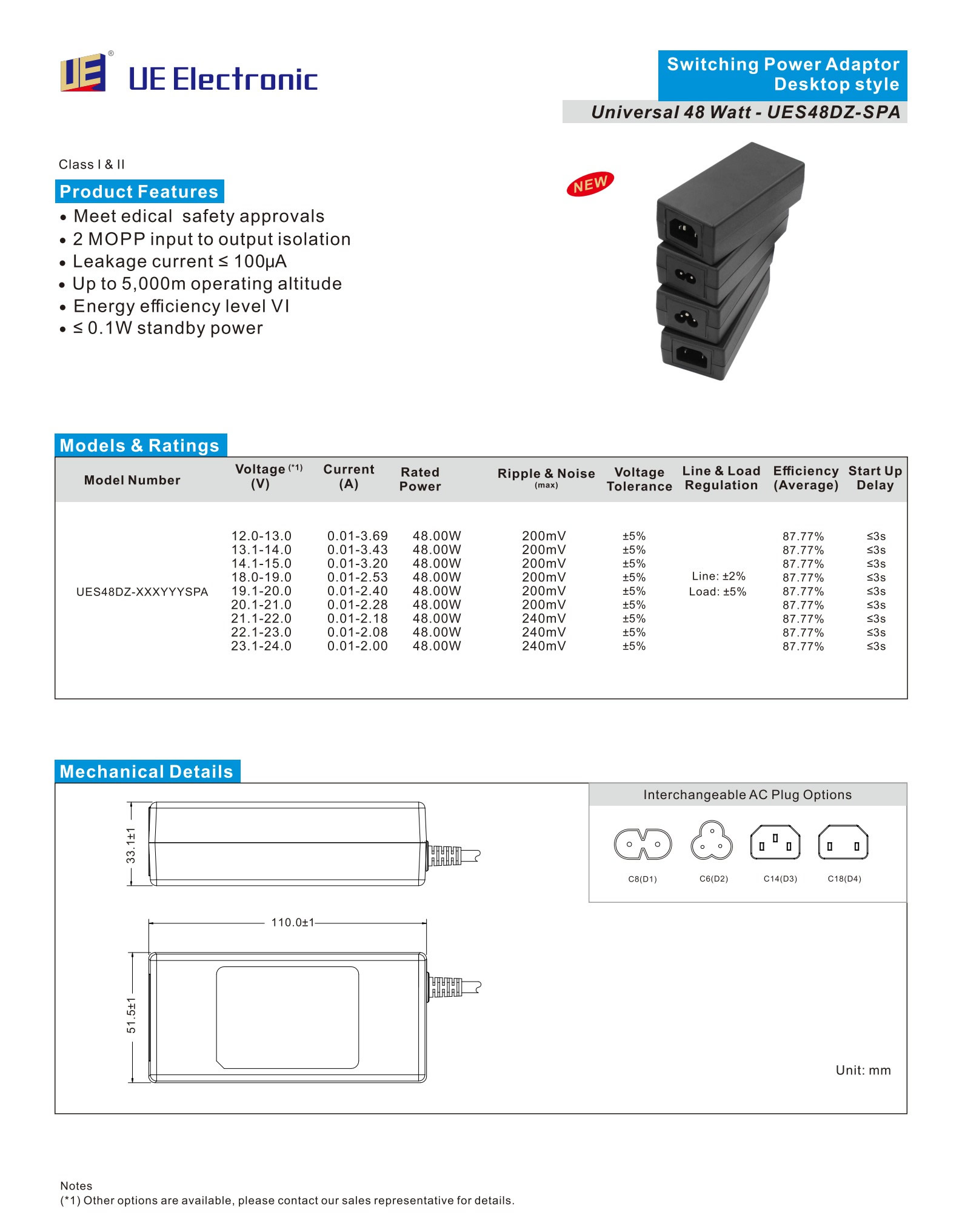

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated Power | Ripple & Noise(max) | Voltage Tolerance |
| UE48DZ-XXXYYYSPA | 12.0-13.0 | 0.01-3.69 | 48.00W | 200mVpk-pk | ±5% |
| 13.1-14.0 | 0.01-3.43 | 48.00W | 200mVpk-pk | ||
| 14.1-15.0 | 0.01-3.20 | 48.00W | 200mVpk-pk | ||
| 18.0-19.0 | 0.01-2.53 | 48.00W | 200mVpk-pk | ||
| 19.1-20.0 | 0.01-2.40 | 48.00W | 200mVpk-pk | ||
| 20.1-21.0 | 0.01-2.28 | 48.00W | 200mVpk-pk | ||
| 21.2-22.0 | 0.01-2.18 | 48.00W | 240mVpk-pk | ||
| 22.1-23.0 | 0.01-2.08 | 48.00W | 240mVpk-pk | ||
| 23.1-24.0 | 0.01-2.00 | 48.00W | 240mVpk-pk | ||

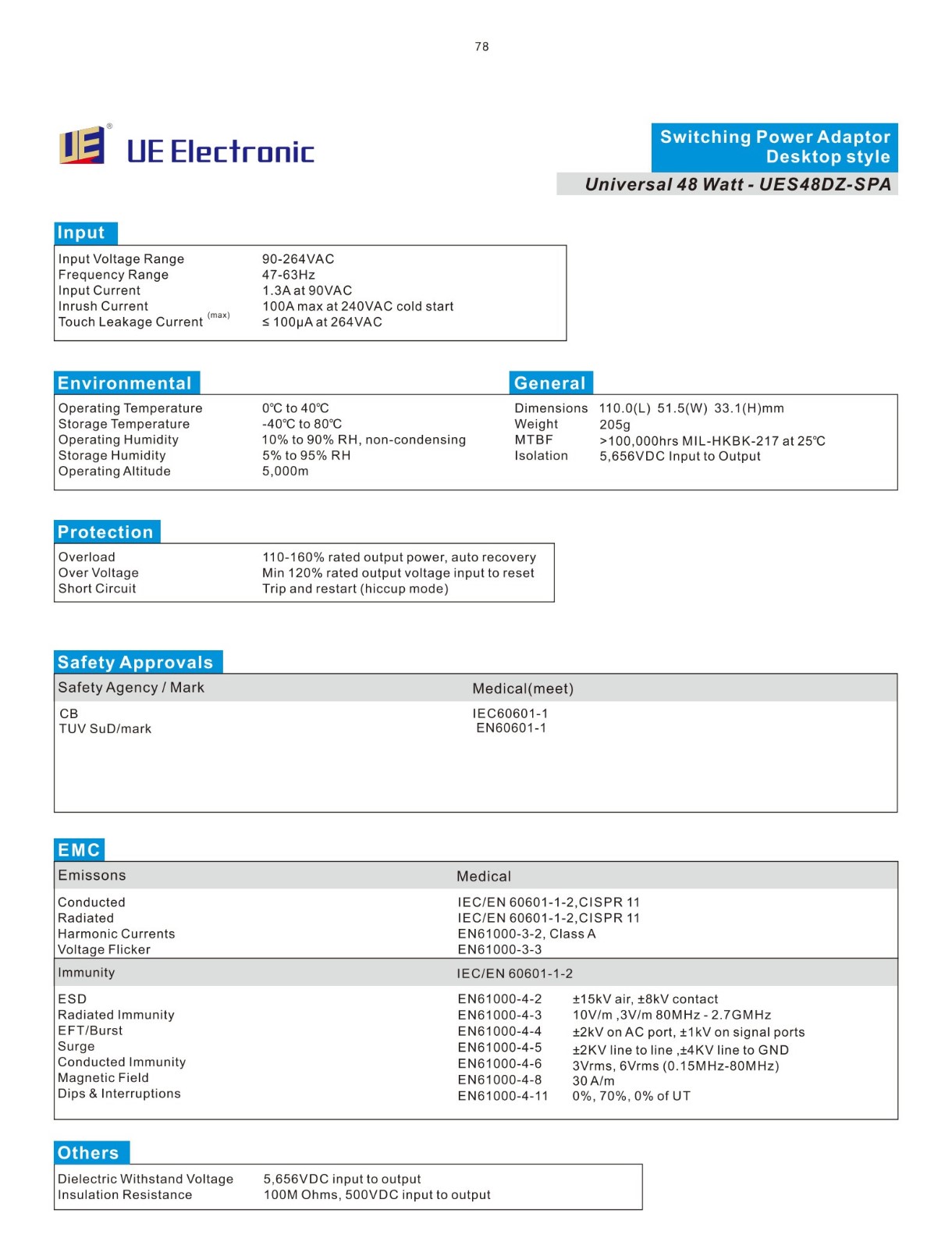

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 1.3A at 100VAC | ||||
| Inrush Current | 100A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤100μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 40 ℃ | ||||
| Storage Temperature | -40 ℃ to 80 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 110.0(L) 51.5.0(W) 33.1(H)mm | ||||
| Weight | 205g | ||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | ||||

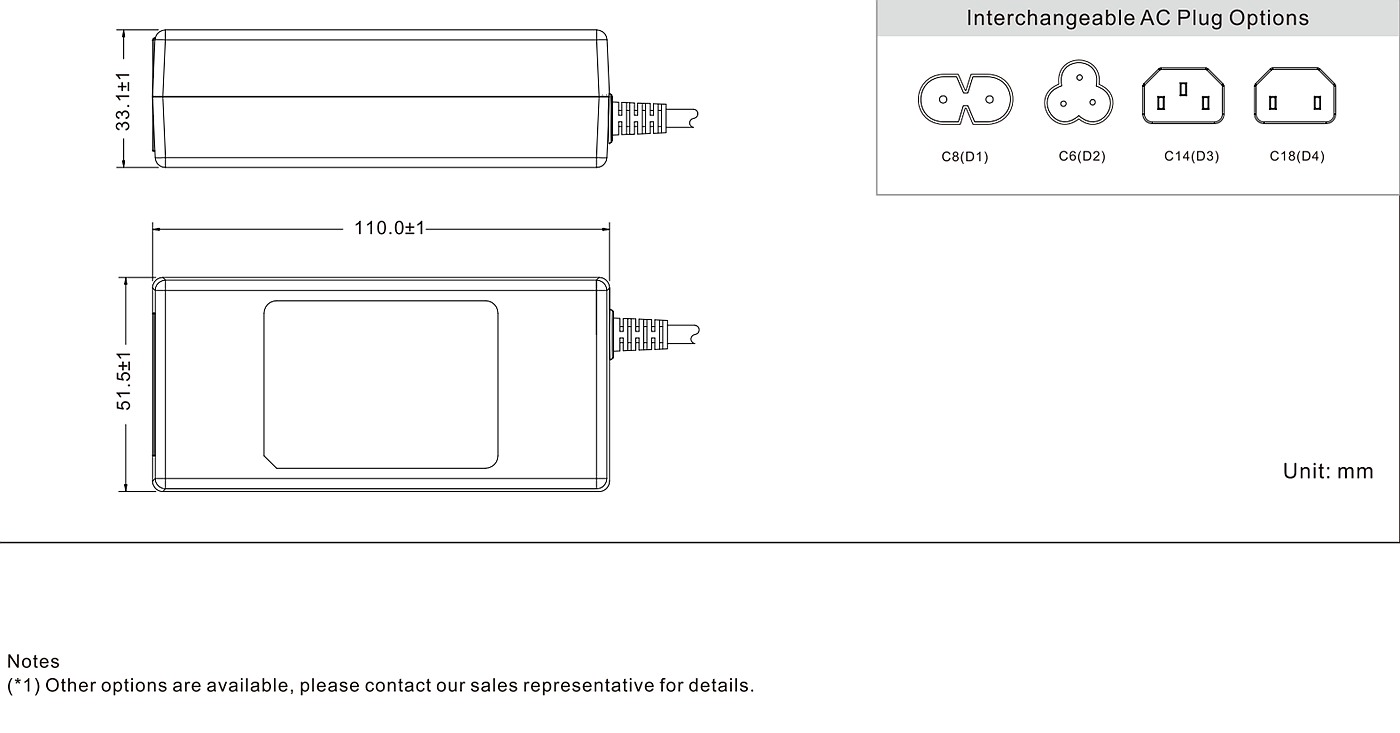

Mechanical Details
