| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
UES65-XXXYYYSPAZ UES65-XXXYYYSPA2-OP | 9.0-12.0 | 0.01-5.42 | 65.04W | 200mVpk-pk | ±5% |
| 12.1-13.0 | 0.01-5.00 | 65.00W | 200mVpk-pk | ||
| 13.1-14.0 | 0.01-4.64 | 64.96W | 200mVpk-pk | ||
| 14.1-15.0 | 0.01-4.30 | 64.50W | 200mVpk-pk | ||
| 15.1-16.0 | 0.01-4.30 | 64.96W | 200mVpk-pk | ||
| 16.1-17.0 | 0.01-3.82 | 64.94W | 200mVpk-pk | ||
| 17.1-18.0 | 0.01-3.60 | 64.80W | 200mVpk-pk | ||
| 18.1-19.0 | 0.01-3.40 | 64.60W | 200mVpk-pk | ||
| 19.1-20.0 | 0.01-3.24 | 64.80W | 200mVpk-pk | ||
| 20.1-21.0 | 0.01-3.09 | 64.89W | 200mVpk-pk | ||
| 21.0-22.0 | 0.01-2.85 | 64.90W | 200mVpk-pk | ||
| 22.1-23.0 | 0.01-2.82 | 64.86W | 200mVpk-pk | ||
| 23.1-24.0 | 0.01-2.70 | 64.80W | 240mVpk-pk | ||
| 48.0 | 0.01-1.35 | 64.80W | 300mVpk-pk | ||
| 48.1-54.0 | 0.01-1.20 | 64.80W | 300mVpk-pk | ||
| Input | |||||
| Input Voltage Range | 90-264VAC(Class I); 80-264(Class II) | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 2.0A at 80/90VAC | ||||
| Inrush Current | 120A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤100μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 40 ℃ | ||||
| Storage Temperature | -20 ℃ to 60 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 125.0(L) 62.0(W) 34.0(H)mm | ||||
| Weight | 315g | ||||
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ | ||||

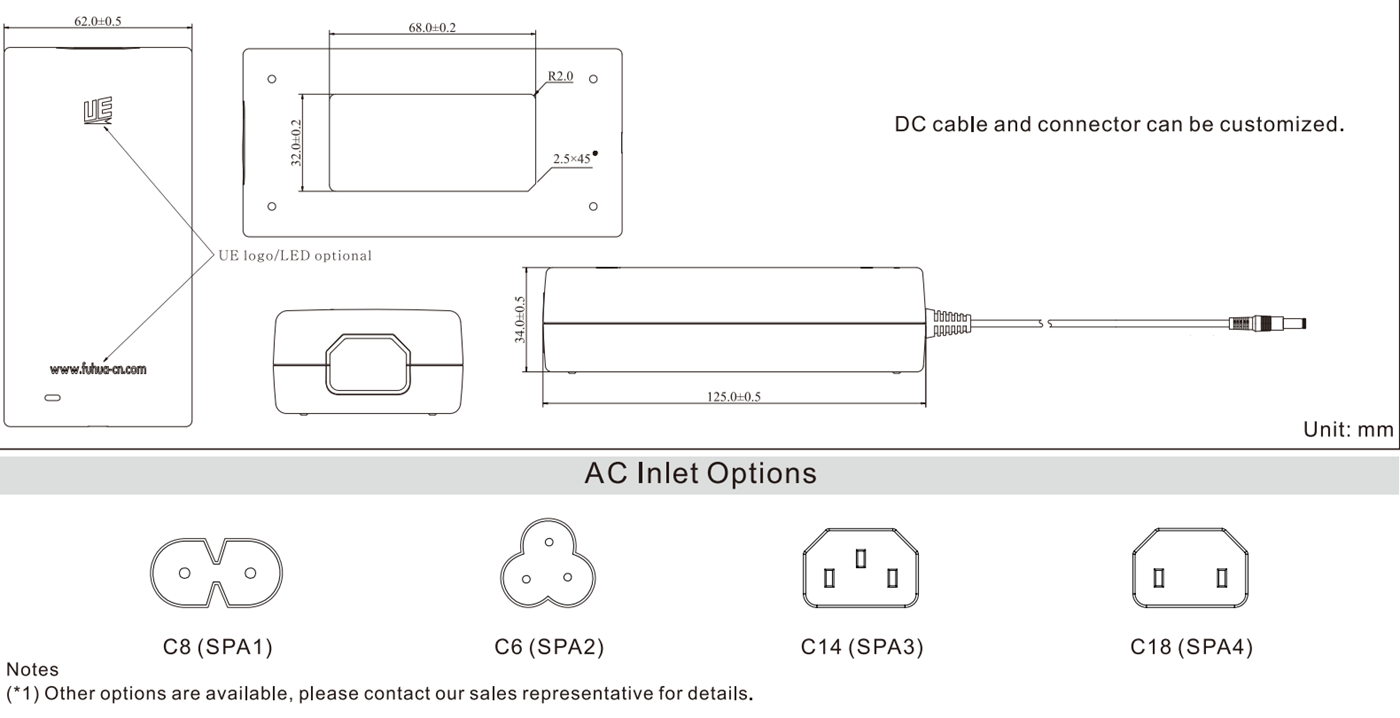

Mechanical Details
