UES65/Medical Power Supply 65W

● Medical& ITE safety meet

● 2 MOPP input to output isolation

● Energy efficiency level VI

● Leakage current<100μA

● ≤0.15W standby power

● Up to 5,000m operating altitude

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.


Model UES65-SPA5-OP Power 65W
Current 0.01-10.0A Output 5.0-48V
Size 76.2(L) 50.8(W) 27.5(H)mm
Contact us

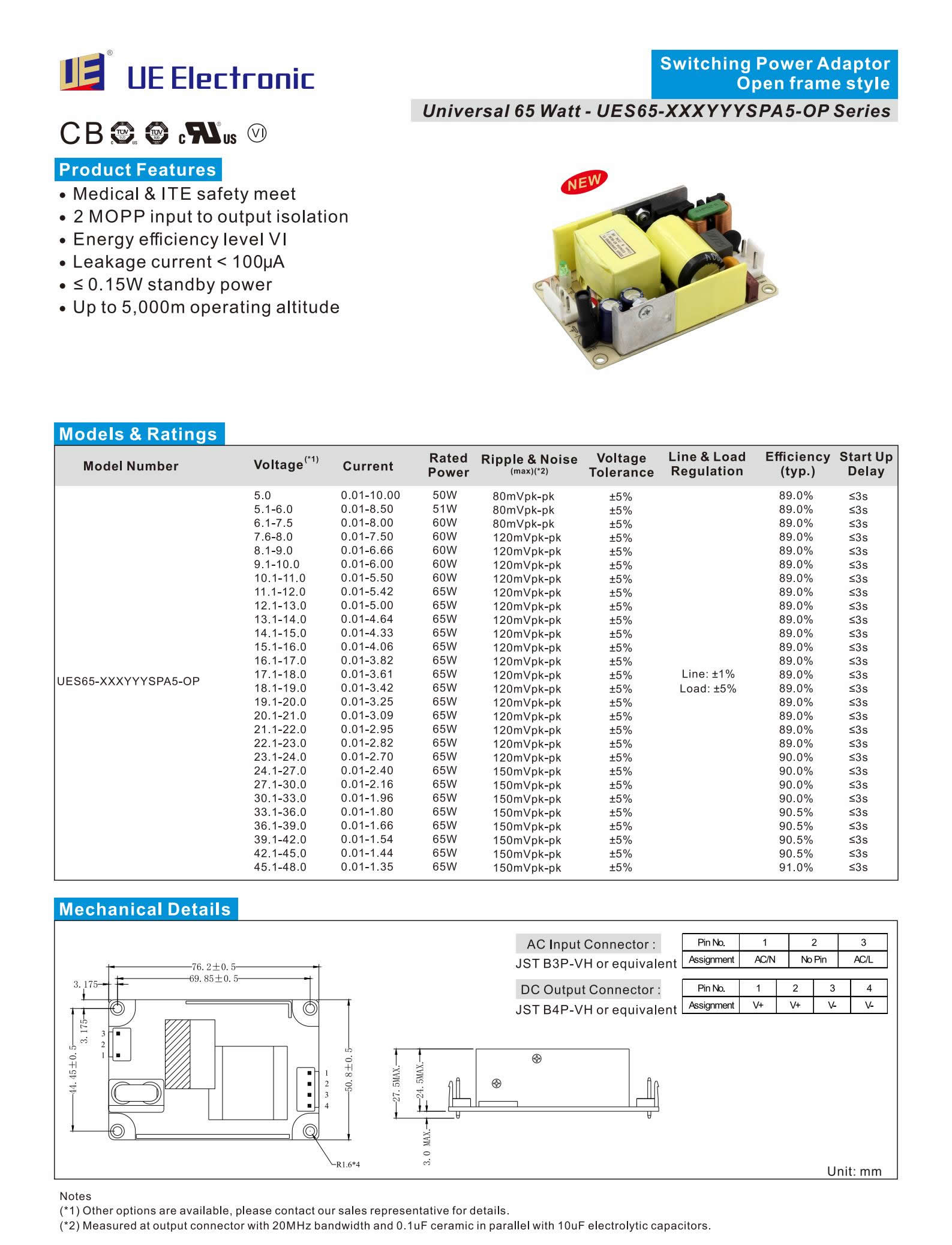

Model and Ratings
Model
Voltage（V）
Current（A）
Rated power
Ripple & Noise(max)
Voltage Tolerance

UES65-XXXYYYSPA5-OP

5.0
0.01-10.0050W80mVpk-pk±5%
5.1-6.0
0.01-8.5051W80mVpk-pk
6.1-7.50.01-8.0060W80mVpk-pk
7.6-8.00.01-7.5060W120mVpk-pk
8.1-9.00.01-6.6660W120mVpk-pk
9.1-10.00.01-6.0060W120mVpk-pk
10.1-11.00.01-5.5060W120mVpk-pk
11.1-12.00.01-5.4265W120mVpk-pk
12.1-13.00.01-5.0065W120mVpk-pk
13.1-14.00.01-4.6465W120mVpk-pk
14.1-15.00.01-4.3365W120mVpk-pk
15.1-16.00.01-4.0665W120mVpk-pk
16.1-17.00.01-3.8265W120mVpk-pk
17.1-18.00.01-3.6165W120mVpk-pk
18.1-19.00.01-3.4265W120mVpk-pk
19.1-20.00.01-3.2565W120mVpk-pk
20.1-21.00.01-3.0965W120mVpk-pk
21.1-22.00.01-3.0965W120mVpk-pk
22.1-23.00.01-2.8265W120mVpk-pk
23.1-24.00.01-2.7065W120mVpk-pk
24.1-27.00.01-2.4065W150mVpk-pk
27.1-30.00.01-2.1665W150mVpk-pk
30.1-33.00.01-1.9665W150mVpk-pk
33.1-36.00.01-1.8065W150mVpk-pk
36.1-39.00.01-1.6665W150mVpk-pk
39.1-42.00.01-1.5465W150mVpk-pk
42.1-45.00.01-1.4465W150mVpk-pk
45.1-48.00.01-1.3565W150mVpk-pk

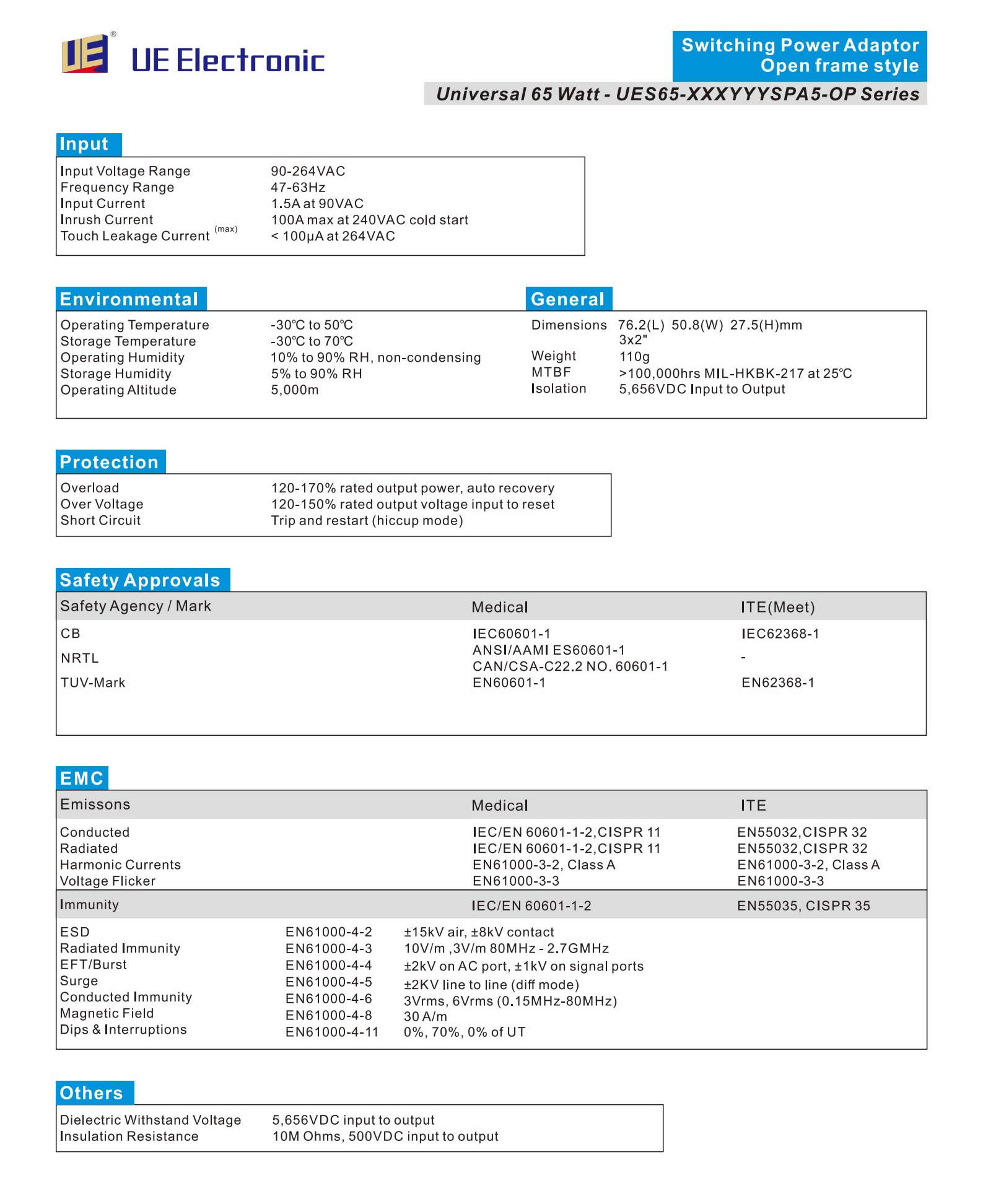

Input
Input Voltage Range
90-264VAC
Frequency Range47-63Hz
Input Current
1.5A at 90VAC
Inrush Current
100A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature
-30 ℃ to 50 ℃
Storage Temperature
-30 ℃ to 70 ℃
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
76.2(L) 50.8(W) 27.5(H)mm
Weight
110g
MTBF
＞100,000hrs MIL-HDBK-217 at 25℃

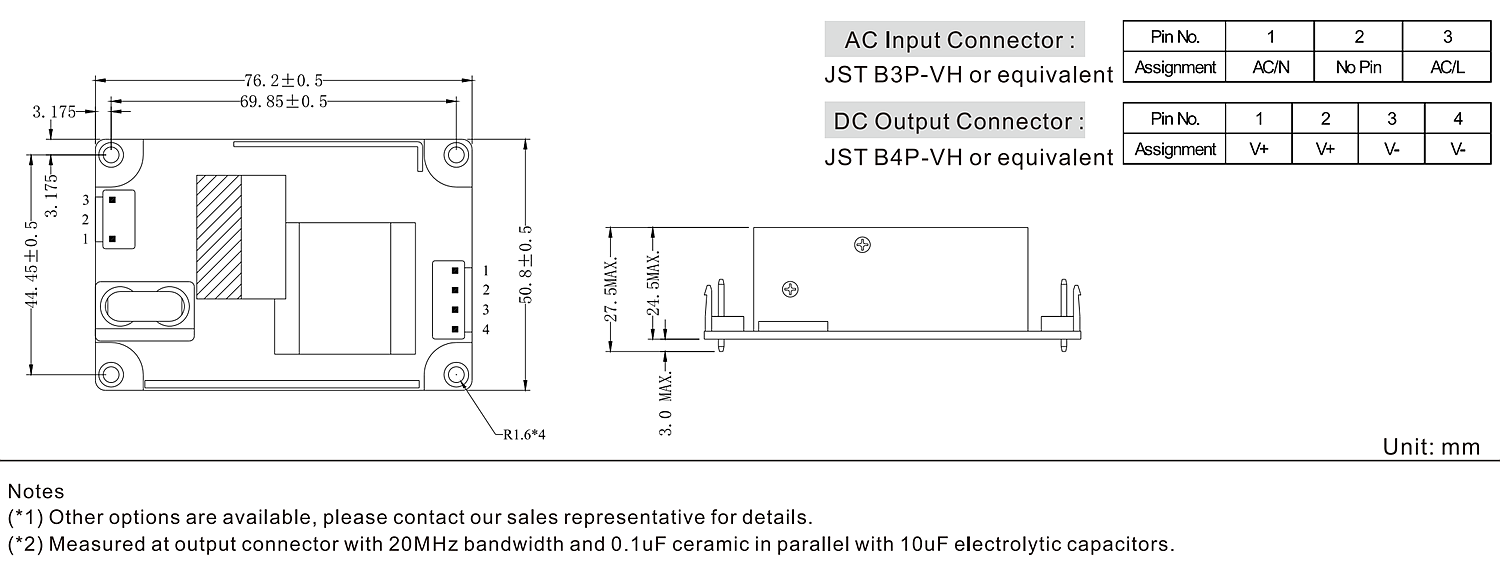

Mechanical Details
