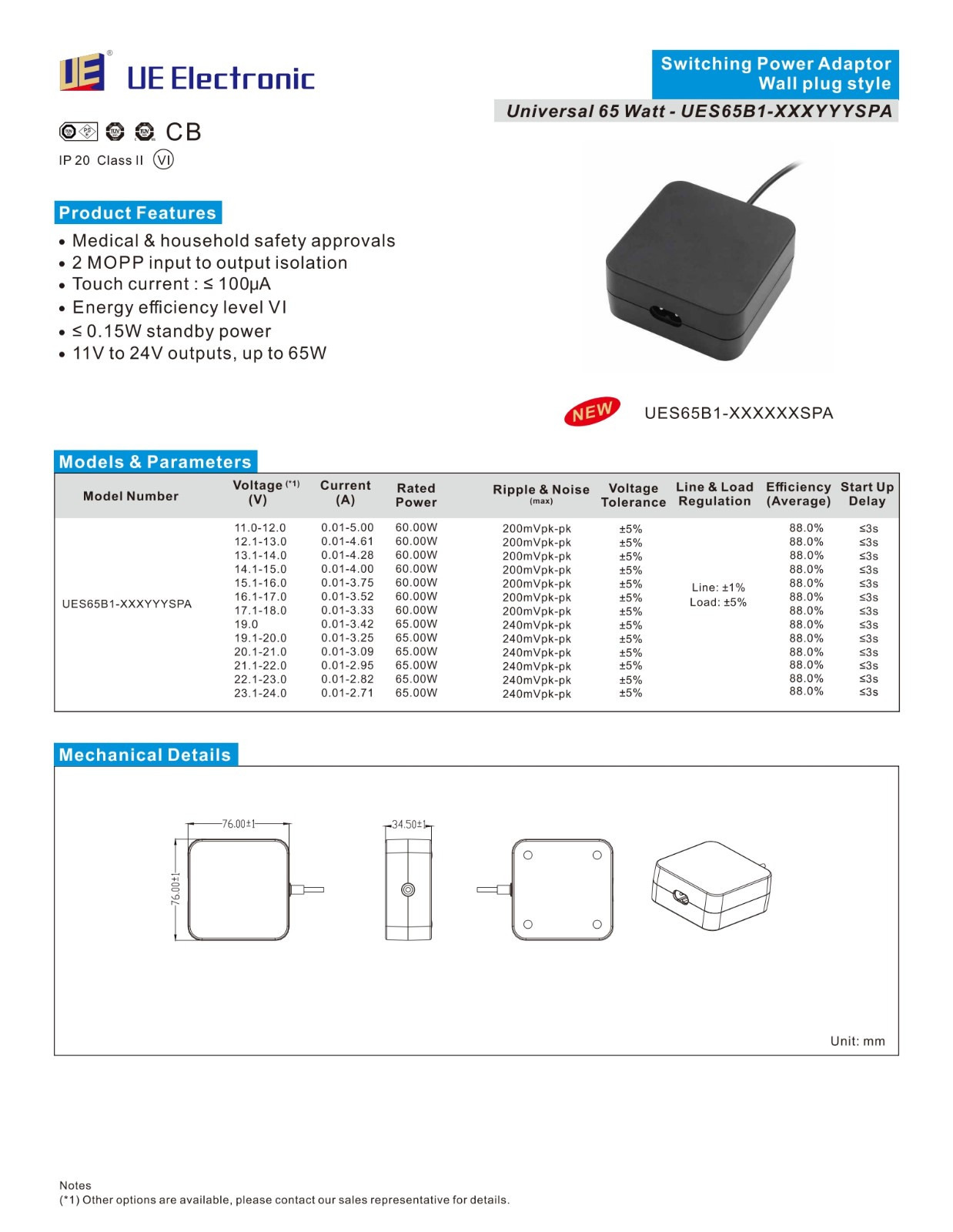

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
UE65B1-XXXYYYSPA | 11.0-12.0 | 0.01-5.00 | 60.00W | 200mVpk-pk | ±5% |
| 12.1-13.0 | 0.01-4.61 | 60.00W | 200mVpk-pk | ±5% | |
| 13.1-14.0 | 0.01-4.28 | 60.00W | 200mVpk-pk | ±5% | |
| 14.1-15.0 | 0.01-4.00 | 60.00W | 200mVpk-pk | ±5% | |
| 15.1-16.0 | 0.01-3.75 | 60.00W | 200mVpk-pk | ±5% | |
| 16.1-17.0 | 0.01-3.52 | 60.00W | 200mVpk-pk | ±5% | |
| 17.1-18.0 | 0.01-3.33 | 60.00W | 200mVpk-pk | ±5% | |
| 19.0 | 0.01-3.42 | 65.00W | 240mVpk-pk | ±5% | |
| 19.1-20.0 | 0.01-3.25 | 65.00W | 240mVpk-pk | ±5% | |
| 20.1-21.0 | 0.01-3.09 | 65.00W | 240mVpk-pk | ±5% | |
| 21.1-22.0 | 0.01-2.95 | 65.00W | 240mVpk-pk | ±5% | |
| 22.1-23.0 | 0.01-2.82 | 65.00W | 240mVpk-pk | ±5% | |
| 23.1-24.0 | 0.01-2.71 | 65.00W | 240mVpk-pk | ±5% | |

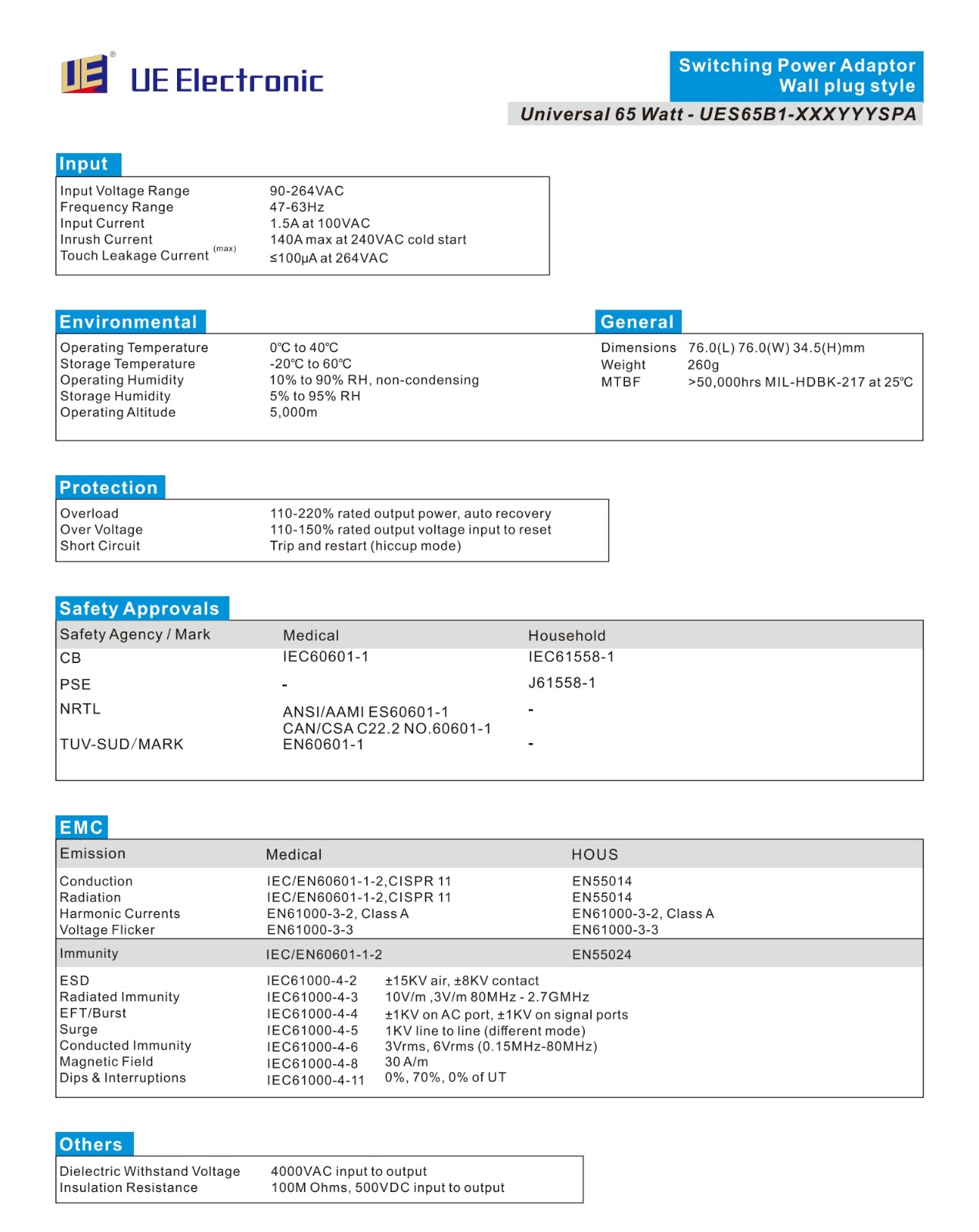

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 1.5A at 90VAC | ||||
| Inrush Current | 140A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤10μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 40 ℃ | ||||
| Storage Temperature | -20 ℃ to 60 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 95% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 76.0(L) 76.0(W) 34.5(H)mm | ||||
| Weight | 260g | ||||
| MTBF | ＞50,000hrs MIL-HDBK-217 at 25℃ | ||||

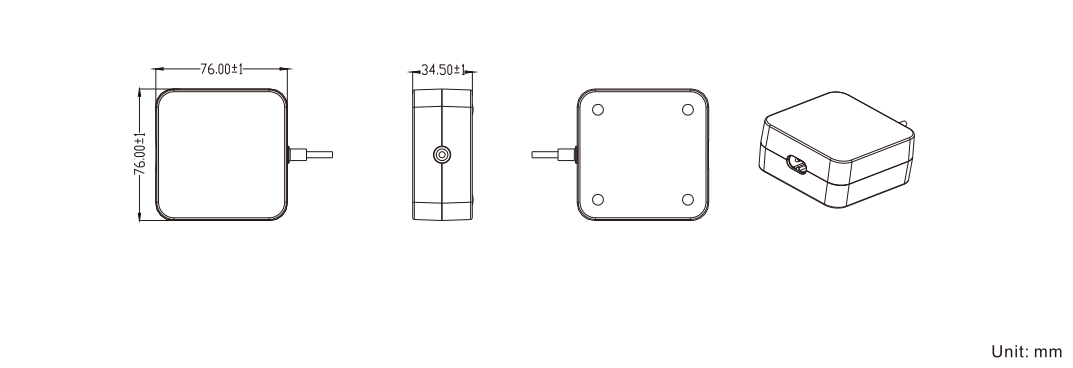

Mechanical Details
