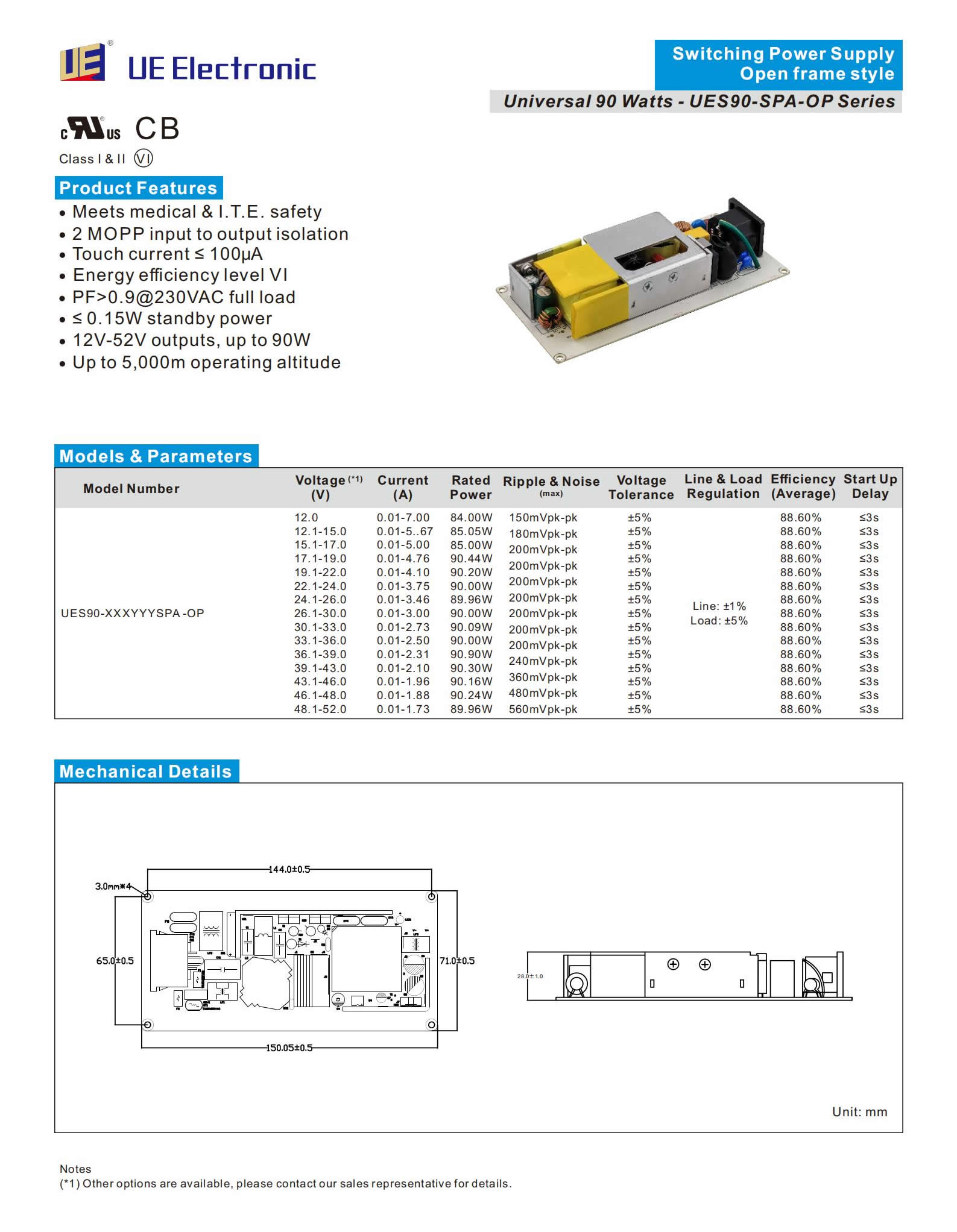

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
| UES90-XXXYYYSPA-OP | 12.0 | 0.01-7.00 | 84.00W | 150mVpk-pk | ±5% |
| 12.1-15.0 | 0.01-5.67 | 85.05W | 180mVpk-pk | ||
| 15.1-17.0 | 0.01-5.00 | 85.00W | 200mVpk-pk | ||
| 17.1-19.0 | 0.01-4.76 | 90.44W | 200mVpk-pk | ||
| 19.1-22.0 | 0.01-4.10 | 90.20W | 200mVpk-pk | ||
| 22.1-24.0 | 0.01-3.75 | 90.00W | 200mVpk-pk | ||
| 24.1-26.0 | 0.01-3.46 | 89.96W | 200mVpk-pk | ||
| 26.1-30.0 | 0.01-3.00 | 90.00W | 200mVpk-pk | ||
| 30.1-33.0 | 0.01-2.73 | 90.09W | 200mVpk-pk | ||
| 33.1-36.0 | 0.01-2.50 | 90.00W | 200mVpk-pk | ||
| 36.1-39.0 | 0.01-2.31 | 90.90W | 200mVpk-pk | ||
| 39.1-43.0 | 0.01-2.10 | 90.30W | 240mVpk-pk | ||
| 43.1-46.0 | 0.01-1.96 | 90.16W | 360mVpk-pk | ||
| 46.1-48.0 | 0.01-1.88 | 90.24W | 480mVpk-pk | ||
| 48.1-52.0 | 0.01-1.73 | 89.96W | 560mVpk-pk | ||

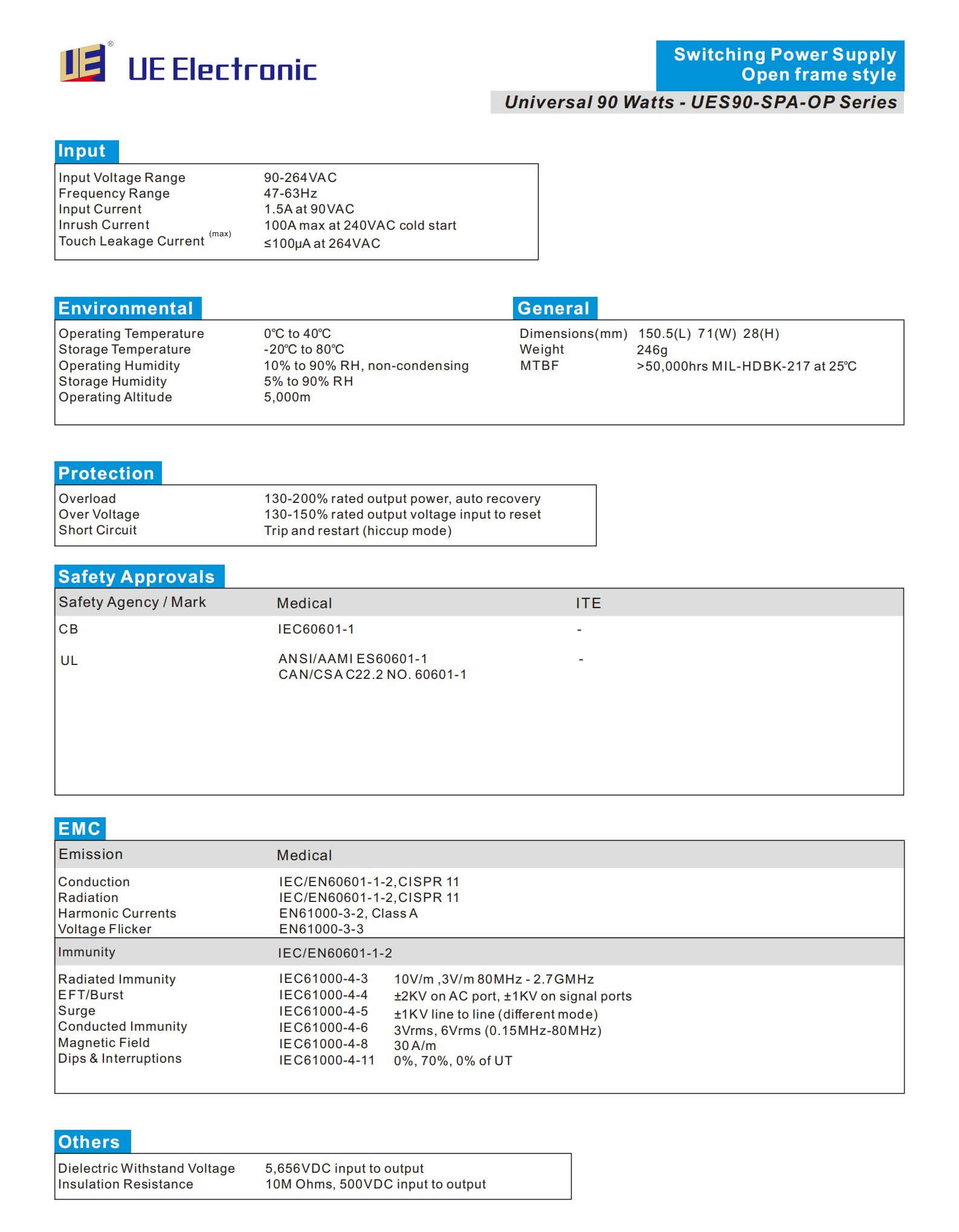

| Input | |||||
| Input Voltage Range | 90-264VAC | ||||
| Frequency Range | 47-63Hz | ||||
| Input Current | 1.5A at 100VAC | ||||
| Inrush Current | 100A max at 240VAC cold start | ||||
| Touch Leakage Current (max) | ≤100μA at 264VAC | ||||
| Environmental | |||||
| Operating Temperature | 0 ℃ to 40 ℃ | ||||
| Storage Temperature | -20 ℃ to 80 ℃ | ||||
| Operating Humidity | 10% to 90% RH, non-condensing | ||||
| Storage Humidity | 5% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 150.5(L) 71.0(W) 28.0(H)mm | ||||
| Weight | 256g | ||||
| MTBF | ＞50,000hrs MIL-HDBK-217 at 25℃ | ||||

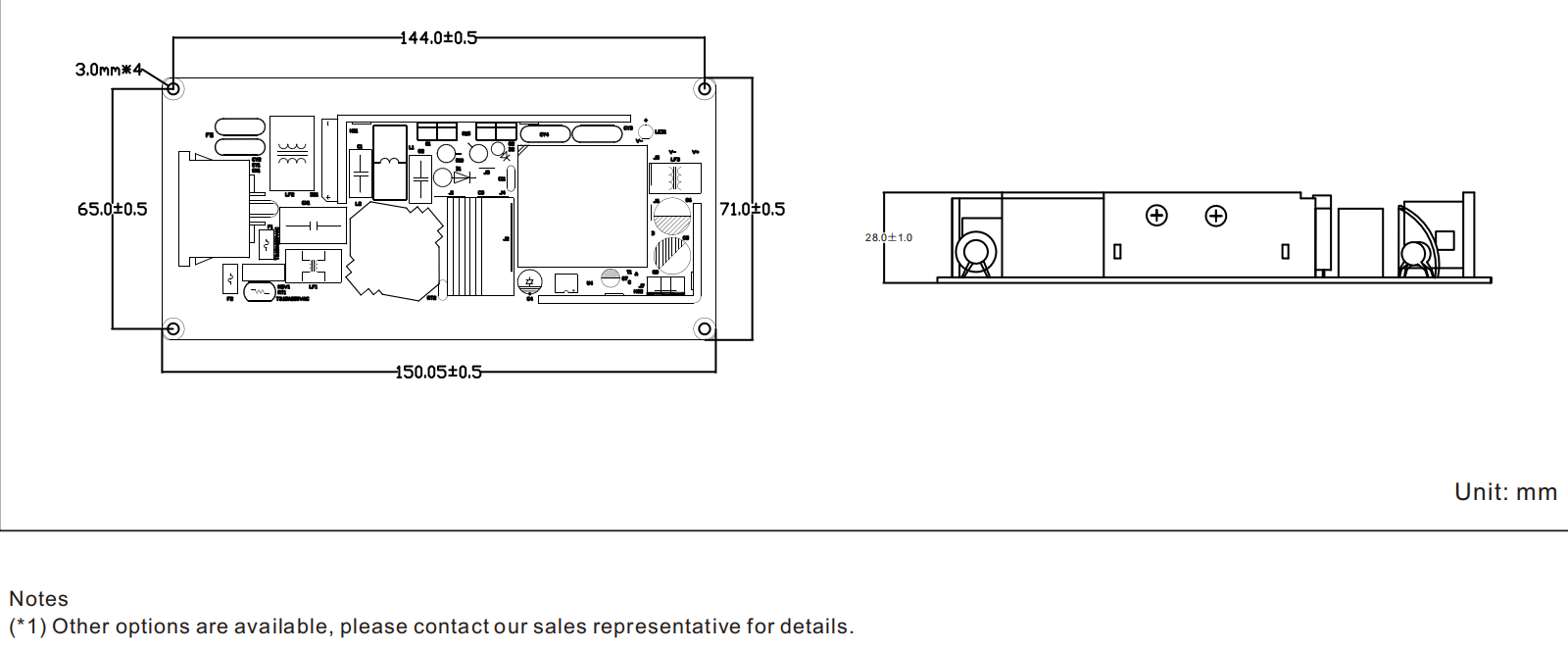

Mechanical Details
