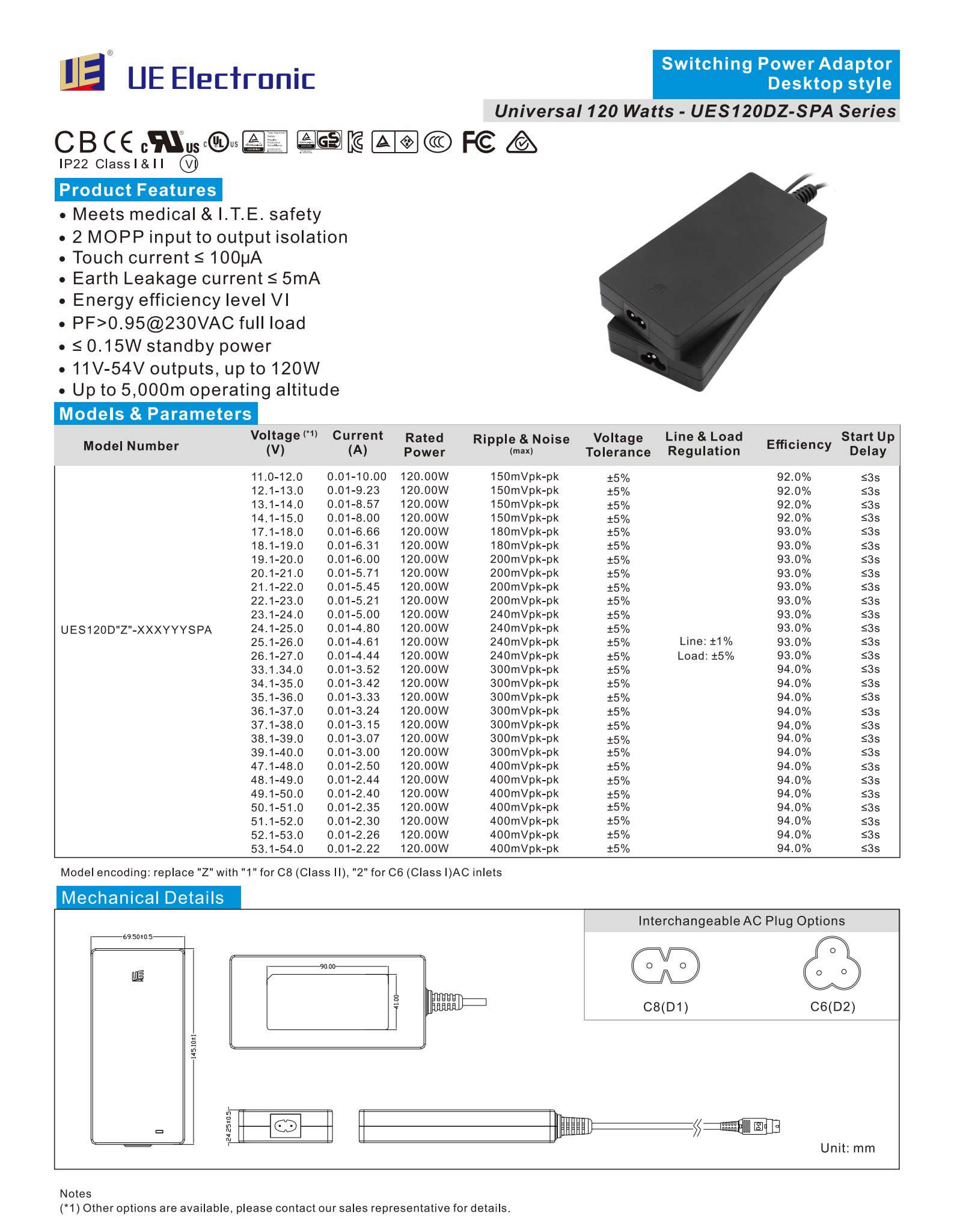

UE120DZ/Medical Power Adapter 120W

● Meets medical&1.I.E.satety

● 2 MOPP input to output isolation

● Touch current≤100μA

● Earth Leakage current≤5mA

● Energy efficiency level VI

● PF>0.95@230VAC full load

● ≤0.15W standby power

● 11V-54V outputs, up to 120W

● Up to 5,000m operating altitude

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.

Model UE120DZ-SPA Power 120W
Current 0.01-10.00A Output 11.0-54.0V
Size 145.1(L) 69.5(W) 24.25(H)mm
Contact us


Model and Ratings
Model
Voltage（V）
Current（A）
Rated powerRipple & Noise(max)
Voltage Tolerance
UE120D"Z"-XXXYYYSPA
11.0-12.00.01-10.00120.00W150mVpk-pk±5%
12.1-13.00.01-9.23120.00W150mVpk-pk
13.1-14.0
0.01-8.57120.00W150mVpk-pk
14.1-15.00.01-8.00120.00W150mVpk-pk
17.1-18.00.01-6.66120.00W180mVpk-pk
18.1-19.00.01-6.31120.00W180mVpk-pk
19.1-20.00.01-6.00120.00W200mVpk-pk
20.1-21.00.01-5.71120.00W200mVpk-pk
21.1-22.00.01-5.45120.00W200mVpk-pk
22.1-23.00.01-5.21120.00W200mVpk-pk
23.1-24.00.01-5.00120.00W240mVpk-pk
24.1-25.00.01-4.80120.00W240mVpk-pk
25.1-26.00.01-4.61120.00W240mVpk-pk
26.1-27.00.01-4.44120.00W240mVpk-pk
33.1-34.00.01-3.52120.00W300mVpk-pk
34.1-35.00.01-3.42120.00W300mVpk-pk
35.1-36.00.01-3.33120.00W300mVpk-pk
36.1-37.00.01-3.24120.00W300mVpk-pk
37.1-38.00.01-3.15120.00W300mVpk-pk
38.1-39.00.01-3.07120.00W300mVpk-pk
39.1-40.00.01-3.00120.00W300mVpk-pk
47.1-48.00.01-2.50120.00W400mVpk-pk
48.1-49.00.01-2.44120.00W400mVpk-pk
49.1-50.00.01-2.40120.00W400mVpk-pk
50.1-51.00.01-2.35120.00W400mVpk-pk
51.1-52.00.01-2.30120.00W400mVpk-pk
52.1-53.00.01-2.26120.00W400mVpk-pk
53.1-54.00.01-2.22120.00W400mVpk-pk

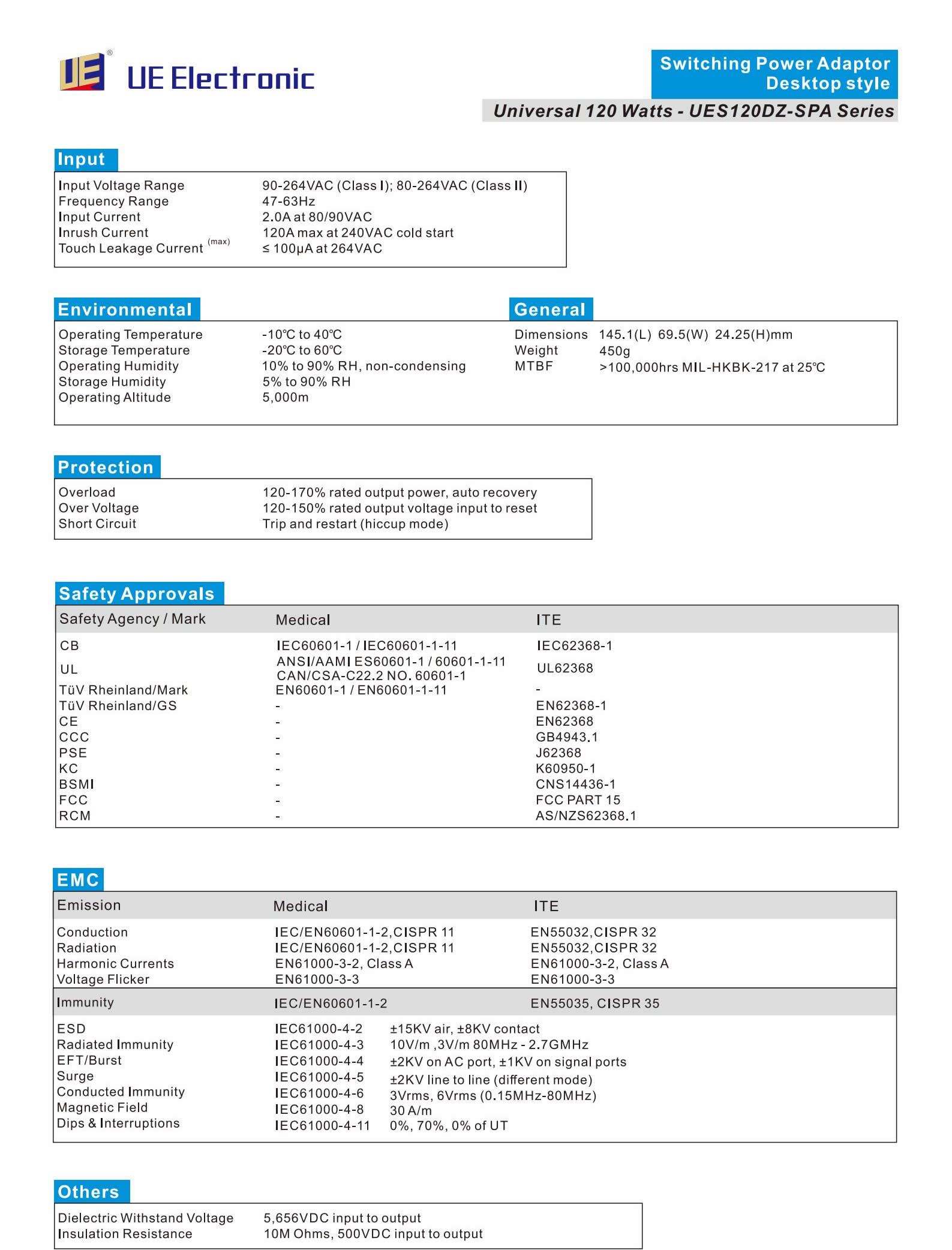

Input
Input Voltage Range
90-264VAC(Class I); 80-264VAC(ClassII)
Frequency Range47-63Hz
Input Current
2.0A at 80/90VAC
Inrush Current
120A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature
-10 ℃ to 40 ℃
Storage Temperature
-20 ℃ to 60 ℃
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
145.1(L) 69.5(W) 24.25(H)mm
Weight
450g
MTBF
＞100,000hrs MIL-HDBK-217 at 25℃

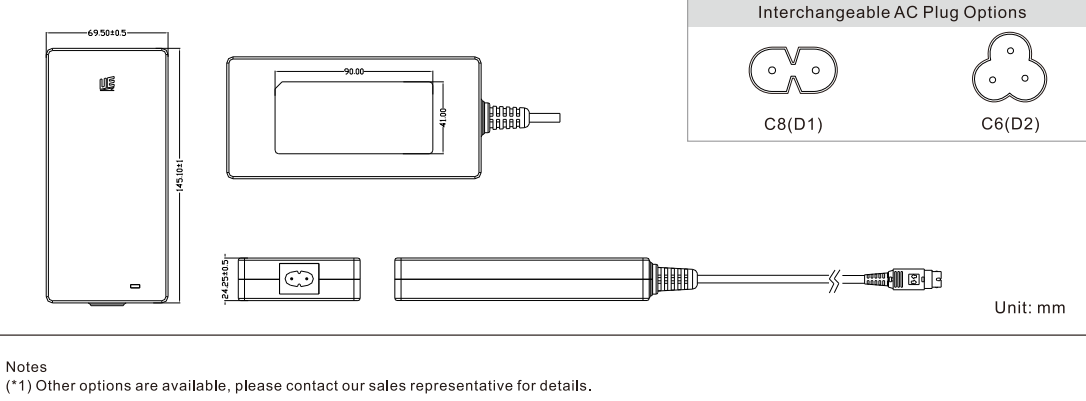

Mechanical Details
