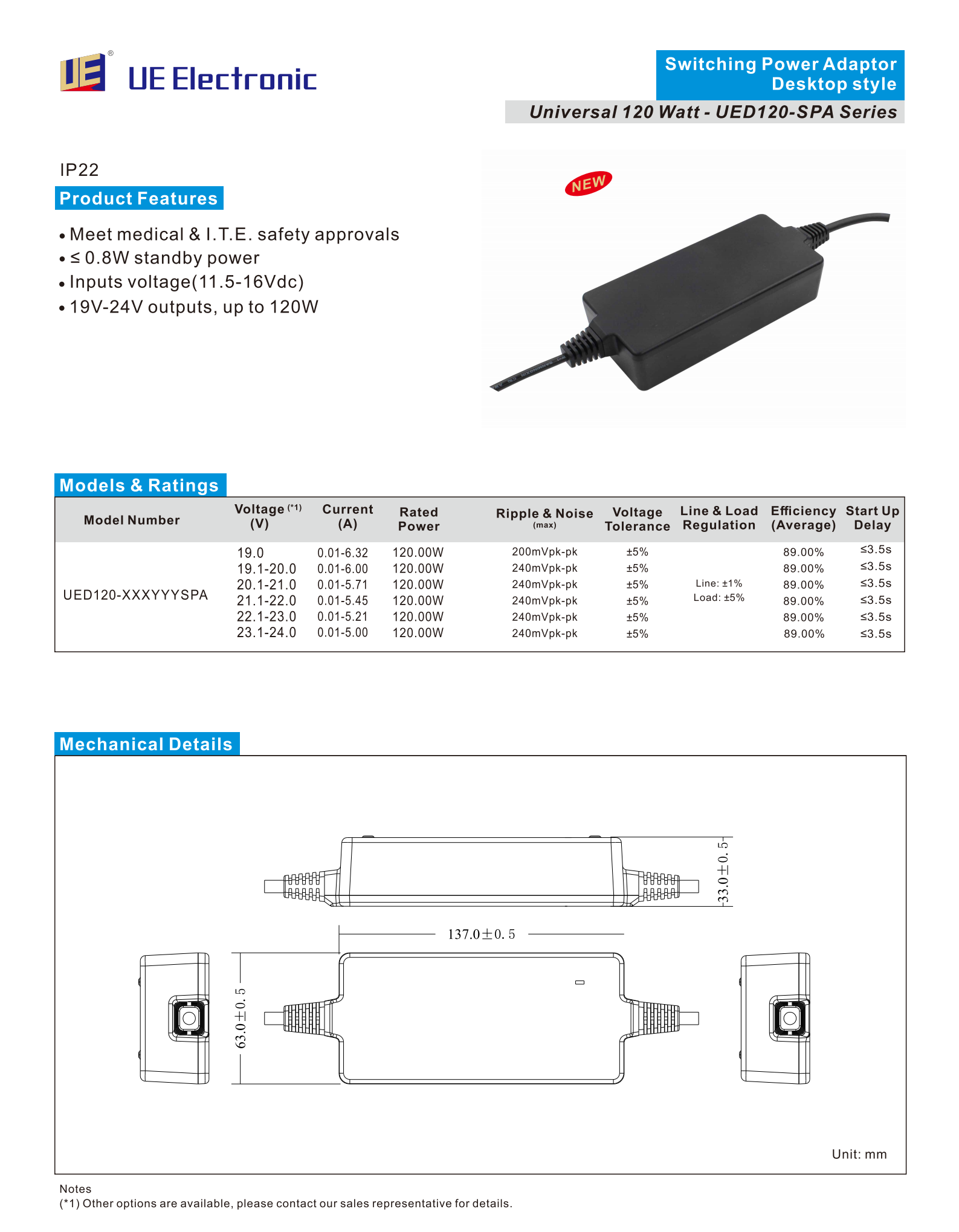

| Model and Ratings | |||||
| Model | Voltage（V） | Current（A） | Rated power | Ripple & Noise(max) | Voltage Tolerance |
| UED120-XXXYYYSPA | 19.0 | 0.01-6.32 | 120.00W | 200mVpk-pk | ±5% |
| 19.1-20.0 | 0.01-6.00 | 120.00W | 240mVpk-pk | ||
| 20.1-21.0 | 0.01-5.71 | 120.00W | 240mVpk-pk | ||
| 21.1-22.0 | 0.01-5.45 | 120.00W | 240mVpk-pk | ||
| 22.1-23.0 | 0.01-5.21 | 120.00W | 240mVpk-pk | ||
| 23.1-24.0 | 0.01-5.00 | 120.00W | 240mVpk-pk | ||

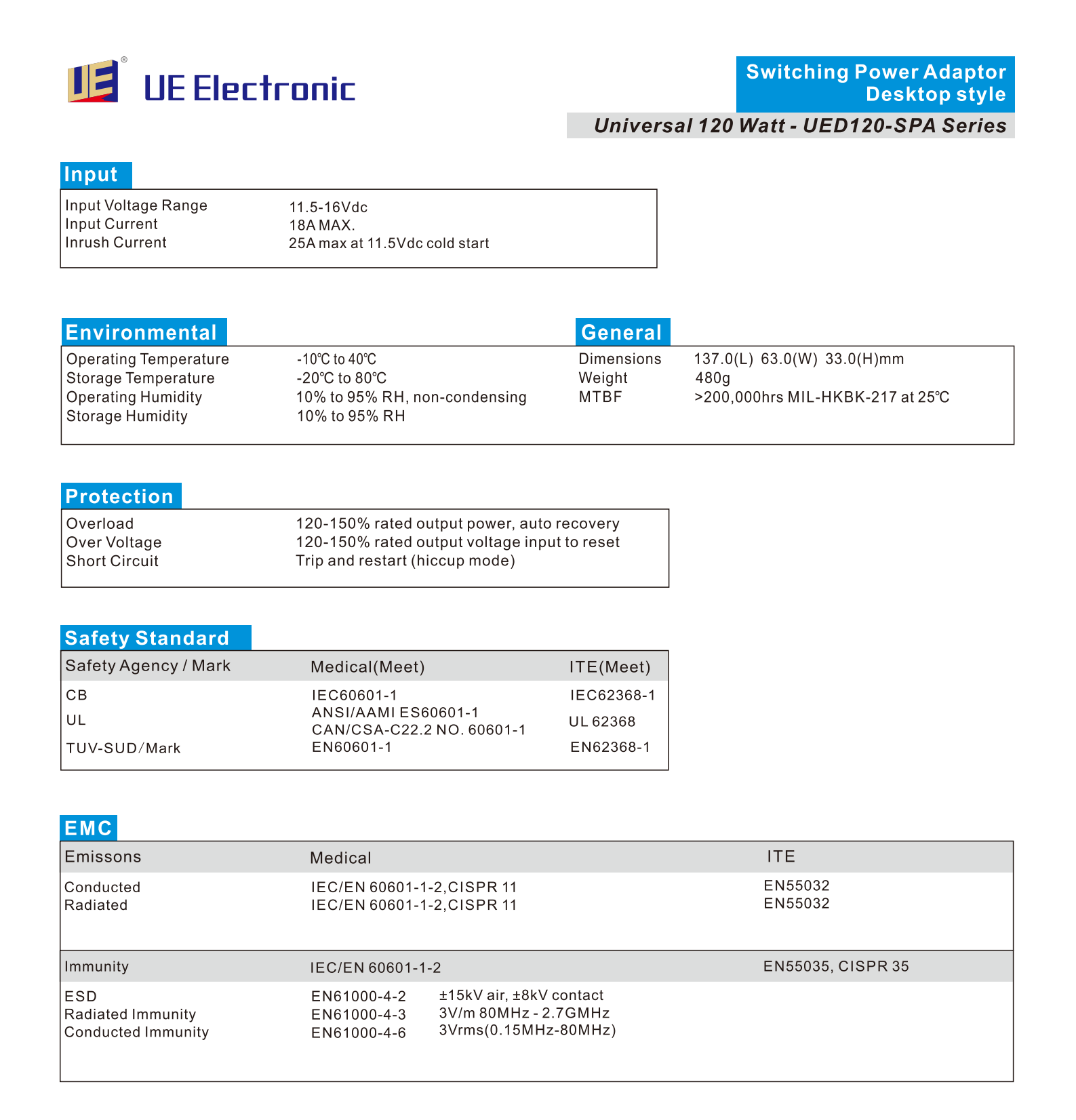

| Input | |||||
| Input Voltage Range | 11.5-16VAC | ||||
| Input Current | 18A MAX | ||||
| Inrush Current | 25A max at 11.5VAC cold start | ||||
| Environmental | |||||
| Operating Temperature | -10 ℃ to 40 ℃ | ||||
| Storage Temperature | -20 ℃ to 80 ℃ | ||||
| Operating Humidity | 10% to 95% RH, non-condensing | ||||
| Storage Humidity | 10% to 90% RH | ||||
| Operating Altitude | 5,000m | ||||
| General | |||||
| Dimensions | 137.0(L) 63.0(W) 33.0(H)mm | ||||
| Weight | 480g | ||||
| MTBF | ＞200,000hrs MIL-HDBK-217 at 25℃ | ||||

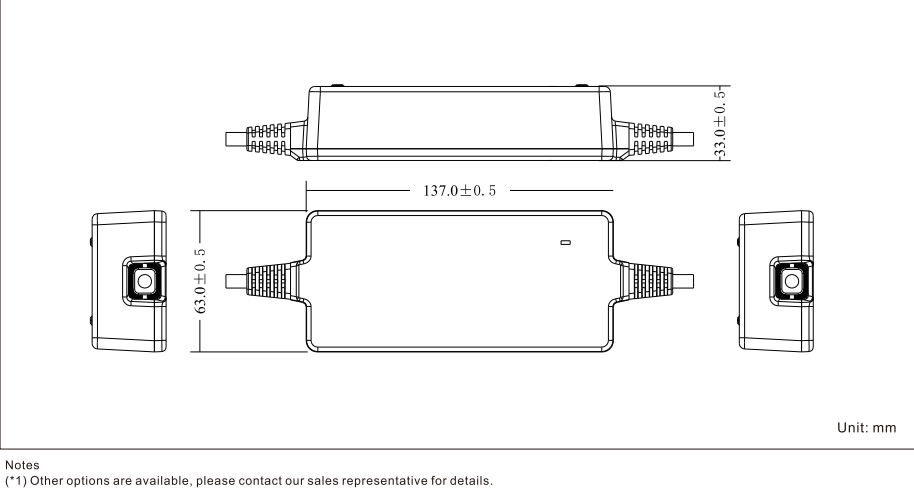

Mechanical Details
