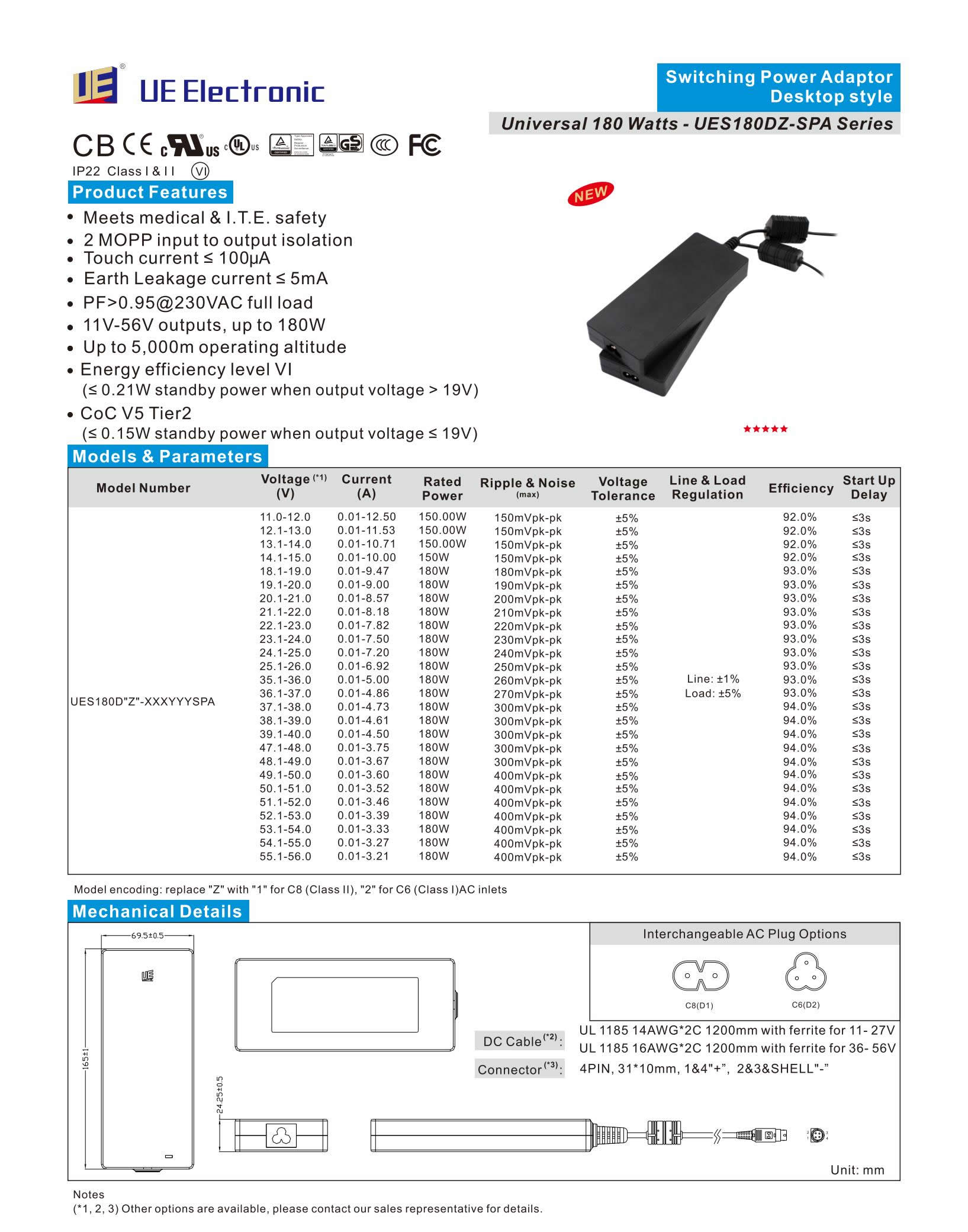

UES180DZ/Medical Power Adapter 180W

● Medical&I.T.E. safety approvals

● 2 MOPP input to output isolation

● Touch current≤100μA

● Earth Leakage current≤5mA

● PF>0.95@230VAC full load

● 11V-56V outputs, up to 180W

● Up to 5,000m operating altitude

● Energy efficiency level VI
(≤0.21W standby power when output voltage>19V)

● CoC V5 Tier2
(≤0.15W standby power when output voltage≤19V)

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.

Model UES180DZ-SPA Power 180W
Current 0.01-12.5A Output 11 - 56V
Size 165.0(L) 69.5.0(W) 24.25(H)mm
Contact us


Model and Ratings
Model
Voltage（V）
Current（A）
Rated powerRipple & Noise(max)
Voltage Tolerance
UES180D"Z"-XXXYYYSPA11.0-12.00.01-12.50150W150mVpk-pk±5%
12.1-13.00.01-11.53150W150mVpk-pk±5%
13.1-14.00.01-10.71150W150mVpk-pk±5%
14.1-15.00.01-10.00150W150mVpk-pk±5%
18.1-19.00.01-9.47180W180mVpk-pk±5%
19.1-20.00.01-9.00180W190mVpk-pk±5%
20.1-21.00.01-8.57180W200mVpk-pk±5%
21.1-22.00.01-8.18180W210mVpk-pk±5%
22.1-23.00.01-7.82180W220mVpk-pk±5%
23.1-24.00.01-7.50180W230mVpk-pk±5%
24.1-25.00.01-7.20180W240mVpk-pk±5%
25.1-26.00.01-6.92180W250mVpk-pk±5%
35.1-36.00.01-5.00180W260mVpk-pk±5%
36.1-37.00.01-4.86180W270mVpk-pk±5%
37.1-38.00.01-4.73180W300mVpk-pk±5%
38.1-39.00.01-4.61180W300mVpk-pk±5%
39.1-40.00.01-4.50180W300mVpk-pk±5%
47.1-48.00.01-3.75180W300mVpk-pk±5%
48.1-49.00.01-3.67180W300mVpk-pk±5%
49.1-50.00.01-3.60180W400mVpk-pk±5%
50.1-51.00.01-3.52180W400mVpk-pk±5%
51.1-52.00.01-3.46180W400mVpk-pk±5%
52.1-53.00.01-3.39180W400mVpk-pk±5%
53.1-54.00.01-3.33180W400mVpk-pk±5%
54.1-55.00.01-3.27180W400mVpk-pk±5%
55.1-56.00.01-3.21180W400mVpk-pk±5%

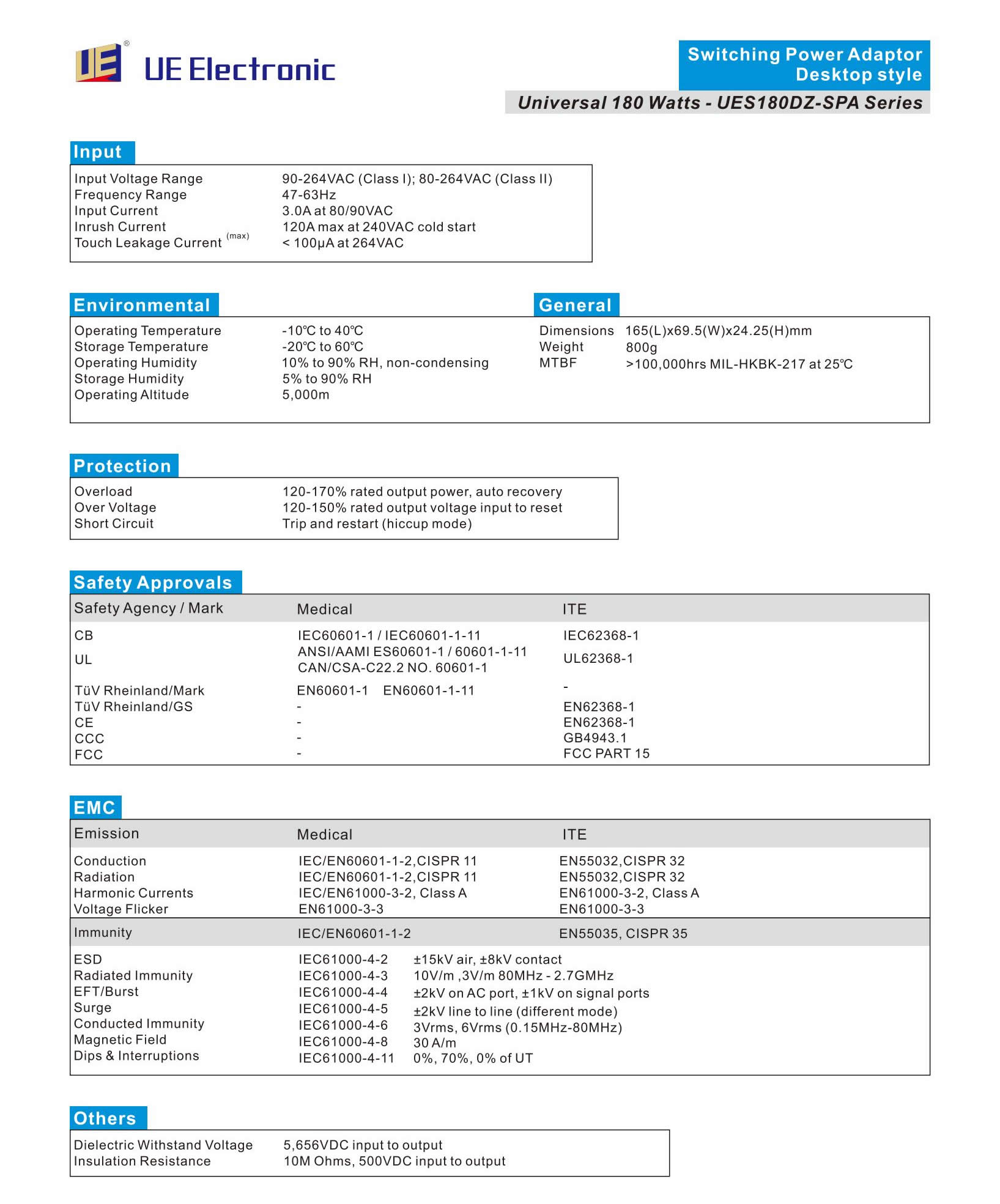

Input
Input Voltage Range
90-264VAC(Class I); 80-264VAC(Class II)
Frequency Range47-63Hz
Input Current
3.0A at 80/90VAC
Inrush Current
120A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature
-10 ℃ to 40 ℃
Storage Temperature
-20 ℃ to 60 ℃
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
5% to 90% RH
Operating Altitude
5,000m
General
Dimensions
165.0(L) 69.5.0(W) 24.25(H)mm
Weight
800g
MTBF
＞100,000hrs MIL-HDBK-217 at 25℃

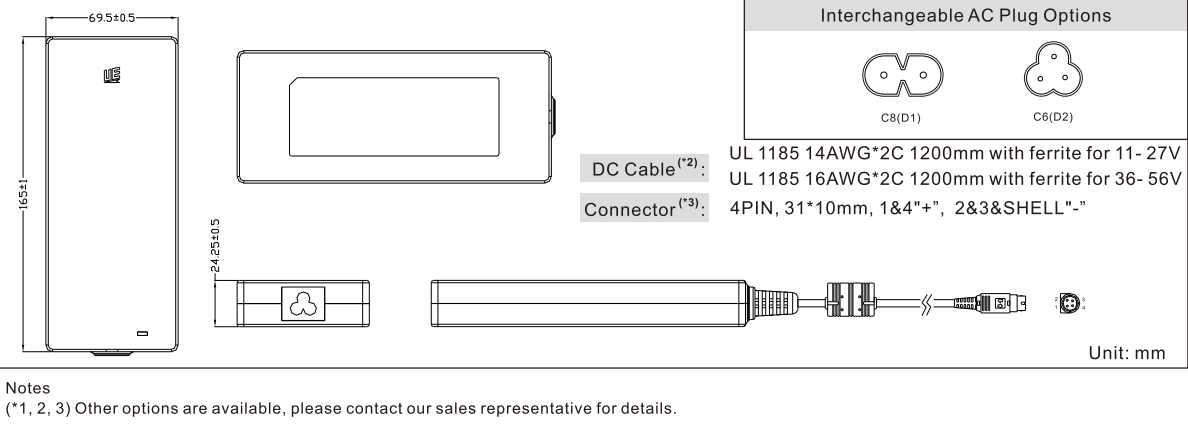

Mechanical Details
