UES240/Medical Power Supply 240W

● Medical safety approvals

● 2 MOPP input to output isolation

● Touch current:≤100μA

● Energy efficiency level VI

● ≤0.5W standby power

● Peak Load:150% Rated Load @230Vac

● Up to 5,000m operating altitude

● Fan less design, natural air cooling

● We are a professional medical power supply wholesaler. These products are power supplies for medical devices. They are sold directly from the factory with low prices, fast delivery, and have safety certifications from various countries.

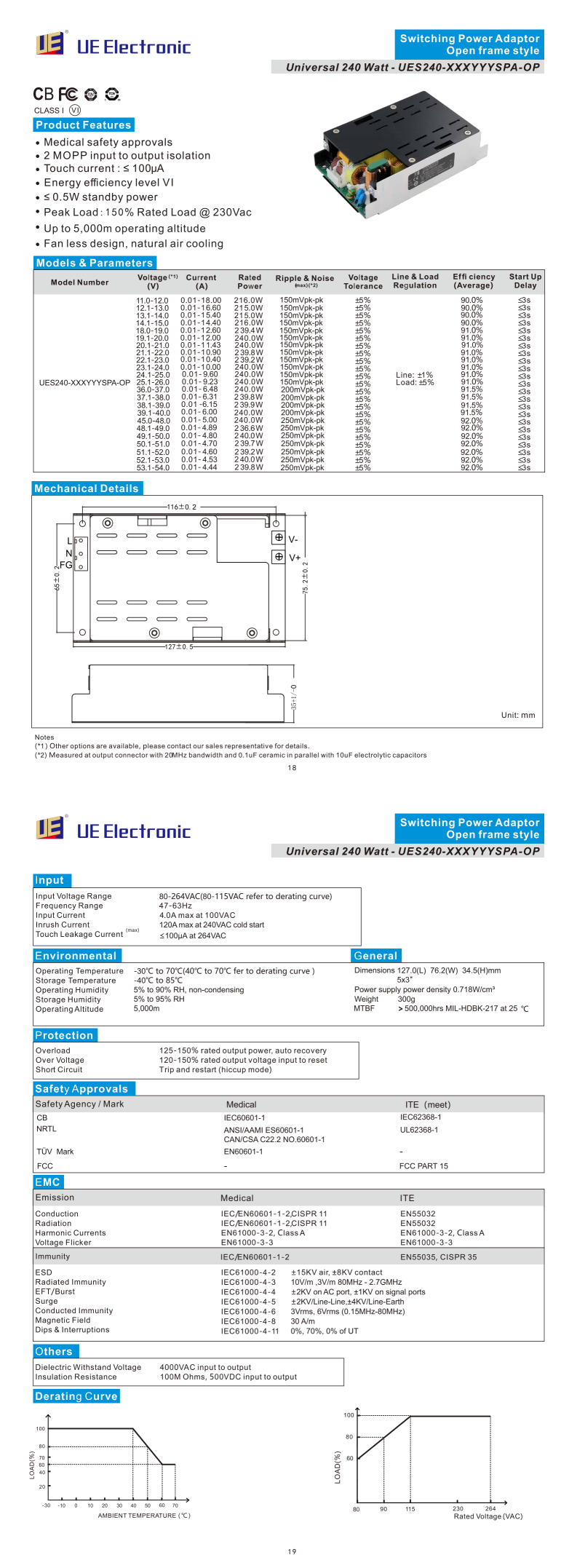

Model UES240-XXXYYYSPA-OP Power 240W
Current 0.01-18.00A Output 11.0-54.0V
Size 127.0(L) 76.2(W) 34.5(H)mm
Contact us


Model and Ratings
Model
Voltage（V）
Current（A）
Rated powerRipple & Noise(max)
Voltage Tolerance
UES240-XXXYYYSPA-OP
11.0-12.00.01-18.00216.0W150mVpk-pk±5%
12.1-13.00.01-16.60215.0W150mVpk-pk±5%
13.1-14.00.01-15.40215.0W150mVpk-pk±5%
14.1-15.00.01-14.40216.0W150mVpk-pk±5%
18.0-19.00.01-12.60239.4W150mVpk-pk±5%
19.1-20.00.01-12.00240.0W150mVpk-pk±5%
20.1-21.00.01-11.43240.0W150mVpk-pk±5%
21.1-22.00.01-10.90239.8W150mVpk-pk±5%
22.1-23.00.01-10.40239.2W150mVpk-pk±5%
23.1-24.00.01-10.00240.0W150mVpk-pk±5%
24.1-25.00.01-9.60240.0W150mVpk-pk±5%
25.1-26.00.01-9.23240.0W150mVpk-pk±5%
36.0-37.00.01-6.48240.0W200mVpk-pk±5%
37.1-38.00.01-6.31239.8W200mVpk-pk±5%
38.1-39.00.01-6.15239.9W200mVpk-pk±5%
39.1-40.00.01-6.00240.0W200mVpk-pk±5%
45.0-48.00.01-5.00240.0W250mVpk-pk±5%
48.1-49.00.01-4.89236.6W250mVpk-pk±5%
49.1-50.00.01-4.80240.0W250mVpk-pk±5%
50.1-51.00.01-4.70239.7W250mVpk-pk±5%
51.1-52.00.01-4.60239.2W250mVpk-pk±5%
52.1-53.00.01-4.53240.0W250mVpk-pk±5%
53.1-54.00.01-4.44239.8W250mVpk-pk±5%
Input
Input Voltage Range
80-264VAC(80-115VAC refer to derating curve）
Frequency Range47-63Hz
Input Current
4.0A max at 100VAC
Inrush Current
120A max at 240VAC cold start
Touch Leakage Current (max)
≤100μA at 264VAC
Environmental
Operating Temperature

-30 ℃ to 70 ℃（ 40 ℃ to 70 ℃ fer to derating curve)

Storage Temperature
-40 ℃ to 85 ℃
Operating Humidity
5% to 90% RH, non-condensing
Storage Humidity
5% to 95% RH
Operating Altitude
5,000m
General
Dimensions
127.0(L) 76.2(W) 34.5(H)mm
Weight
300g
MTBF
＞500,000hrs MIL-HDBK-217 at 25℃

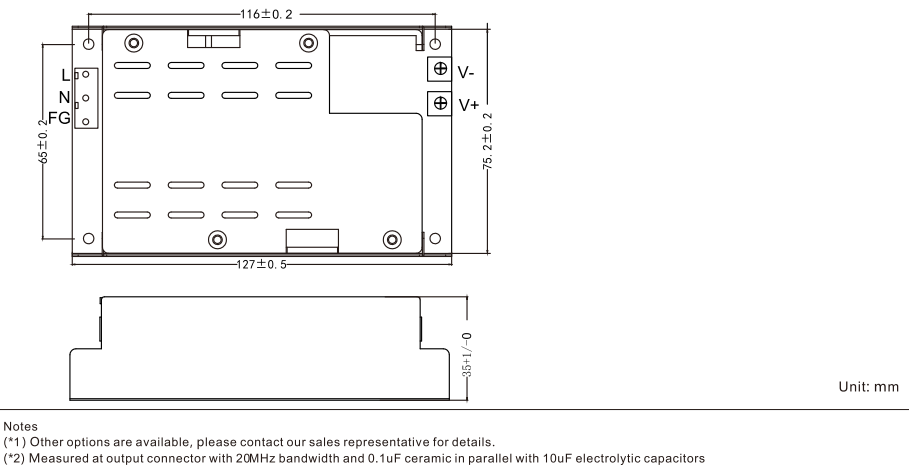

Mechanical Details
