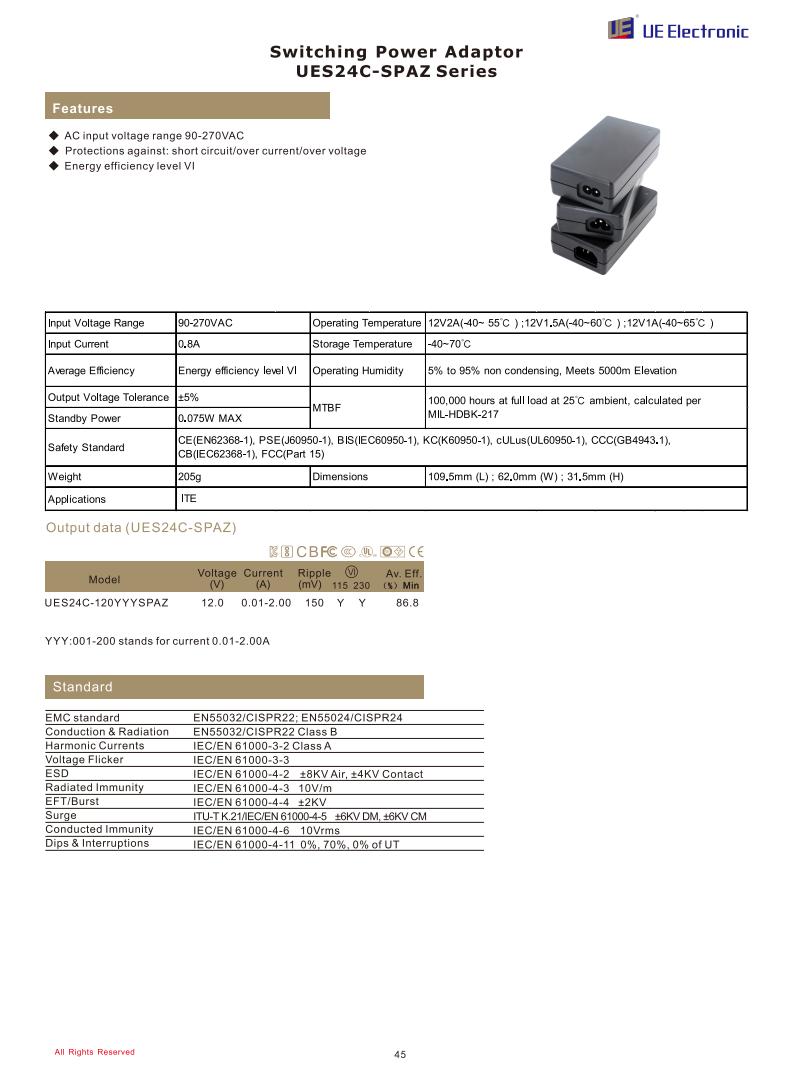

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES24C-120YYYSPAZ | 12.0 | 0.01-2.00 | 150 | 86.8 |
| YYY:001-200 stands for current 0.012-2.00A | ||||
| Others | ||||
| Input Voltage Range | 90-270VAC | |||
| Input Current | 0.8A | |||
| Output Voltage Tolerance | ±5% | |||
| Standby Power | 0.075W MAX | |||
| Safety Standard | CE(EN62368-1), CB(IEC62368-1), BIS(IEC60950-1), PSE(J62368-1), us(UL62368-1), CCC(GB4943.1), CCC(GB4943.1), KC(K60950-1) | |||
| Environmental | ||||
| Operating Temperature | 12V2A(-40~55℃）；12V1.5A(-40~60℃）；12V1A(-40~65℃） | |||
| Storage Temperature | -40~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | 205g | |||
| Dimensions | 109.5(L) 62.0(W) 31.5(H) | |||
| MTBF | 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
