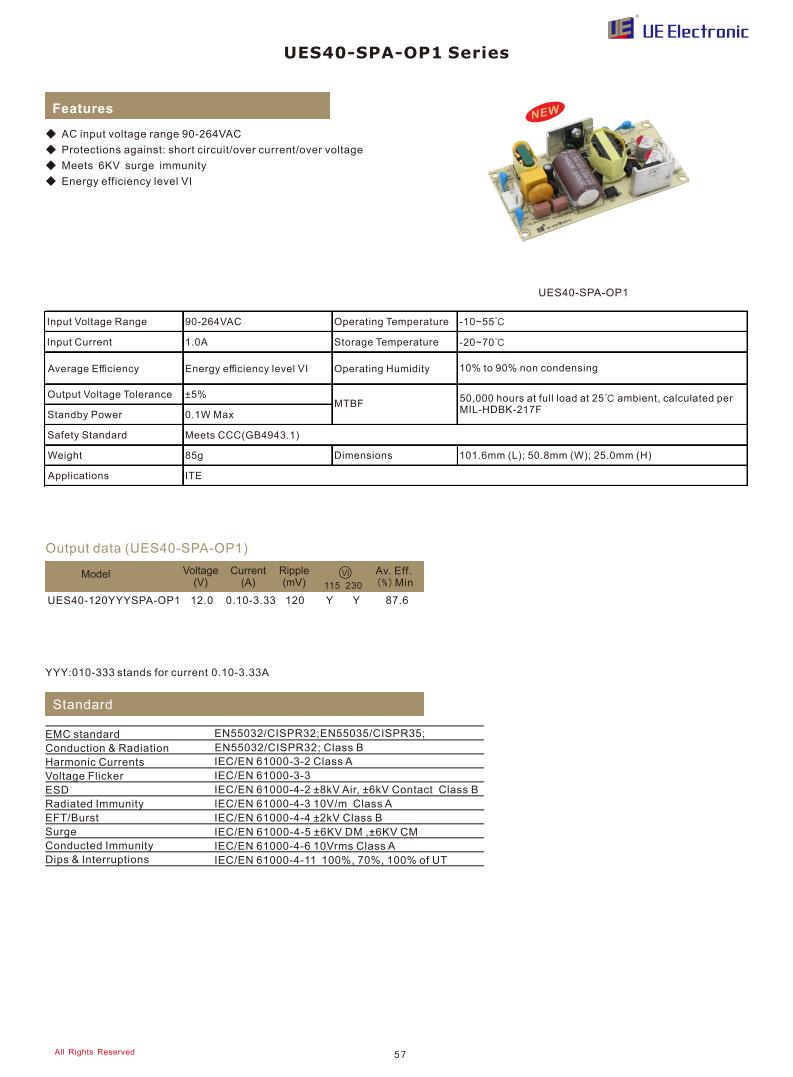

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES40-SPA-OP1 | 12.0 | 0.10-3.33 | 120 | 87.6 |
| YYY: 010-333 stand for current 0,10-3.33A | ||||
| Others | ||||
| Input Voltage Range | 90-264VAC | |||
| Input Current | 1.0A | |||
| Output Voltage Tolerance | ±5% | |||
| Standby Power | 0.1W Max | |||
| Safety Standard | CCC(GB4943.1) | |||
| Environmental | ||||
| Operating Temperature | -10~55℃ | |||
| Storage Temperature | -20~70℃ | |||
| Operating Humidy | 10% to 90% non condensing | |||
| General | ||||
| Weigh | 85g | |||
| Dimensions | 101.6(L) 50.8(W) 25.0(H)mm | |||
| MTBF | 50,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
