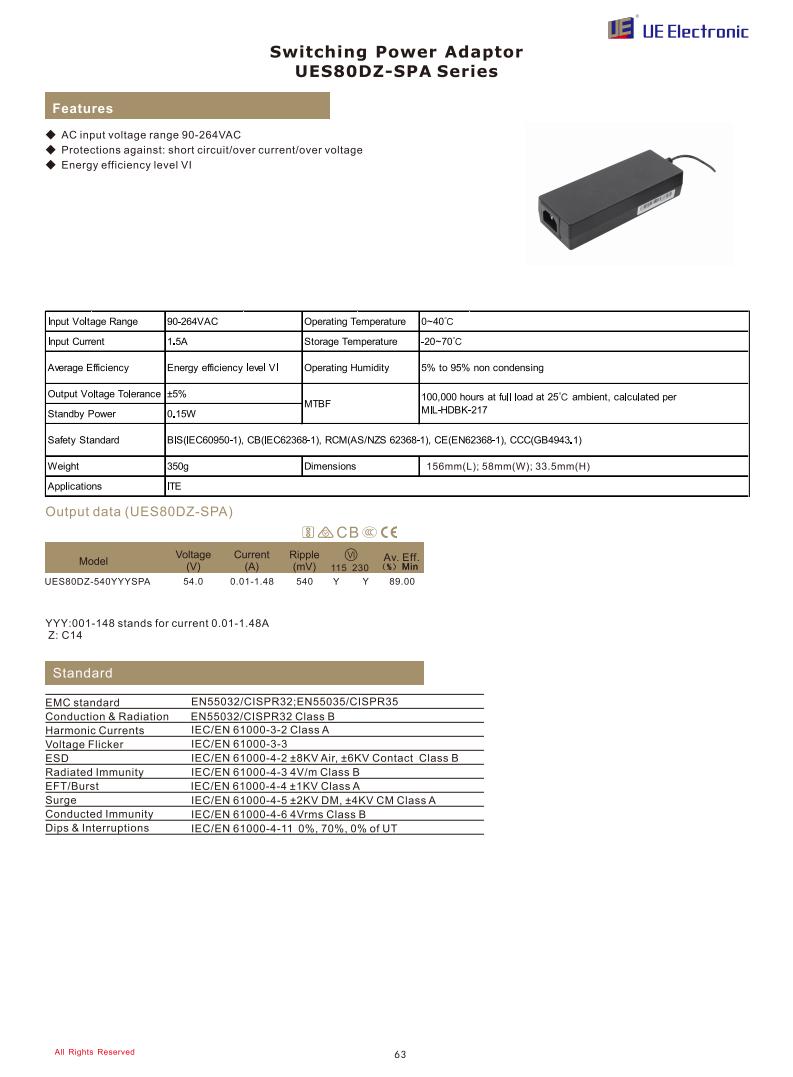

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES80DZ-540YYYSPA | 54.0 | 0.01-1.48 | 540 | 89.00 |
| YYY: 001-148 stand for current 0.01-1.48A | ||||
| Others | ||||
| Input Voltage Range | 90-264VAC | |||
| Input Current | 1.5A | |||
| Output Voltage Tolerance | ±5% | |||
| Standby Power | 0.15W | |||
| Safety Standard | BIS(IEC60950-1),CB(IEC62368-1), RCM(AS/NZS62368.1), CE(EN62368-1) | |||
| Environmental | ||||
| Operating Temperature | 0~40℃ | |||
| Storage Temperature | -20~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | 350g | |||
| Dimensions3 | 156(L) 58(W) 33.5(H)mm | |||
| MTBF | 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
