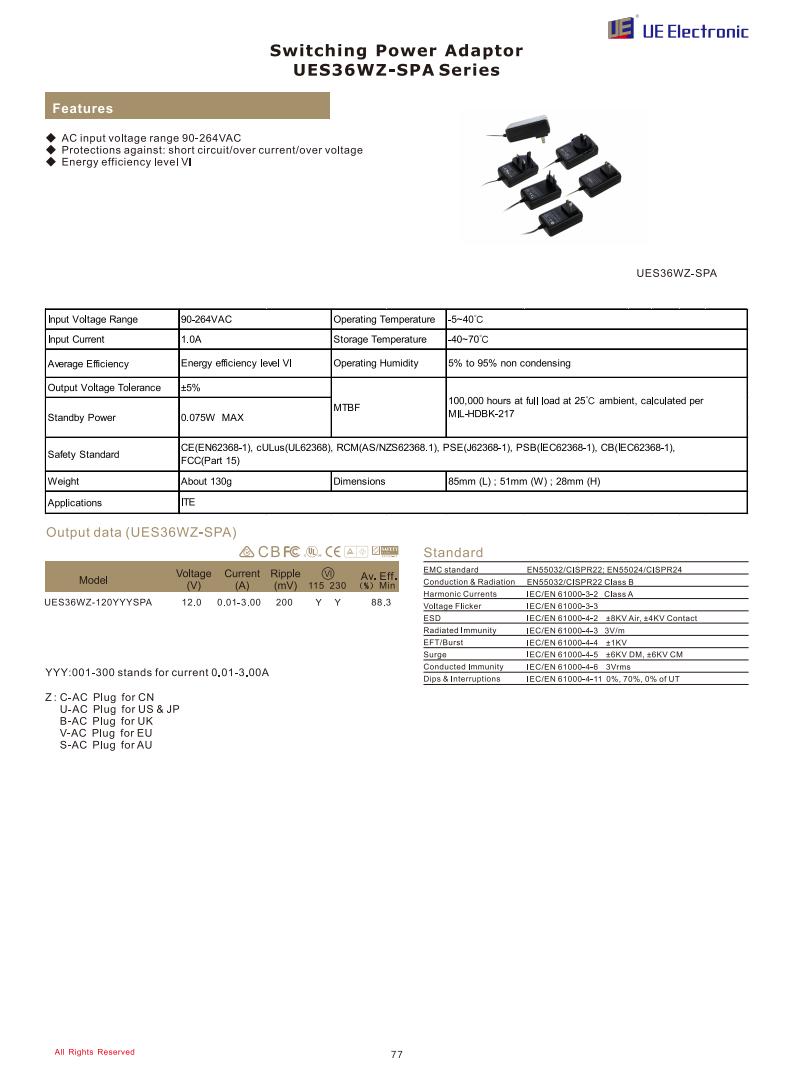

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES36WZ-120YYYSPA | 12.0 | 0.01-3.00 | 200 | 88.3 |
YYY: 001-300 stands for current 0.01-3.00A Z: C-AC Plug for CN U-AC Plug for US&JP B-AC Plug for UK V-AC Plug for EU S-AC Plug for AU | ||||
| Others | ||||
| Input Voltage Range | 90-264VAC | |||
| Input Current | 1.0A | |||
| Output Voltage Tolerance | ±5% | |||
| Standby Power | 0.075W MAX | |||
| Safety Standard | CE(EN62368-1), cULus(UL62368-1), RCM(AS/NZS62368.1), PSE(J62368-1), PSB(IEC60950-1), CB(IEC62368-1), | |||
| Environmental | ||||
| Operating Temperature | -5~40℃ | |||
| Storage Temperature | -40~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | About 130g | |||
| Dimensions | 85.0(L) 51.0(W) 28.0(H)mm | |||
| MTBF | 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
