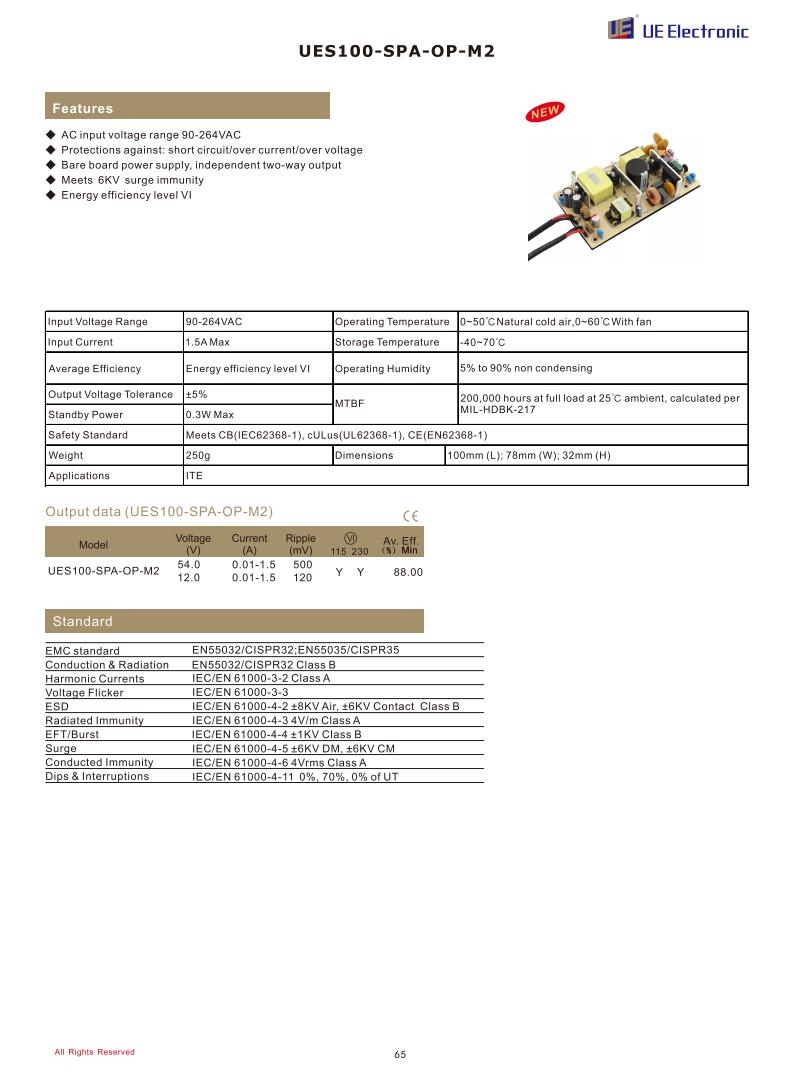

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES100-SPA-OP-M2 | 54.0 | 0.01-1.5 | 500 | 88.00 |
| 12.0 | 0.01-1.5 | 120 | 88.00 | |
| Others | ||||
| Input Voltage Range | 90-164VAC | |||
| Input Current | 1.5A MAX | |||
| Output Voltage Tolerance | ±5% | |||
| Standby Power | 0.3W MAX | |||
| Safety Standard | CB(IEC62368-1), cULus(UL62368-1), CE(EN62368-1) | |||
| Environmental | ||||
| Operating Temperature | 0~50℃ Natural cold air, 0~60℃ With fan | |||
| Storage Temperature | -40~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | 250g | |||
| Dimensions | 100(L) 78(W) 32(H)mm | |||
| MTBF | 200,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
