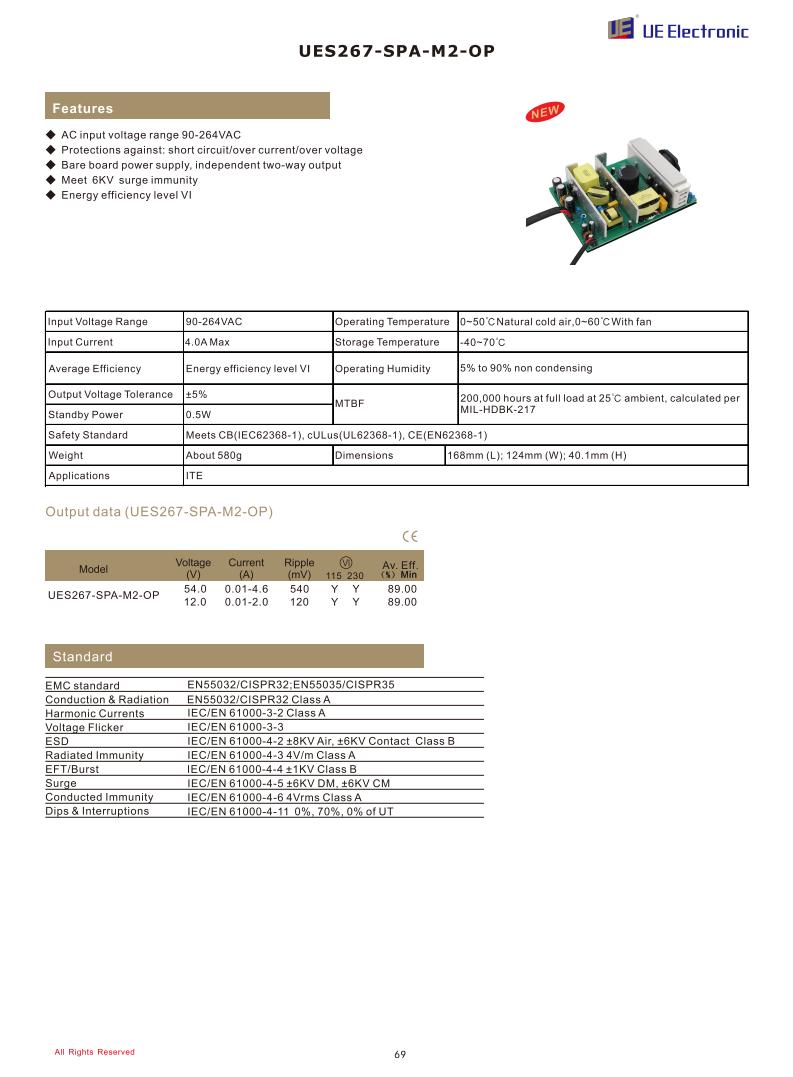

| Model and Ratings | ||||
| Model | Voltage（V） | Current（A） | Ripple (mV) | Av. Eff. (%)Min |
| UES267-SPA-M2-OP | 54.0 | 0.01-4.6 | 540 | 89.00 |
| 12.0 | 0.01-2.0 | 120 | 89.00 | |
| Others | ||||
| Input Voltage Range | 90-264VAC | |||
| Input Current | 4.0A MAX | |||
| Output Voltage Tolerance | ±5% | |||
| Safety Standard | CB(IEC62368-1), cULus(UL62368-1), CE(EN62368-1) | |||
| Standby Power | 0.5W | |||
| Environmental | ||||
| Operating Temperature | 0~50℃ Natural cold air, 0~60℃ With fam | |||
| Storage Temperature | -40~70℃ | |||
| Operating Humidy | 5% to 95% non condensing | |||
| General | ||||
| Weigh | About 580g | |||
| Dimensions | 168(L) 124(W) 40.1(H)mm | |||
| MTBF | 200,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217 | |||
