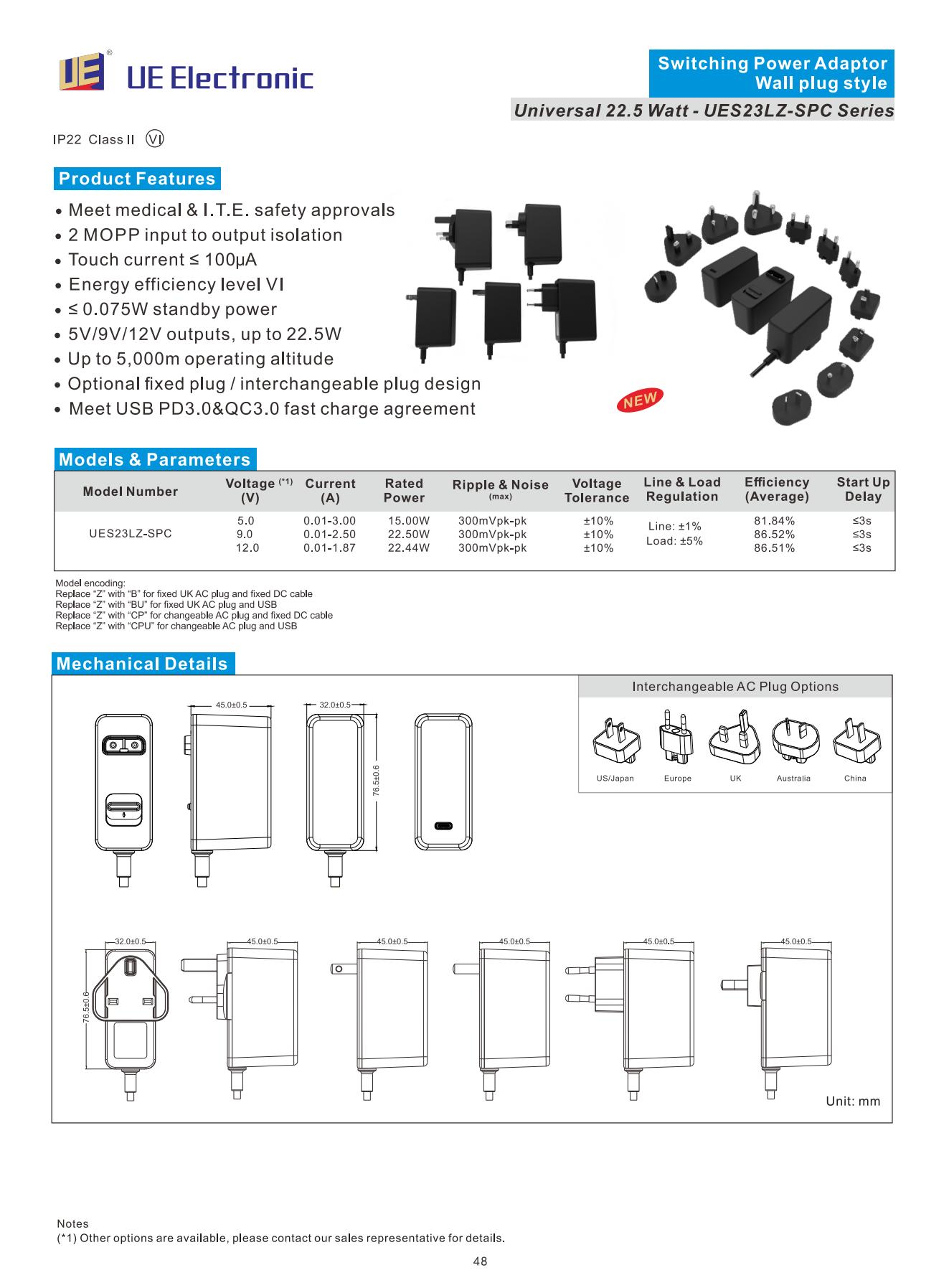

| Model Number | Voltage(*1) (V) | Current (A) | Rated Power | Ripple &Noise (max) | Voltage Tolerance | Line &Load Regulation | Efficiency (Average) | Start Up Delay | ||||
| UES23LZ-SPC | 5.0 | 0.01-3.00 | 15.00W | 300mVpk-pk | ±10% | Line:±1% Load:±5% | 81.84% | ≤3s | ||||
| 9.0 | 0.01-2.50 | 22.50W | 300mVpk-pk | ±10% | 86.52% | ≤3s | ||||||
| 12.0 | 0.01-1.87 | 22.44W | 300mVpk-pk | ±10% | 86.51% | ≤3s | ||||||

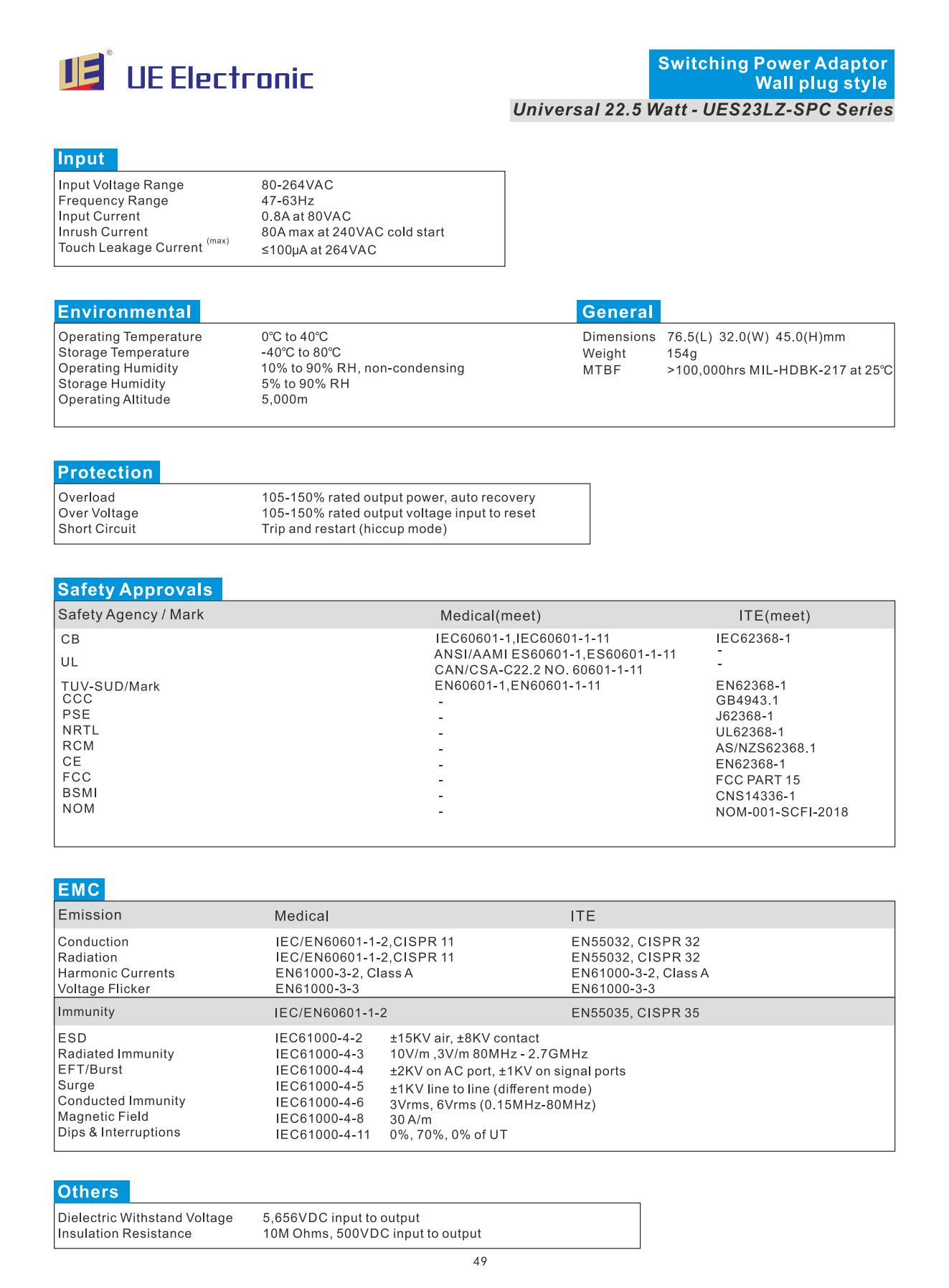

| Environmental | General | |||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 76.5(L)32.0(W)45.0(H)mm | |||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 154g | |||||||||
| Operating Humidity | 10%to 90%RH,non-condensing | MTBF | >100,000hrs MIL-HDBK-217 at 25℃ | |||||||||
| Storage Humidity | 5%to 90%RH | |||||||||||
| Operating Altitude | 5,000m | |||||||||||
| Safety Approvals | ||||||||||||
| Safety Agency /Mark | Medical(meet) | ITE(meet) | ||||||||||
| CB | IEC60601-1,IEC60601-1-11 | IEC62368-1 | ||||||||||
| UL | ANSI/AAMIES60601-1,ES60601-1-11 CAN/CSA-C22.2 N0.60601-1-11 | |||||||||||
| TUV-SUD/Mark CCC | EN60601-1,EN60601-1-11 | EN62368-1 GB4943.1 | ||||||||||
| PSE | J62368-1 | |||||||||||
| NRTL | UL62368-1 | |||||||||||
| RCM | AS/NZS62368.1 | |||||||||||
| CE | EN62368-1 | |||||||||||
| FCC | FCC PART 15 | |||||||||||
| BSMI | CNS14336-1 | |||||||||||
| NOM | NOM-001-SCFI-2018 | |||||||||||
| EMC | ||||||||||||
| Emission | Medical | ITE | ||||||||||
| Conduction | IEC/EN60601-1-2,CISPR 11 | EN55032,CISPR 32 | ||||||||||
| Radiation | IEC/EN60601-1-2,CISPR 11 | EN55032,CISPR 32 | ||||||||||
| Harmonic Currents | EN61000-3-2,Class A | EN61000-3-2,Class A | ||||||||||
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 | ||||||||||
| Immunity | IEC/EN60601-1-2 | EN55035,CISPR 35 | ||||||||||
| ESD | IEC61000-4-2 ±15KVair,±8KV contact | |||||||||||
| Radiated Immunity | IEC61000-4-3 10V/m,3V/m 80MHz-2.7GMHz | |||||||||||
| EFT/Burst | IEC61000-4-4 ±2KVon AC port,±1KVon signal ports | |||||||||||
| Surge | IEC61000-4-5 ±1KV line to line(different mode) | |||||||||||
| Conducted Immunity | IEC61000-4-6 3Vrms,6Vrms(0.15MHz-80MHz) | |||||||||||
| Magnetic Field | IEC61000-4-8 30A/m | |||||||||||
| Dips &Interruptions | IEC61000-4-11 0%,70%,0%of UT | |||||||||||
| Others Dielectric Withstand Voltage 5,656VDC input to output Insulation Resistance 10M Ohms,500VDC input to output | ||||||||||||
