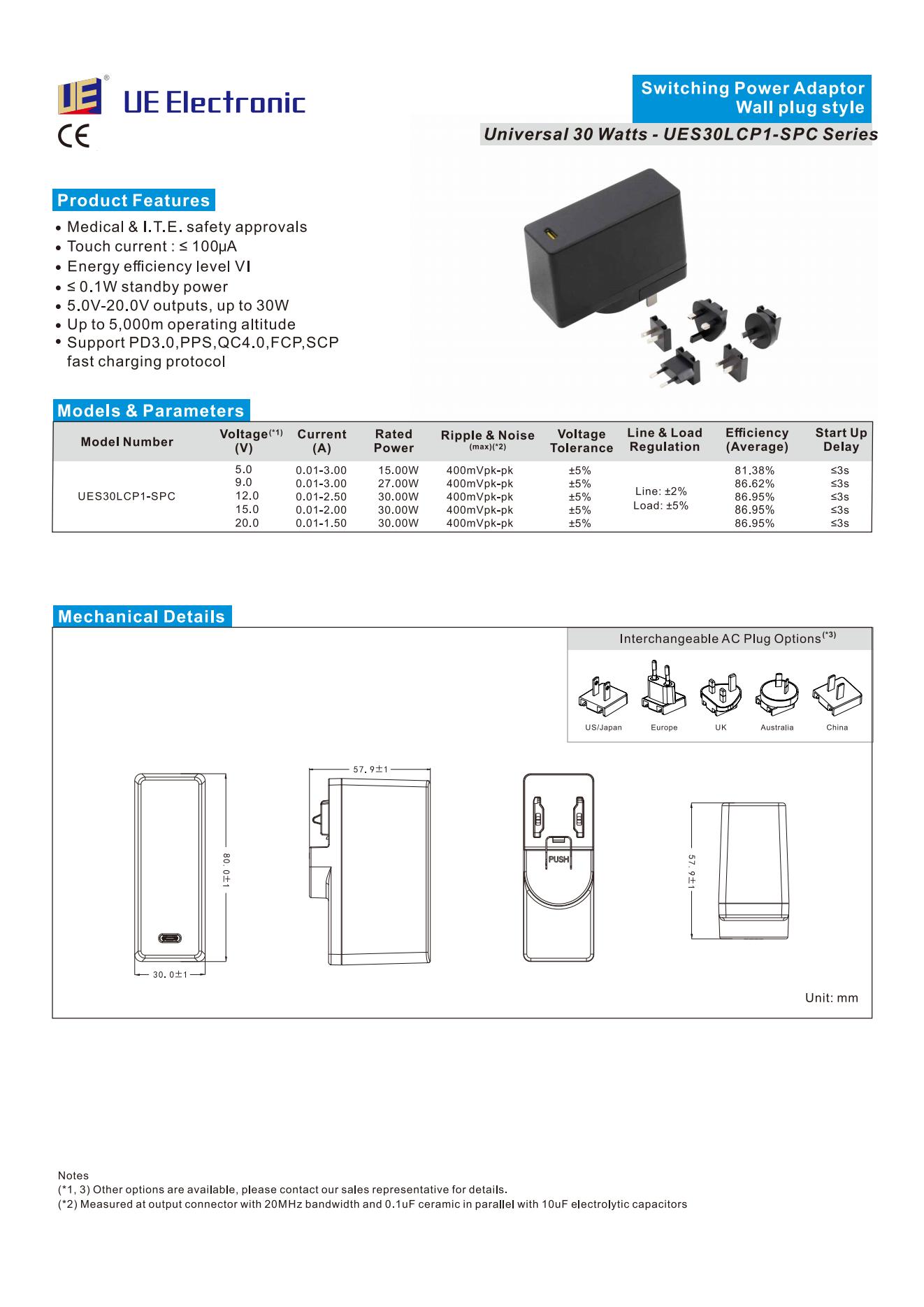

| ModelNumber | Voltage(*1) (V) | Current (A) | Rated Power | Ripple &Noise (max)(*2) | Voltage Tolerance | Line &Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||
| UES30LCP1-SPC | 5.0 | 0.01-3.00 | 15.00W | 400mVpk-pk | ±5% | Line:±2% Load:±5% | 81.38% | ≤3s | |||||||||||
| 9.0 | 0.01-3.00 | 27.00W | 400mVpk-pk | ±5% | 86.62% | ≤3s | |||||||||||||
| 12.0 | 0.01-2.50 | 30.00W | 400mVpk-pk | ±5% | 86.95% | ≤3s | |||||||||||||
| 15.0 | 0.01-2.00 | 30.00W | 400mVpk-pk | ±5% | 86.95% | ≤3s | |||||||||||||
| 20.0 | 0.01-1.50 | 30.00W | 400mVpk-pk | ±5% | 86.95% | ≤3s | |||||||||||||

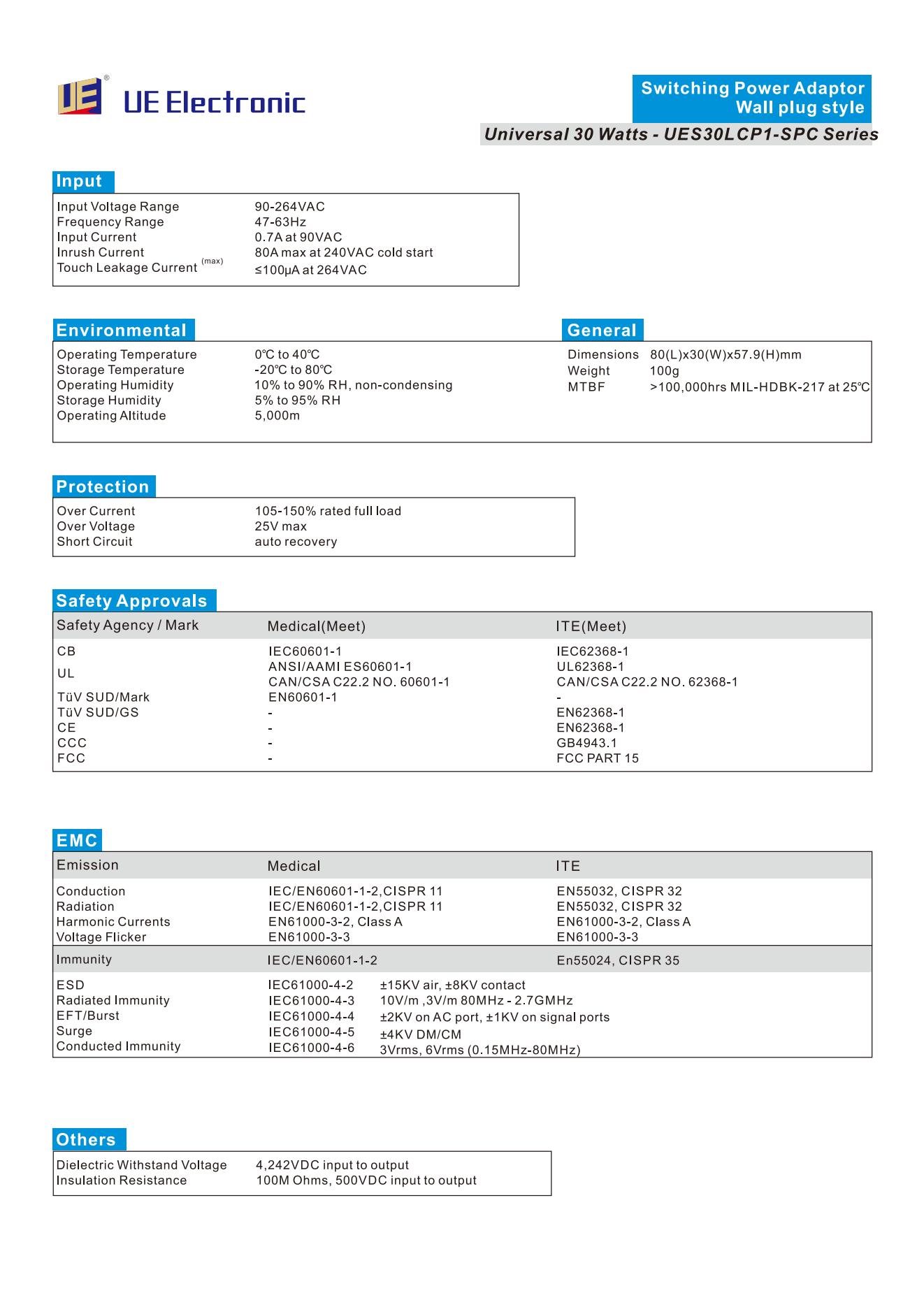

| Environmental | General | |||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 80(L)x30(W)x57.9(H)mm | |||||||||
| Storage Temperature | -20℃ to 80℃ | Weight | 100g | |||||||||
| Operating Humidity Storage Humidity | 10%to 90%RH,non-condensing 5%to 95%RH | MTBF | >100,000hrs MIL-HDBK-217 at 25℃ | |||||||||
| Operating Altitude | 5,000m | |||||||||||
| Safety Approvals | ||||||||||||
| Safety Agency /Mark | Medical(Meet) | ITE(Meet) | ||||||||||
| CB | IEC60601-1 | IEC62368-1 | ||||||||||
| UL TüV SUD/Mark | ANSI/AAMIES60601-1 | UL62368-1 | ||||||||||
| CAN/CSA C22.2 NO.60601-1 EN60601-1 | CAN/CSA C22.2 NO.62368-1 | |||||||||||
| Tüv SUD/GS | EN62368-1 | |||||||||||
| CE | EN62368-1 | |||||||||||
| CCC | GB4943.1 | |||||||||||
| FCC | FCC PART15 | |||||||||||
| EMC | |||||||||||
| Emission | Medical ITE | IEC | |||||||||
| Conduction | IEC/EN60601-1-2,CISPR 11 EN55032,CISPR 32 | ||||||||||
| Radiation | IEC/EN60601-1-2,CISPR 11 EN55032,CISPR 32 | ||||||||||
| Harmonic Currents Voltage Flicker | EN61000-3-2,Class A EN61000-3-3 | EN61000-3-2,Class A EN61000-3-3 | |||||||||
| Immunity | IEC/EN60601-1-2 En55024,CISPR 35 | ||||||||||
| ESD | IEC61000-4-2 ±15KV air,±8KV contact | ||||||||||
| Radiated Immunity | IEC61000-4-3 10V/m,3V/m 80MHz-2.7GMHz | ||||||||||
| EFT/Burst | IEC61000-4-4 ±2KVon AC port,±1KVonsignal ports | ||||||||||
| Surge | IEC61000-4-5 ±4KV DM/CM | ||||||||||
| Conducted Immunity | IEC61000-4-6 3Vrms,6Vrms (0.15MHz-80MHz) | ||||||||||
| Others Dielectric Withstand Voltage 4,242VDC input to output Insulation Resistance 100M Ohms,500VDC input to output |
