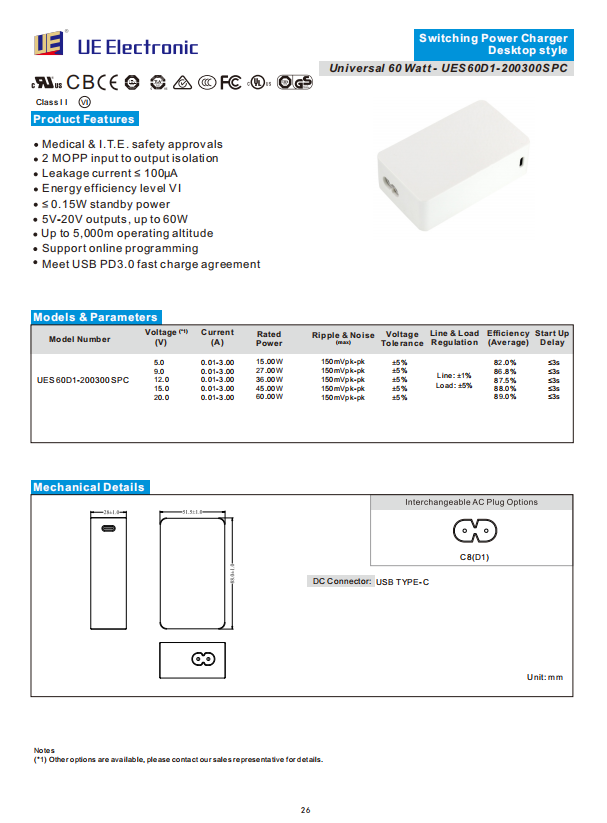

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | ||||||||
UES60D1-200300SPC | 5 .0 9 .0 12 .0 15 .0 20 .0 | 0 .01-3 .00 0 .01-3 .00 0 .01-3 .00 0 .01-3 .00 0 .01-3 .00 | 15 .00W 27 .00W 36 .00W 45 .00W 60 .00W | 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk | ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load : ±5% | 82 .0 % 86 .8 % 87 .5 % 88 .0 % 89 .0 % | ≤3s ≤3s ≤3s ≤3s ≤3s | ||||||||

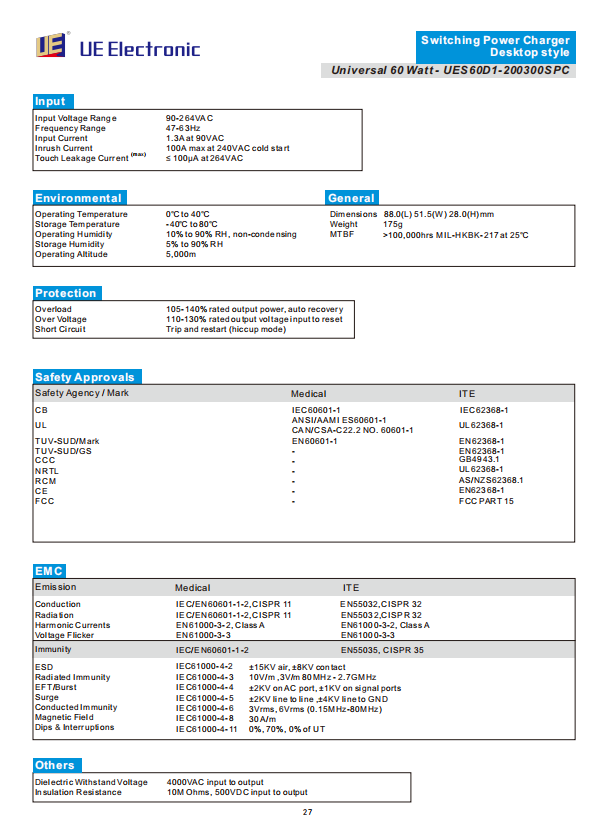

| Environmental | General | ||||||||||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 88.0 ( L ) 51 .5 (W ) 28 .0 ( H ) mm | ||||||||||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 175g | ||||||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100 ,000hrs MIL- HKBK-217 at 25℃ | ||||||||||||||||
| Storage Humidity | 5 % to 90% RH | ||||||||||||||||||
| Operating Altitude | 5 ,000m | ||||||||||||||||||
| Safety Approvals | |||||||||||||||||||
| Safety Agency / Mark | Medical | ITE | |||||||||||||||||
| CB | IEC60601- 1 | IEC62368- 1 | |||||||||||||||||
| UL | ANSI/AAMI ES60601- 1 CAN/ CSA-C22 .2 NO. 60601- 1 | UL62368- 1 | |||||||||||||||||
| TUV-SUD/ Mark | EN60601- 1 | EN62368- 1 | |||||||||||||||||
| TUV-SUD/ GS | - | EN62368- 1 | |||||||||||||||||
| CCC | - | GB4943 . 1 | |||||||||||||||||
| NRTL | - | UL62368- 1 | |||||||||||||||||
| RCM | - | AS/ NZS62368 . 1 | |||||||||||||||||
| CE | - | EN62368- 1 | |||||||||||||||||
| FCC | - | FCC PART 15 | |||||||||||||||||
| EMC | |||||||||||||||||||
| Emission Medical ITE | |||||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | |||||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | |||||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | |||||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | |||||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | |||||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | |||||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/ m ,3V/ m 80MHz - 2 .7GMHz | |||||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | |||||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±2KV line to line ,±4KV line to GND 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | |||||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | |||||||||||||||||||
| Others | |||||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | ||||||||||||||||||
