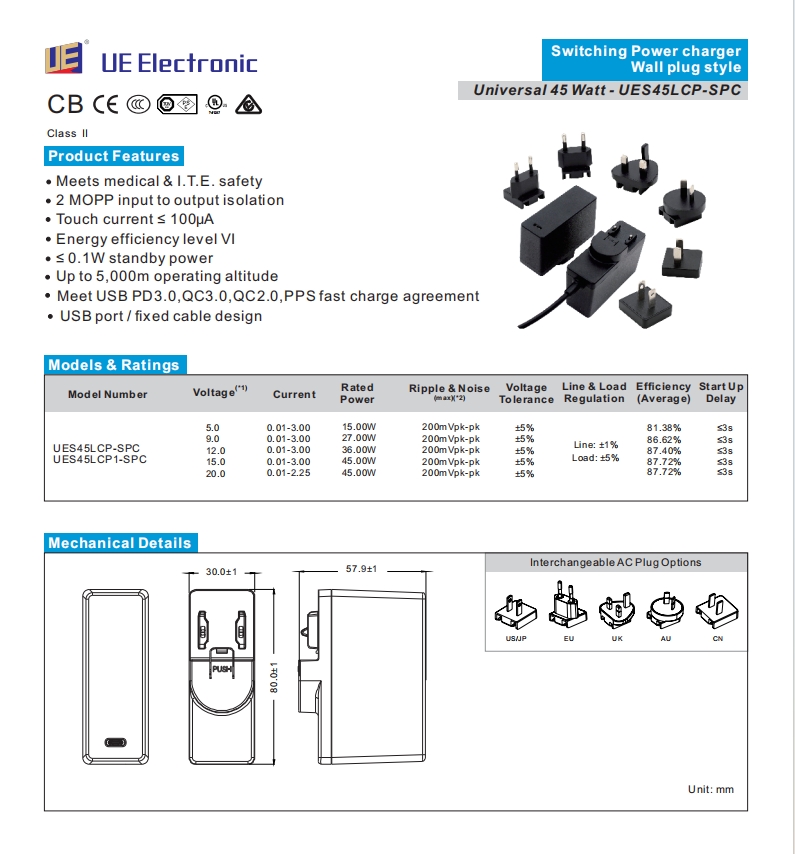

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES45LCP-SPC UES45LCP1-SPC | 5 .0 9 .0 12 .0 15 .0 20 .0 | 0 .01-3 .00 0 .01-3 .00 0 .01-3.00 0 .01-3.00 0 .01-2.25 | 15 .00W 27 .00W 36 .00W 45 .00W 45 .00W | 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk | ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load : ±5% | 81.38 % 86 .62 % 87.40 % 87.72 % 87.72 % | ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | -20℃ to 50℃(Refer to the derating curve diagram) | Dimensions | 80.0(L) 30.0(W) 57.9(H)mm | |||||||||||||
| Storage Temperature | -30℃ to 60℃ | Weight | 125g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >60,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 105-130% rated output power, auto recovery Min 120% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1:2005/AmD2:2020 | IEC62368- 1 | ||||||||||||||
| UL | ANSI/AAMIES60601-1:2005/AmD2:2021 CAN/CSA C22.2 NO. 60601-1 | UL62368-1 CAN/CSA C22.2 NO. 62368-1 | ||||||||||||||
| TüV-SUD/ Mark | EN60601-1:2006/A2:2021 | - | ||||||||||||||
| PSE | - | J62368 | ||||||||||||||
| RCM | - | AS/NZS 62368.1 | ||||||||||||||
| CE | - | EN62368-1 | ||||||||||||||
| CCC | - | GB4943 . 1 | ||||||||||||||
| FCC | - | FCC PART 15 | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line (different mode) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 100M Ohms , 500VDC input to output | |||||||||||||||
