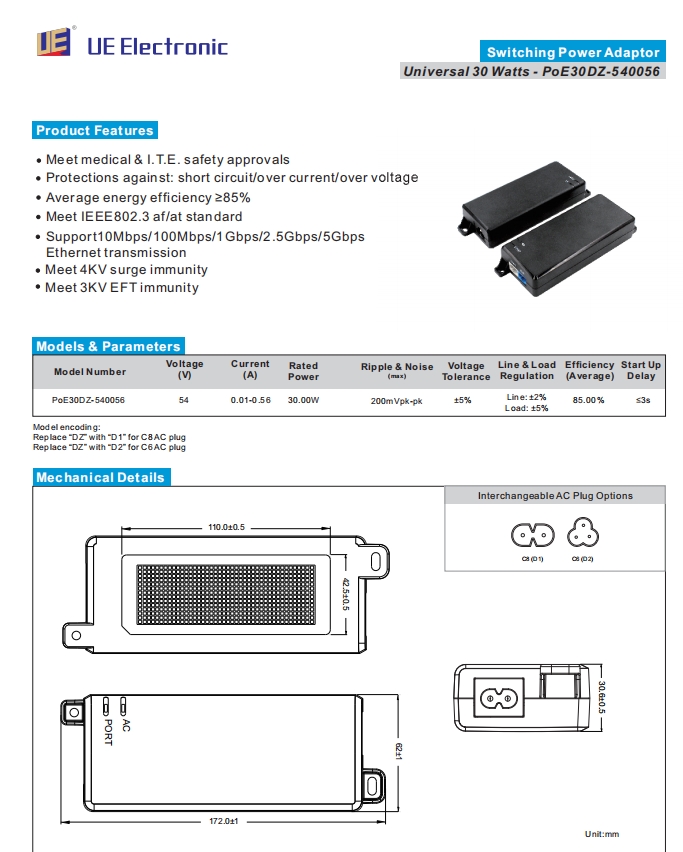

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
POE30DZ-540056 | 54.0 | 0 .01-0.56 | 30.00W | 200mVpk-pk | ±5% | Line: ±2% Load : ±5% | 85.0 % | ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 172.0(L) 62.0(W) 30.6(H)mm | |||||||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 200g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 103-140% rated output power, auto recovery 60V MAX Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1 | IEC62368- 1 | ||||||||||||||
| UL | ANSI/AAMIES60601-1:2005/AmD2:2021 CAN/CSA C22.2 NO. 60601-1 | - | ||||||||||||||
| TüV-SUD/ Mark | EN60601-1 | EN62368-1 | ||||||||||||||
| TUV-SUD/GS | - | EN62368-1 | ||||||||||||||
| PSE | - | J62368-1 | ||||||||||||||
| RCM | - | AS/NZS 62368.1 | ||||||||||||||
| CE | - | EN62368-1 | ||||||||||||||
| CCC | - | GB4943 . 1 | ||||||||||||||
| FCC | - | FCC PART 15 | ||||||||||||||
| NOM | - | NOM-001-SCFI-2018 | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line ,±1KV line to GND 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
