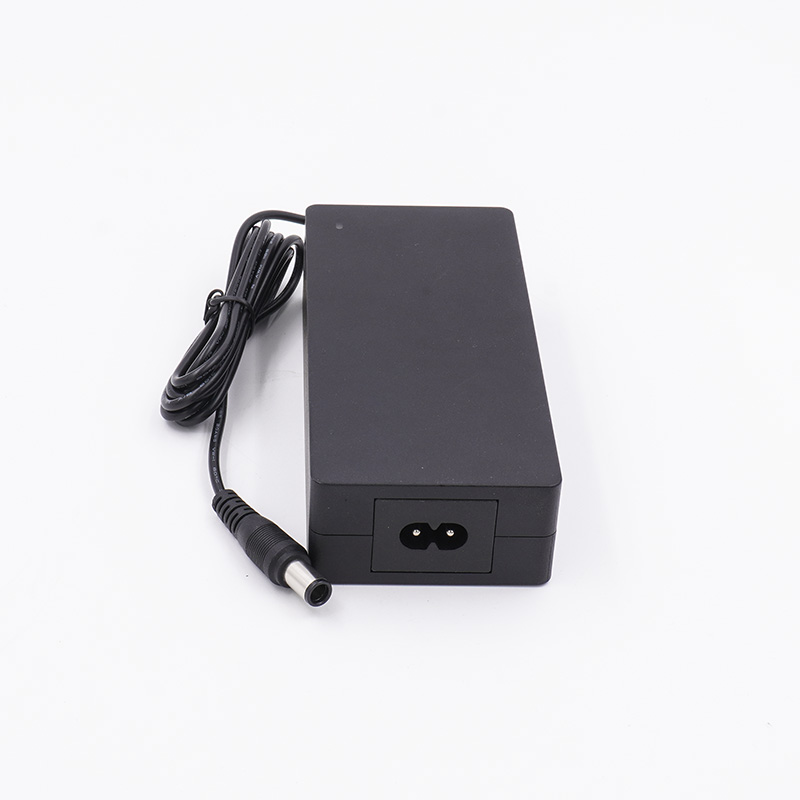

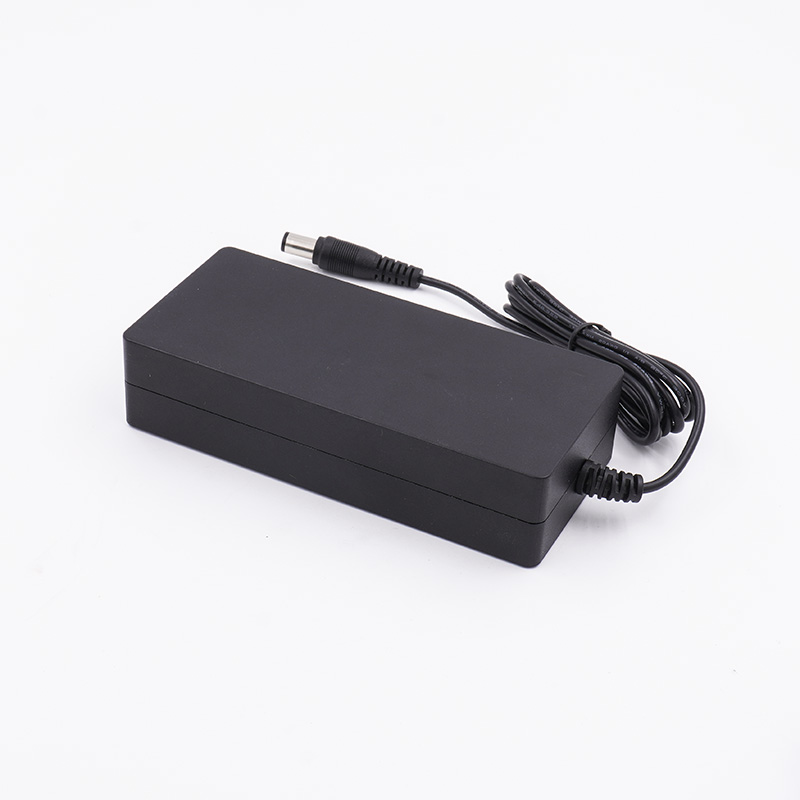

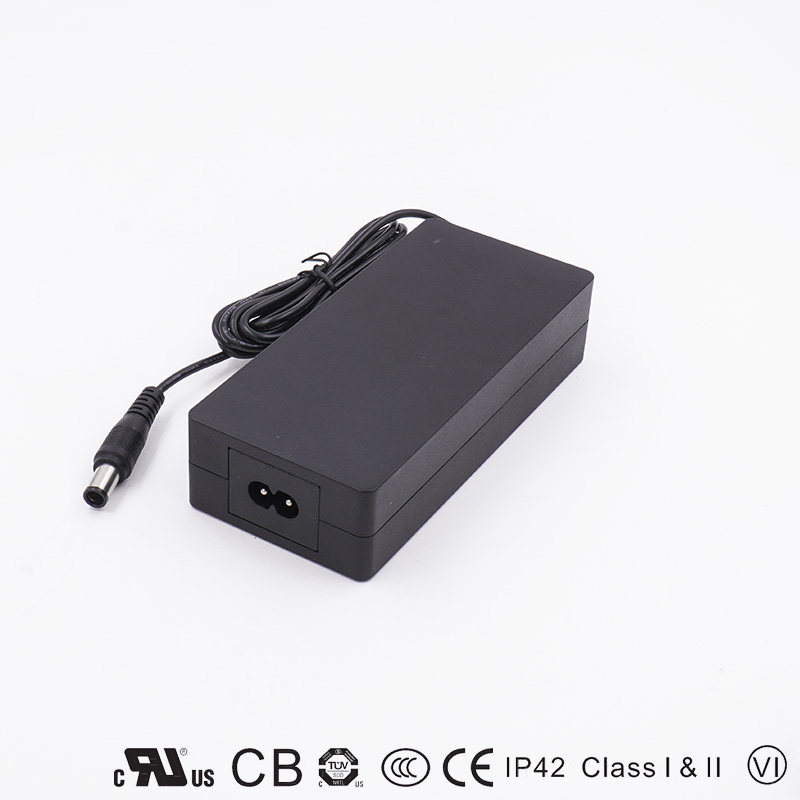

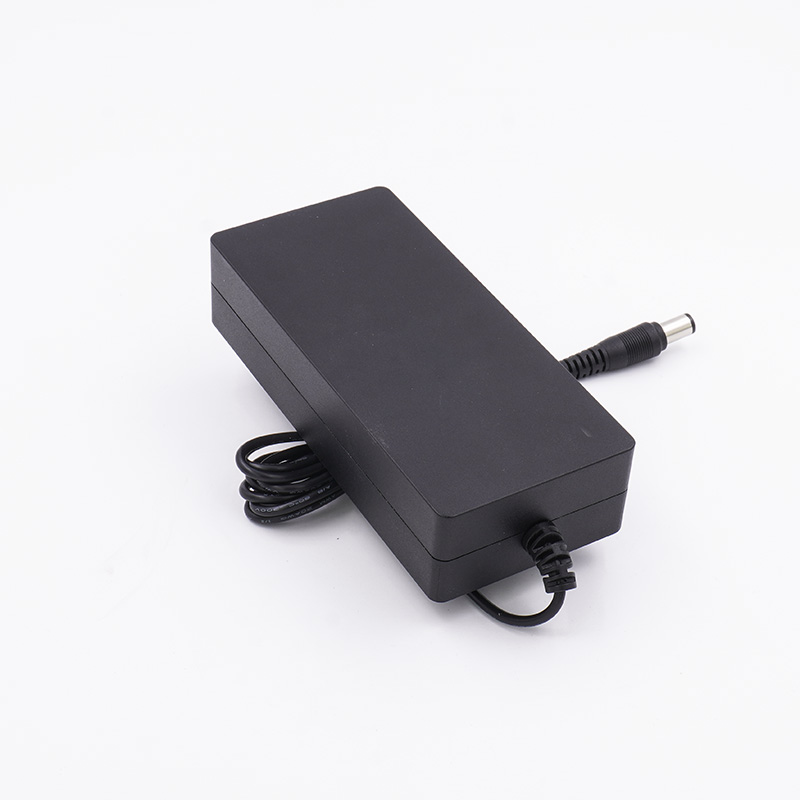

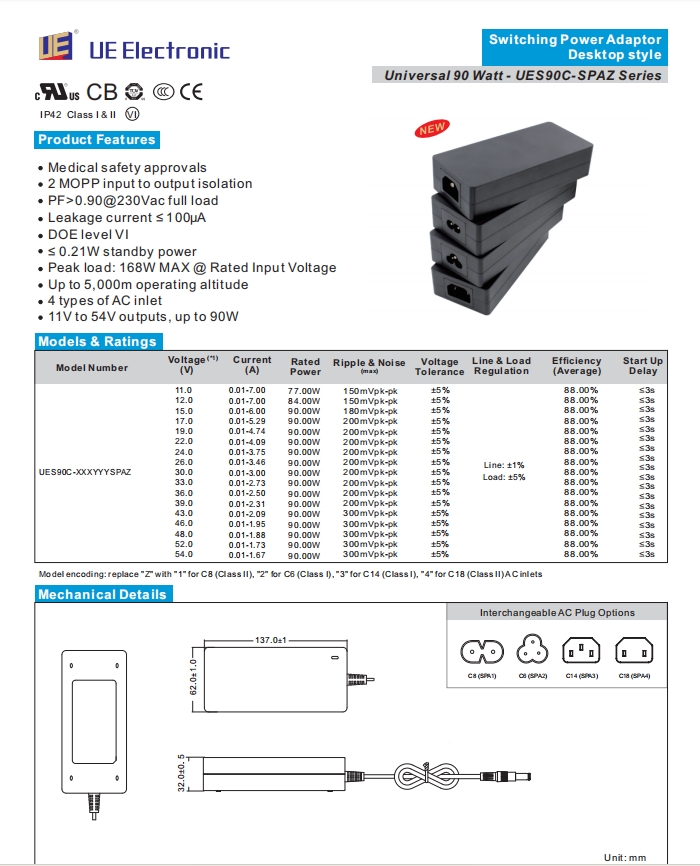

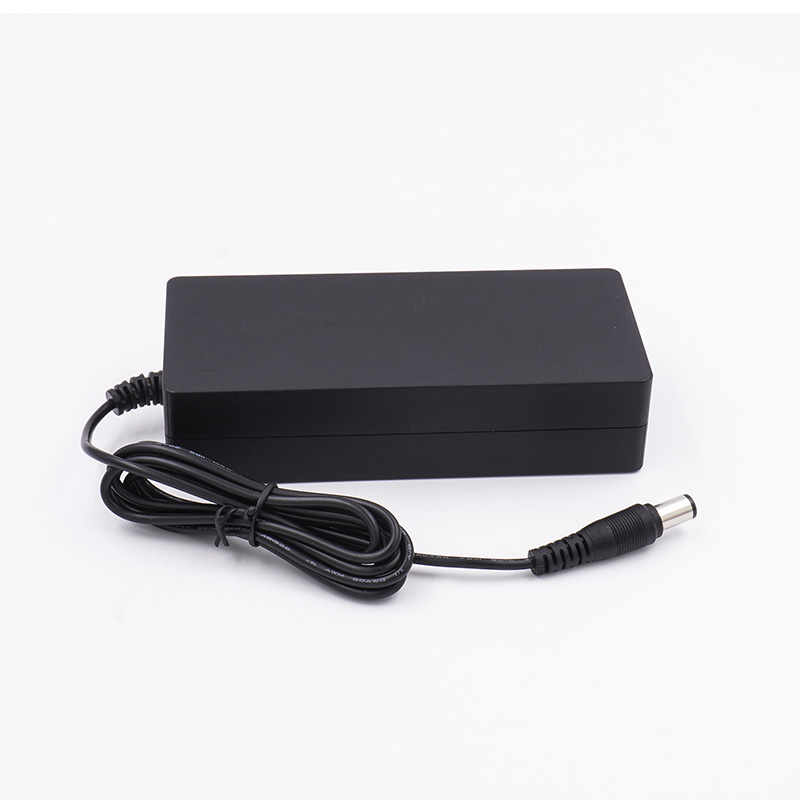

UES90C-SPAZ

•Medical safety approvals

•2 MOPP input to output isolation

•PF>0.90@230Vac full load

•Leakage current ≤ 100μA

•DOE level VI ≤ 0.21W standby power

•Peak load: 168W MAX @ Rated Input Voltage

•Up to 5,000m operating altitude

•4 types of AC inlet 11V to 54V outputs, up to 90W

Model	UES90C-SPAZ	Power	90W
Current	0.01-7.00 A	Output	11.0V
Size	137(L) 62(W) 32(H)mm

Model Number

Voltage (* 1)
(V)

Current
(A)

Rated
Power

Ripple & Noise (max)

Voltage
Tolerance

Line & Load
Regulation

Eﬃciency
(Average)

Start Up Delay

UES90C-SPAZ

11.0

12.0

15.0

17.0

19.0

22.0

24.0

26.0

30.0

33.0

36.0

39.0

43.0

46.0

48.0

52.0

54.0

0.01-7.00

0.01-6.00

0.01-5.29

0.01-4.74

0.01-4.09

0.01-3.75

0.01-3.46

0.01-3.00

0.01-2.73

0.01-2.50

0.01-2.31

0.01-2.09

0.01-1.95

0.01-1.88

0.01-1.73

0.01-1.67

77.00W

84.00W

90.00W

150mVpk-pk

180mVpk-pk

200mVpk-pk

300mVpk-pk

±5%

±5%
±5%

±5%

Line: ±5%
Load : ±5%

88.00 %

≤3s

≤3s
≤3s

≤3s
≤3s ≤3s

≤3s

Environmental

General

Operating Temperature

0℃ to 45℃

Dimensions

137(L) 62(W) 32(H)mm

Storage Temperature

-20℃ to 60℃

Weight

300g

Operating Humidity

10% to 90% RH , non-condensing

MTBF

>100,000hrs MIL-HKBK-217 at 25℃

Storage Humidity

5 % to 90% RH

Operating Altitude

5 ,000m

Protection

Overload
Short Circuit

105-200% rated output power 110-200% rated output voltage No damage

Safety Meet

Safety Agency / Mark

Medical( meet)

ITE( meet)

IEC60601-1

ANSI/AAMIES60601-1 CAN/CSA-C22.2 NO. 60601-1

NRTL

ANSI/AAMIES60601-1 CAN/CSA-C22.2 NO. 60601-1

EN62368-1

CCC

GB4943 . 1

EMC

Emission Medical ITE

Conduction IEC/ EN60601- 1-2 , CISPR 11 -

Radiation IEC/ EN60601- 1-2 , CISPR 11 -

Harmonic Currents EN61000-3-2 , Class A -

Voltage Flicker EN61000-3-3 -

Immunity IEC/ EN60601- 1-2 -

ESD IEC61000-4-2 ±15KV air, ±8KV contact

Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz

EFT/ Burst IEC61000-4-4 ±2KV on AC port

Surge
Conducted Immunity
Magnetic Field

IEC61000-4-5
IEC61000-4-6
IEC61000-4-8

±2KV line to line (DM) ,±4KV line to GND
3Vrms , 6Vrms (0 . 15MHz-80MHz)
30 A/ m

Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT

Others

Dielectric Withstand Voltage
Insulation Resistance

4000VAC input to output
100M Ohms , 500VDC input to output
