| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||

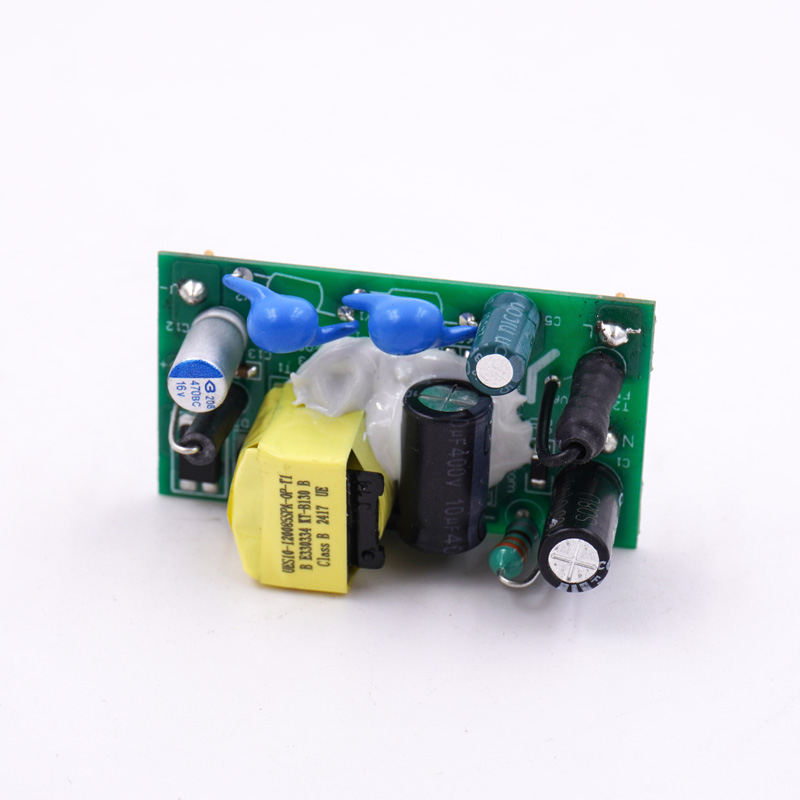

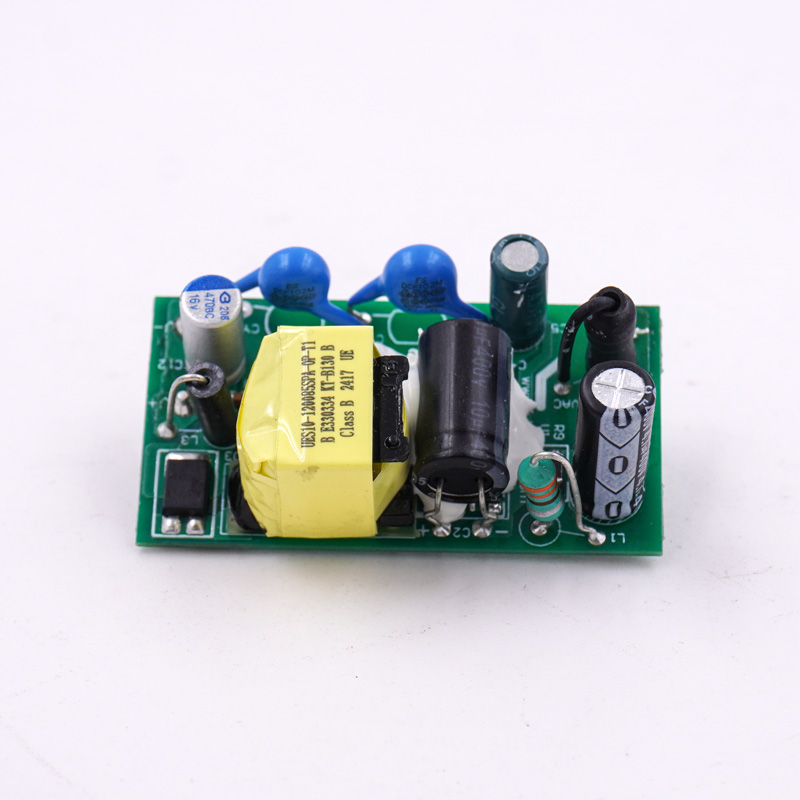

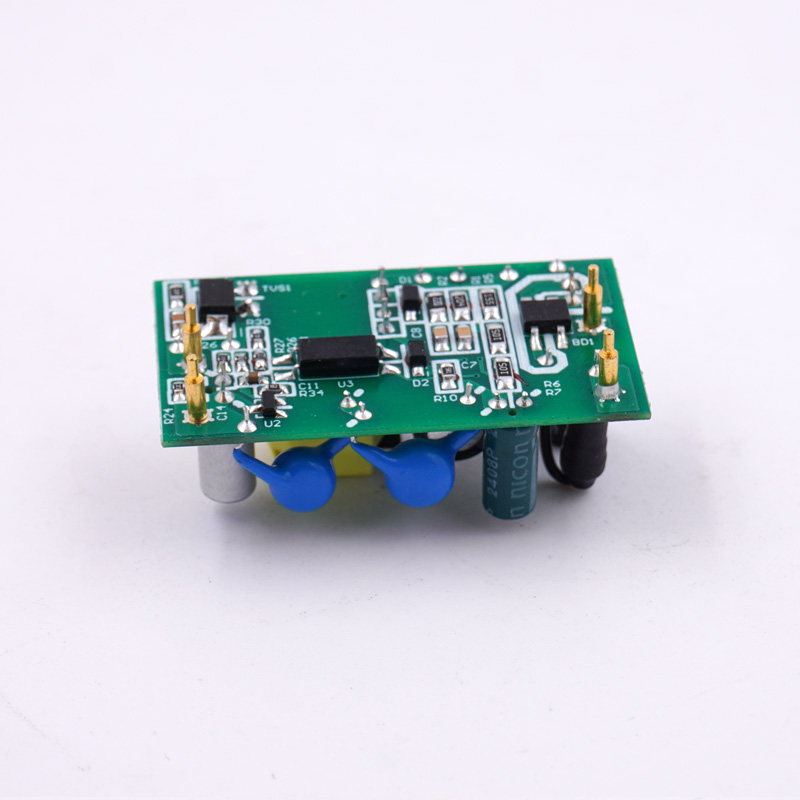

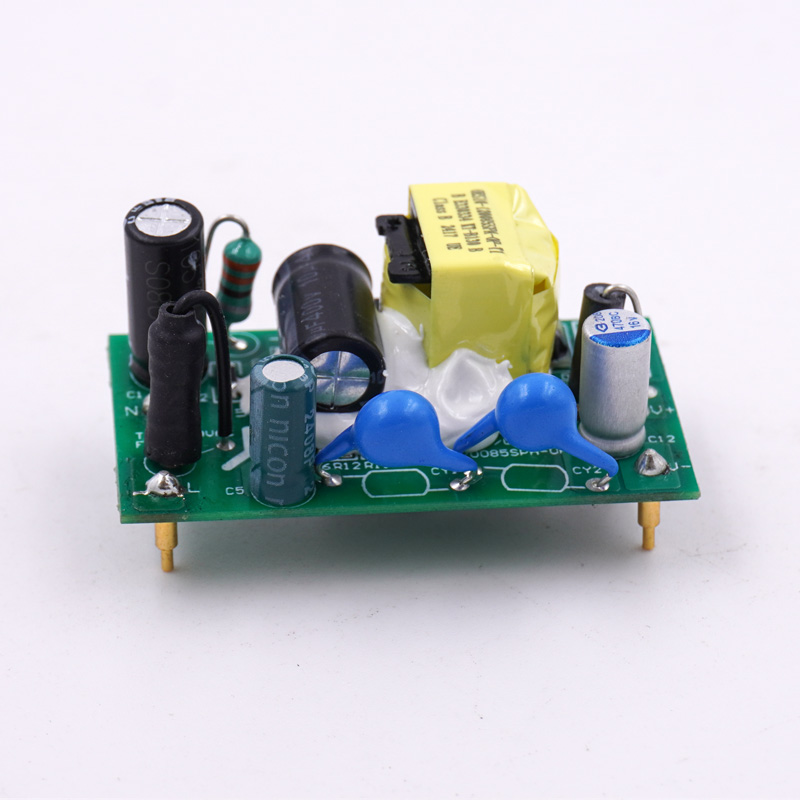

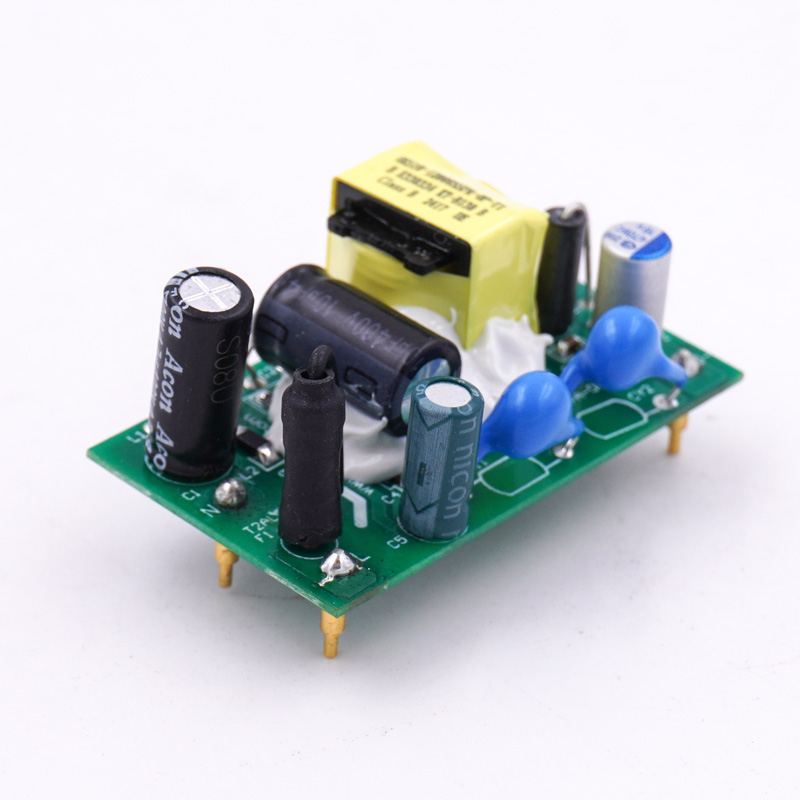

UES12LZ11-SPA | 12 .0 | 0 .01-0.85 | 10 .00W | 150mV | ±2.5% | Line: ±2.5% Load: ±2.5% | 80.0% | ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | -5℃ to 50℃ | Dimensions | 75.7(L) 25.4(W) 21.5(H)mm | |||||||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 18g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >300,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 95% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 110-160% rated output power, auto recovery 120% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | |||||||||||||||
| CB | IEC60601-1 | |||||||||||||||
| TüV-SUD/ Mark | EN60601-1 | |||||||||||||||
| UL | ANSI/AAMI ES60601-1 CAN/CSA-C22.2 NO.60601-1 | |||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±2KV line to line, ±4KV line to GND 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 100M Ohms , 500VDC input to output | |||||||||||||||
