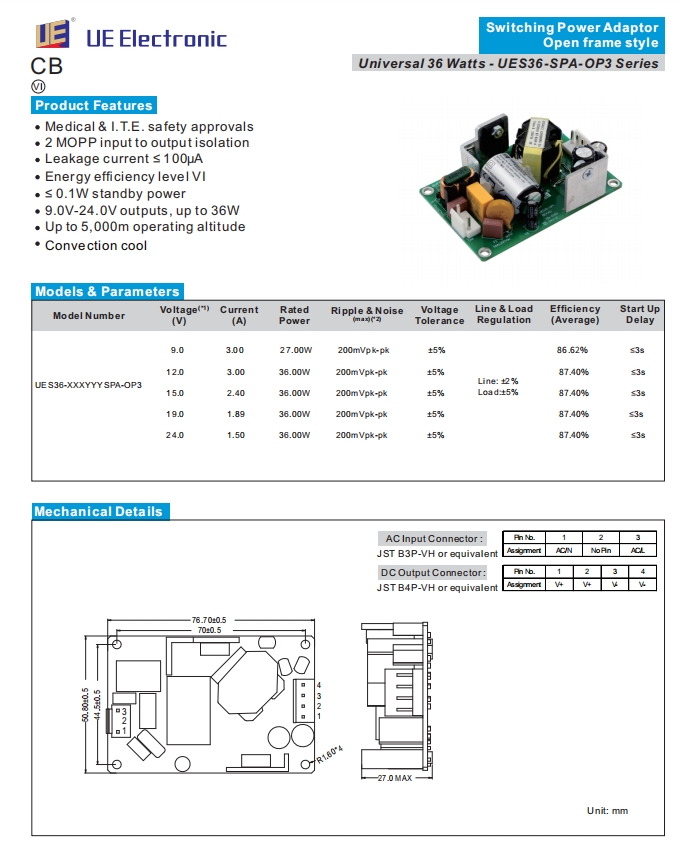

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES36-SPA-OP3 | 9.0 12.0 15.0 19.0 24.0 | 3.00 3.00 2.40 1.89 1.50 | 27.00W 36.00W 36.00W 36.00W 36.00W | 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk | ±5% ±5% ±5% ±5% ±5% | Line: ±2% Load : ±5% | 86.62 % 87.40 % 87.40 % 87.40 % 87.40 % | ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | -10℃ to 50℃ | Dimensions | 76.7(L) 50.8(W) 27(H)mm | |||||||||||||
| Storage Temperature | -20℃ to 80℃ | Weight | 75g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 110-200% rated output power, auto recovery 110-150% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | |||||||||||||||
| CB | IEC60601-1 | |||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 - | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 - | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A - | ||||||||||||||||
| Voltage Flicker EN61000-3-3 - | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 - | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±2KV line to line (DM) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
