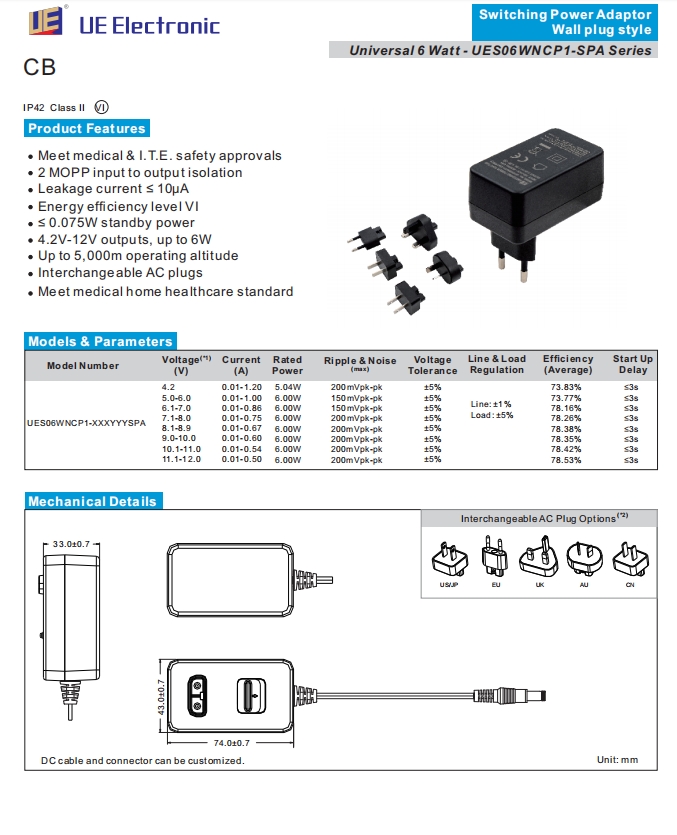

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES06WNCP1-SPA | 4.2 5.0-6.0 6.1-7.0 7.1-8.0 8.1-8.9 9.0-10.0 10.1-11.0 11.1-12.0 | 0.01-1 .20 0.01-1.00 0.01-0.86 0.01-0.75 0.01-0.67 0.01-0.60 0.01-0.54 0.01-0.50 | 5.04W 6.00W 6.00W 6.00W 6.00W 6.00W 6.00W 6.00W | 200mVpk-pk 150mVpk-pk 150mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk | ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load : ±5% | 73.83% 73.77% 78.16% 78.26% 78.38% 78.35% 78.42% 78.53% | ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 45℃ | Dimensions | 74.0(L) 43.0(W) 33.0(H)mm | |||||||||||||
| Storage Temperature | -20℃ to 60℃ | Weight | 85g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 120-150% rated output power, auto recovery 120-150% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1/IEC60601-1-11 | - | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 - | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 - | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A - | ||||||||||||||||
| Voltage Flicker EN61000-3-3 - | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 - | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line (DM) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
