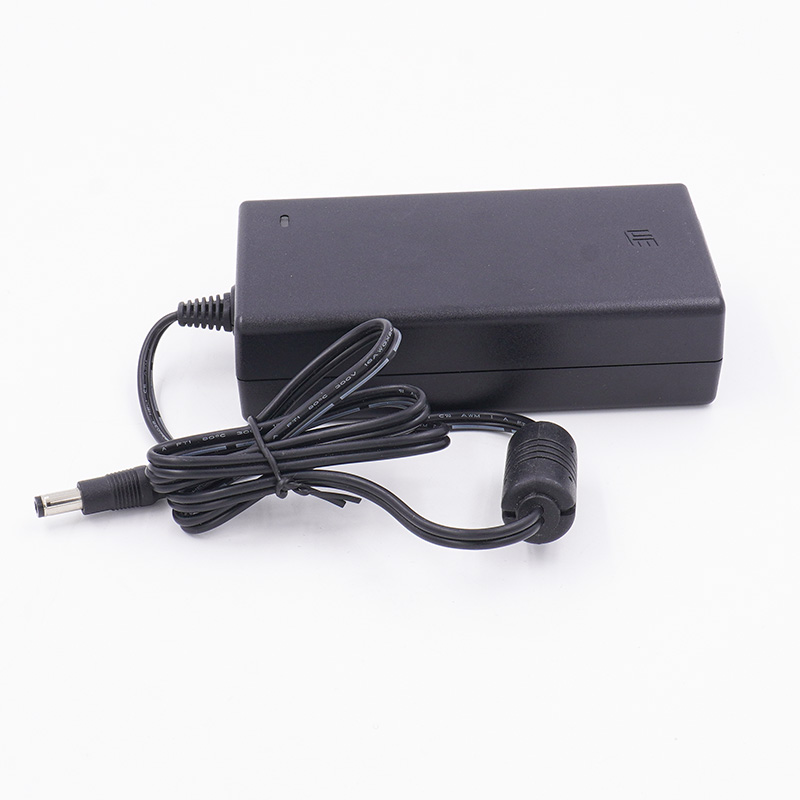

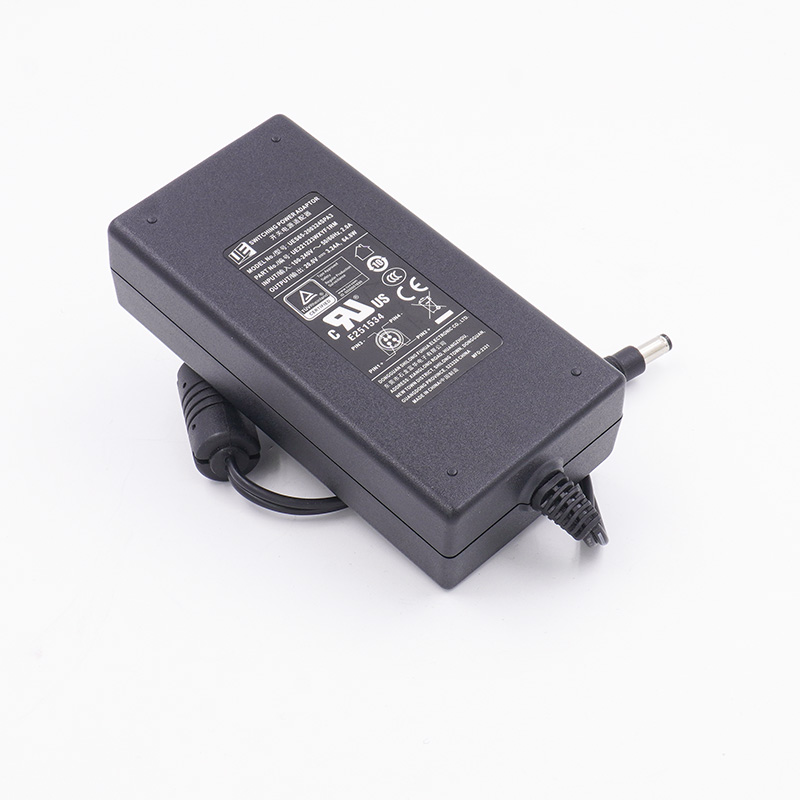

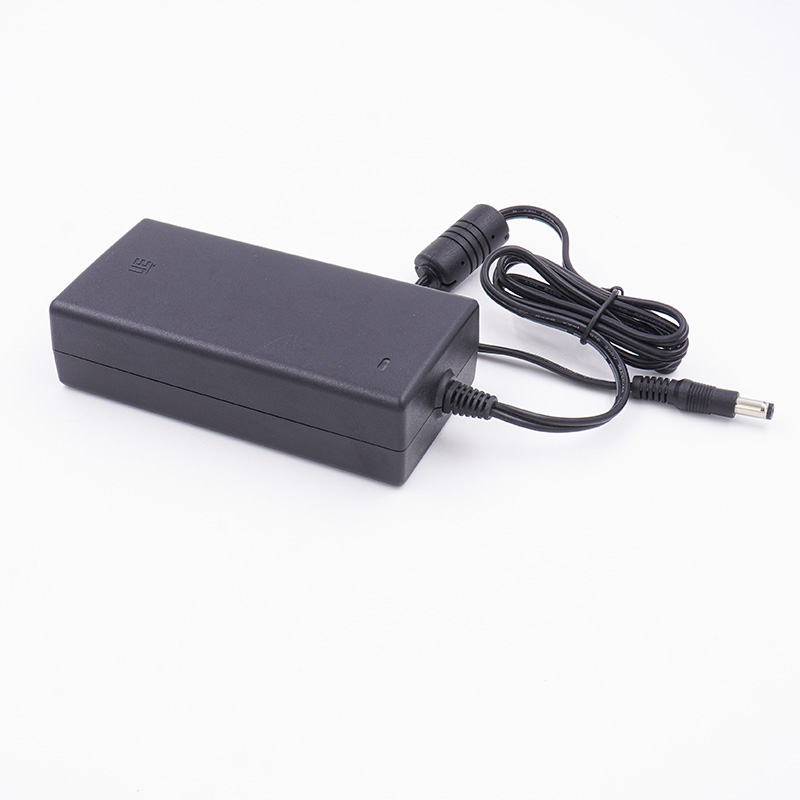

UES65-SPA

•Medical & I.T.E. safety approvals

•2 MOPP input to output isolation

•Leakage current≤ 100μA

•Earth Leakage current ≤ 5mA

•Energy effciency level VI

•≤ 0.15W standby power

•9V-54V outputs, up to 65W

•Up to 5,000m operating altitude

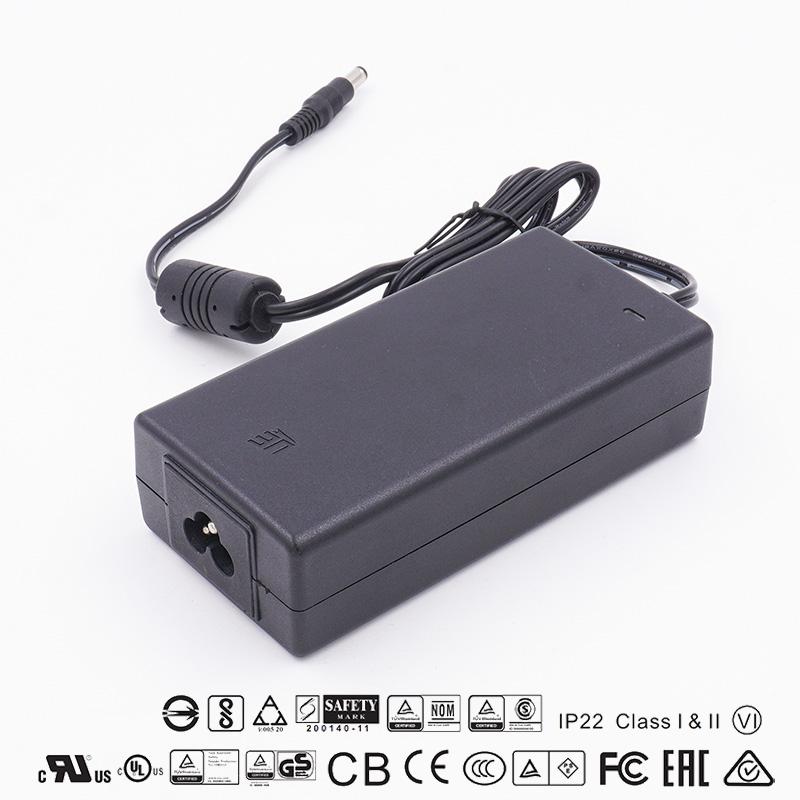

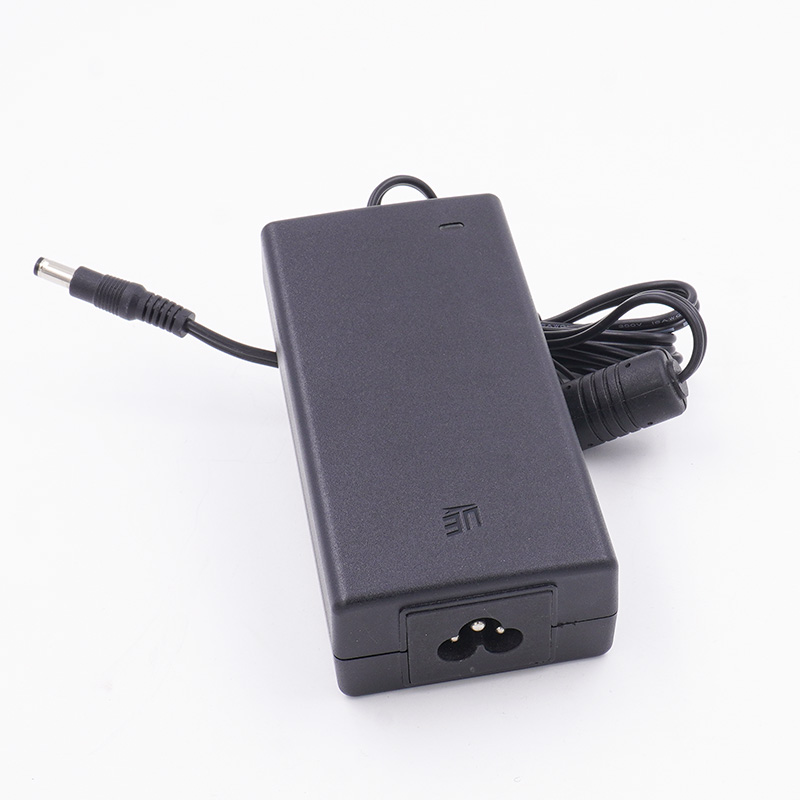

•4 types of AC inlet

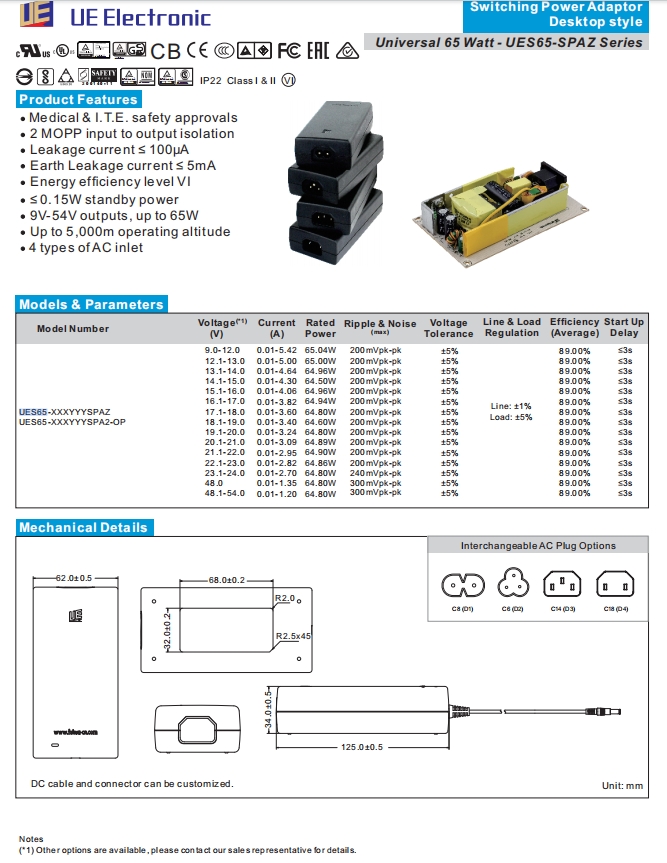

Model	UES65-SPA	Power	65W
Current	0.01-5.42A	Output	9.0-54V
Size	125(L) 62(W) 34(H)mm

Model Number

Voltage (* 1)
(V)

Current
(A)

Rated
Power

Ripple & Noise (max)

Voltage
Tolerance

Line & Load
Regulation

Eﬃciency
(Average)

Start Up Delay

UES65-XXXYYYSPAZ

9.0-12.0

12.1-13.0

13.1-14.0

14.1-15.0

15.1-16.0

16.1-17.0

17.1-18.0

18.1-19.0

19.1-20.0

20.1-21.0

21.1-22.0

22.1-23.0

23.1-24.0

48.0

48.1-54.0

0.01-5.420.01-5.000.01-4.640.01-4.300.01-4.060.01-3.820.01-3.600.01-3.400.01-3.240.01-3.090.01-2.950.01-2.820.01-2.700.01-1.350.01-1.20

65.04W

65.00W

64.96W

64.50W

64.96W

64.94W

64.80W

64.60W

64.80W

64.89W

64.90W

64.86W

64.80W

200mVpk-pk

200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 240mVpk-pk 300mVpk-pk

300mVpk-pk

±5%

Line: ±1%

Load:±5%

89.00%

≤3s

Environmental

General

Operating Temperature

0℃ to 40℃

Dimensions

125(L) 62(W) 34(H)mm

Storage Temperature

-20℃ to 60℃

Weight

315g

Operating Humidity

10% to 90% RH , non-condensing

MTBF

>100,000hrs MIL-HKBK-217 at 25℃

Storage Humidity

5 % to 90% RH

Operating Altitude

5 ,000m

Protection

Overload
Short Circuit

120-200% rated output power, auto recovery 120-200% rated output voltage input to reset Trip and restart (hiccup mode)

Safety Meet

Safety Agency / Mark

Medical( meet)

ITE( meet)

IEC60601-1/IEC60601-1-11

IEC60950-1

IEC62368-1

TüV-SUD/ Mark

EN60601-1/EN60601-1-11

ANSI/AAMI ES60601-1/60601-1-11 CAN/CSA C22.2 NO. 60601-1

UL60950-1

UL62368-1

TüV-SUD/ GS

EN62368-1

RCM

AS/NZS 62368

EN62368

CCC

GB4943.1

PSE

J62368-1

K60950-1

PSB

IEC60950-1

NOM

NOM-001-SCFI-2018

BSMI

CNS14336-1

BIS

IEC60950-1

FCC

FCC PART 15

EMC

Emission Medical ITE

Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32

Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32

Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A

Voltage Flicker EN61000-3-3 EN61000-3-3

Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35

ESD IEC61000-4-2 ±15KV air, ±8KV contact

Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz

EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports

Surge
Conducted Immunity
Magnetic Field

IEC61000-4-5
IEC61000-4-6
IEC61000-4-8

±2KV line to line (DM)
3Vrms , 6Vrms (0 . 15MHz-80MHz)
30 A/ m

Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT

Others

Dielectric Withstand Voltage
Insulation Resistance

4000VAC input to output
10M Ohms , 500VDC input to output
