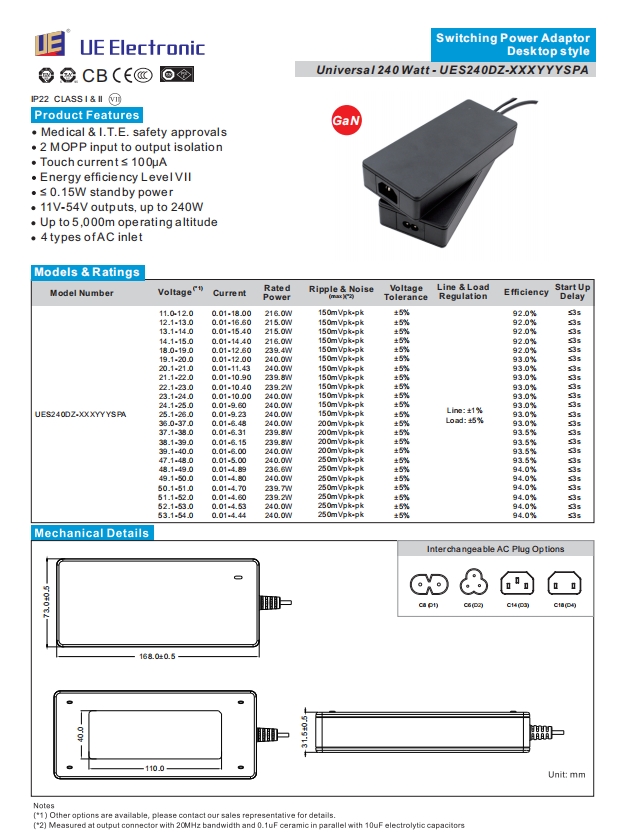

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES240DZ-SPA | 11.0-12.0 12.1-13.0 13.1-14.0 14.1-15.0 18.0-19.0 19.1-20.0 20.1-21.0 21.1-22.0 22.1-23.0 23.1-24.0 24.1-25.0 25.1-26.0 36.0-37.0 37.1-38.0 38.1-39.0 39.1-40.0 47.1-48.0 48.1-49.0 49.1-50.0 50.1-51.0 51.1-52.0 52.1-53.0 53.1-54.0 | 0.01-18.00 0.01-16.60 0.01-15.40 0.01-14.40 0.01-12.60 0.01-12.00 0.01-11.43 0.01-10.90 0.01-10.40 0.01-10.00 0.01-9.60 0.01-9.23 0.01-6.48 0.01-6.31 0.01-6.15 0.01-6.00 0.01-5.00 0.01-4.89 0.01-4.80 0.01-4.70 0.01-4.60 0.01-4.53 0.01-4.44 | 216.0W 215.0W 215.0W 216.0W 239.4W 240.0W 240.0W 239.8W 239.2W 240.0W 240.0W 240.0W 240.0W 239.8W 239.8W 240.0W 240.0W 236.6W 240.0W 239.7W 239.2W 240.0W 240.0W | 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 150mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 250mVpk-pk 250mVpk-pk 250mVpk-pk 250mVpk-pk 250mVpk-pk 250mVpk-pk 250mVpk-pk | ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load:±5% | 92.0% 92.0% 92.0% 92.0% 92.0% 93.0% 93.0% 93.0% 93.0% 93.0% 93.0% 93.0% 93.0% 93.5% 93.5% 93.5% 93.5% 94.0% 94.0% 94.0% 94.0% 94.0% 94.0% | ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | -30℃ to 70℃ | Dimensions | 168.0(L) 73.0(W) 31.5(H)mm | |||||||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 650g | |||||||||||||
| Operating Humidity | 5% to 90% RH , non-condensing | MTBF | >50,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 120-180% rated output power, auto recovery 120-150% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1/IEC60601-1-11 | - | ||||||||||||||
| TüV-SUD/ Mark | EN60601-1/EN60601-1-11 | - | ||||||||||||||
| NRTL | ANSI/AAMI ES60601-1/60601-1-11 CAN/CSA C22.2 NO. 60601-1 | - | ||||||||||||||
| CE | - | EN62368 | ||||||||||||||
| CCC | - | GB4943.1 | ||||||||||||||
| PSE | - | J62368-1 | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line, ±2KV/ Line-Earth 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 100M Ohms , 500VDC input to output | |||||||||||||||
