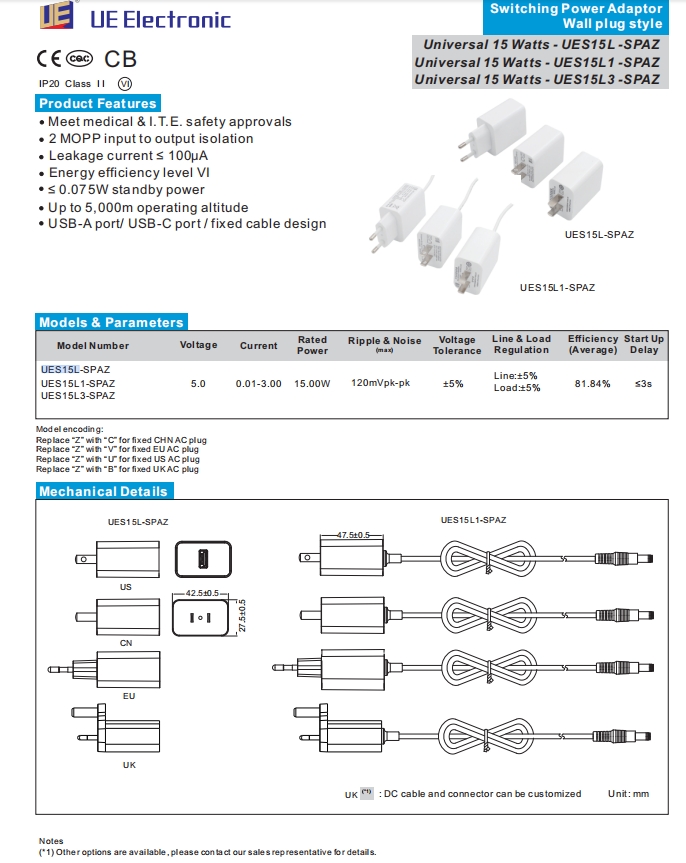

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES15L-SPAZ | 5.0 | 0.01-3.00 | 15.0W | 120mVpk-pk | ±5% | Line: ±1% Load:±5% | 81.84% | ≤3s | |||||||||||||
Model encoding:
Replace “Z” with “C” for fixed CHN AC plug
Replace “Z” with “V” for fixed EU AC plug
Replace “Z” with “U” for fixed US AC plug
Replace “Z” with “B” for fixed UK AC plug
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 47.5(L) 42.5(W) 27.5(H)mm | |||||||||||||
| Storage Temperature | -20℃ to 60℃ | Weight | 50g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >10,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 200%max , auto recovery 150%max , auto recovery Auto recovery | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1 | - | ||||||||||||||
| CE | - | EN62368-1 | ||||||||||||||
| CQC | GB9706.1 | - | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line (DM) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
