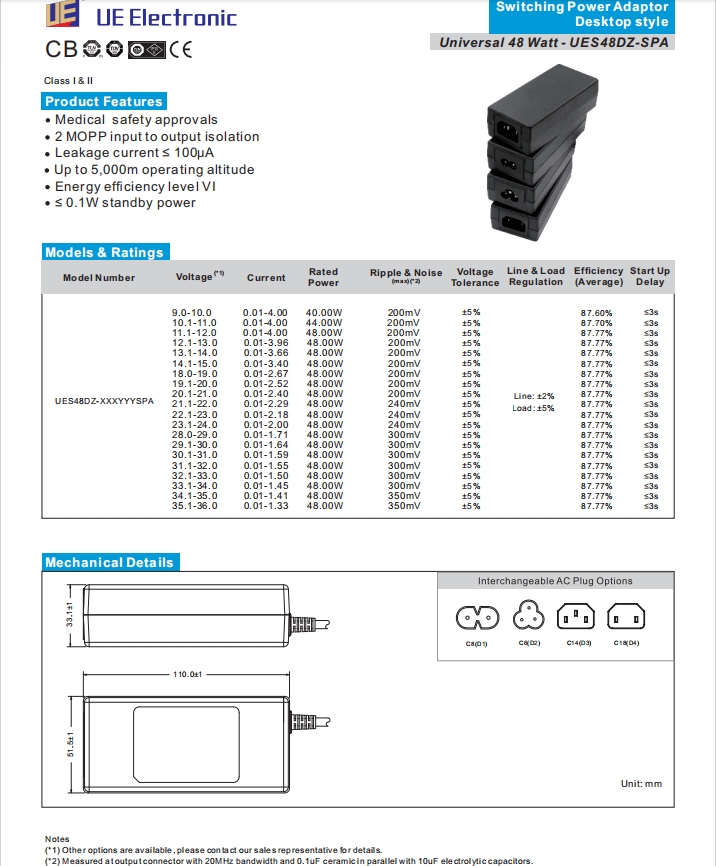

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES48DZ-SPA | 9.0-10.0 10.1-11.0 11.1-12.0 12.1-13.0 13.1-14.0 14.1-15.0 18.1-19.0 19.1-20.0 20.1-21.0 21.1-22.0 22.1-23.0 23.1-24.0 28.0-29.0 29.1-30.0 31.1-32.0 32.1-33.0 33.1-34.0 34.1-35.0 35.1-36.0 | 0.01-4.00 0.01-4.00 0.01-4.00 0.01-3.96 0.01-3.66 0.01-3.40 0.01-2.67 0.01-2.52 0.01-2.40 0.01-2.29 0.01-2.18 0.01-2.00 0.01-1.71 0.01-1.64 0.01-1.59 0.01-1.55 0.01-1.45 0.01-1.41 0.01-1.33 | 40.00W 44.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W 48.00W | 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 240mVpk-pk 240mVpk-pk 240mVpk-pk 300mVpk-pk 300mVpk-pk 300mVpk-pk 300mVpk-pk 300mVpk-pk 300mVpk-pk 300mVpk-pk | ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% | Line: ±2% Load:±5% | 87.60% 87.70% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% 87.77% | ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 110.0(L) 51.5(W) 33.1(H)mm | |||||||||||||
| Storage Temperature | -40℃ to 80℃ | Weight | 205g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >100,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 90% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 110-160% rated output power, auto recovery Min 120 rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||

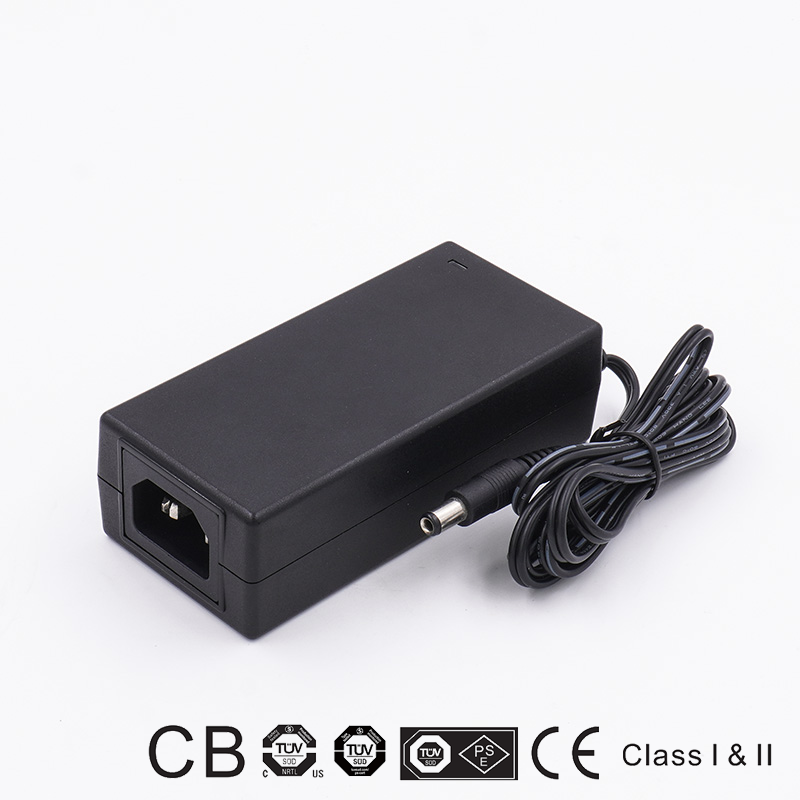

| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1 | - | ||||||||||||||
| TüV-SUD/ Mark | EN60601-1 ANSI/AAMI ES60601-1 | - | ||||||||||||||
| CE | - | EN62368-1 | ||||||||||||||
| Tuv SuD PSE | - | J62368-1 | ||||||||||||||
| Tuv SuD NRTL | CAN/CSA C22.2 NO.60601-1 | K60950-1 | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±2KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line, ±2 KV line to GND 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 10M Ohms , 500VDC input to output | |||||||||||||||
