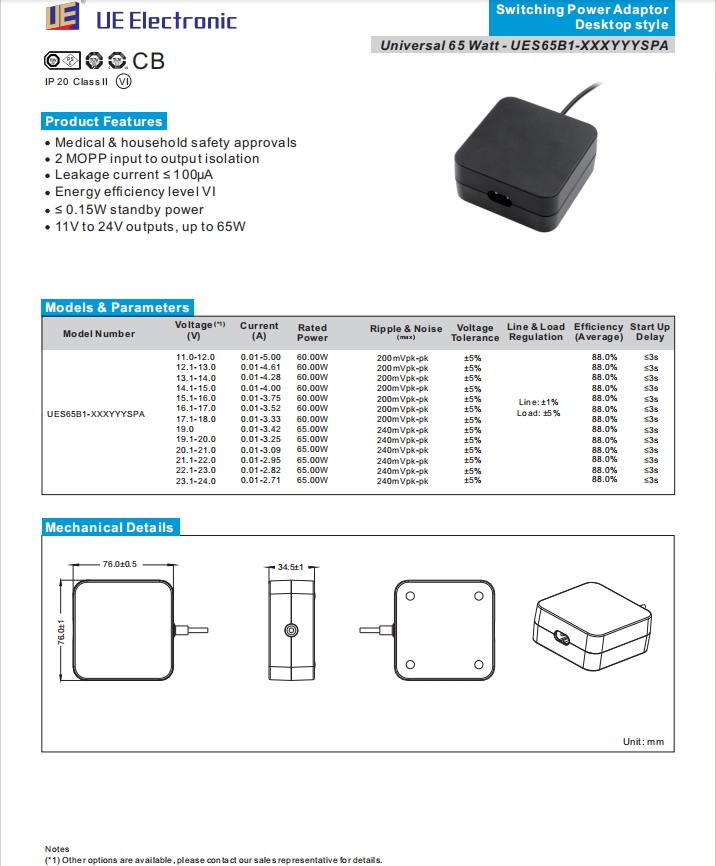

| Model Number | Voltage (* 1) (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay | |||||||||||||
UES65B1-SPA | 11.0-12.0 12.1-13.0 13.1-14.0 14.1-15.0 15.1-16.0 16.1-17.0 17.1-18.0 19.0 19.1-20.0 20.1-21.0 21.1-22.0 22.1-23.0 23.1-24.0 | 0.01-5.00 0.01-4.61 0.01-4.28 0.01-4.00 0.01-3.75 0.01-3.52 0.01-3.33 0.01-3.42 0.01-3.25 0.01-3.09 0.01-2.95 0.01-2.82 0.01-2.71 | 60.0W 60.0W 60.0W 60.0W 60.0W 60.0W 60.0W 65.0W 65.0W 65.0W 65.0W 65.0W 65.0W | 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 200mVpk-pk 240mVpk-pk 240mVpk-pk 240mVpk-pk 240mVpk-pk 240mVpk-pk 240mVpk-pk | ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% | Line: ±1% Load:±5% | 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% 88.0% | ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s ≤3s | |||||||||||||
| Environmental | General | |||||||||||||||
| Operating Temperature | 0℃ to 40℃ | Dimensions | 76.0(L) 76.0(W) 34.5(H)mm | |||||||||||||
| Storage Temperature | -20℃ to 60℃ | Weight | 260g | |||||||||||||
| Operating Humidity | 10% to 90% RH , non-condensing | MTBF | >50,000hrs MIL-HKBK-217 at 25℃ | |||||||||||||
| Storage Humidity | 5 % to 95% RH | |||||||||||||||
| Operating Altitude | 5 ,000m | |||||||||||||||
| Protection | ||||||||||||||||
| Overload Short Circuit | 110-220% rated output power, auto recovery 110-150% rated output voltage input to reset Trip and restart (hiccup mode) | |||||||||||||||
| Safety Meet | ||||||||||||||||
| Safety Agency / Mark | Medical( meet) | ITE( meet) | ||||||||||||||
| CB | IEC60601-1 | IEC61558-1 | ||||||||||||||
| PSE | - | J61558-1 | ||||||||||||||
| TUV-SUD/MARK | EN60601-1 | - | ||||||||||||||
| NRTL | ANSI/AAMI ES60601-1 CAN/CSA C22.2 NO.60601-1 | - | ||||||||||||||
| EMC | ||||||||||||||||
| Emission Medical ITE | ||||||||||||||||
| Conduction IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Radiation IEC/ EN60601- 1-2 , CISPR 11 EN55032 , CISPR 32 | ||||||||||||||||
| Harmonic Currents EN61000-3-2 , Class A EN61000-3-2 , Class A | ||||||||||||||||
| Voltage Flicker EN61000-3-3 EN61000-3-3 | ||||||||||||||||
| Immunity IEC/ EN60601- 1-2 EN55035 , CISPR 35 | ||||||||||||||||
| ESD IEC61000-4-2 ±15KV air, ±8KV contact | ||||||||||||||||
| Radiated Immunity IEC61000-4-3 10V/m ,3V/ m 80MHz - 2 .7GMHz | ||||||||||||||||
| EFT/ Burst IEC61000-4-4 ±1KV on AC port , ±1KV on signal ports | ||||||||||||||||
| Surge Conducted Immunity Magnetic Field | IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 | ±1KV line to line (DM) 3Vrms , 6Vrms (0 . 15MHz-80MHz) 30 A/ m | ||||||||||||||
| Dips & Interruptions IEC61000-4- 11 0 % , 70% , 0 % of UT | ||||||||||||||||
| Others | ||||||||||||||||
| Dielectric Withstand Voltage Insulation Resistance | 4000VAC input to output 100M Ohms , 500VDC input to output | |||||||||||||||
